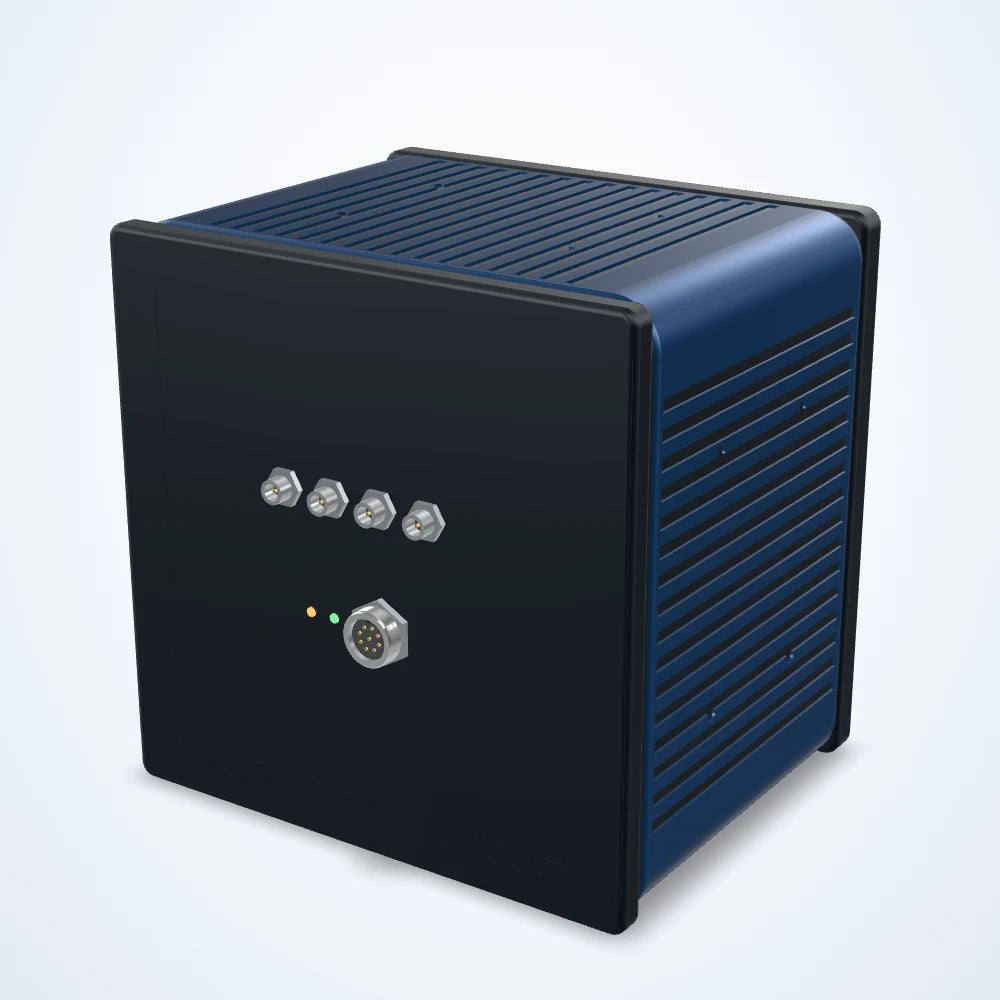

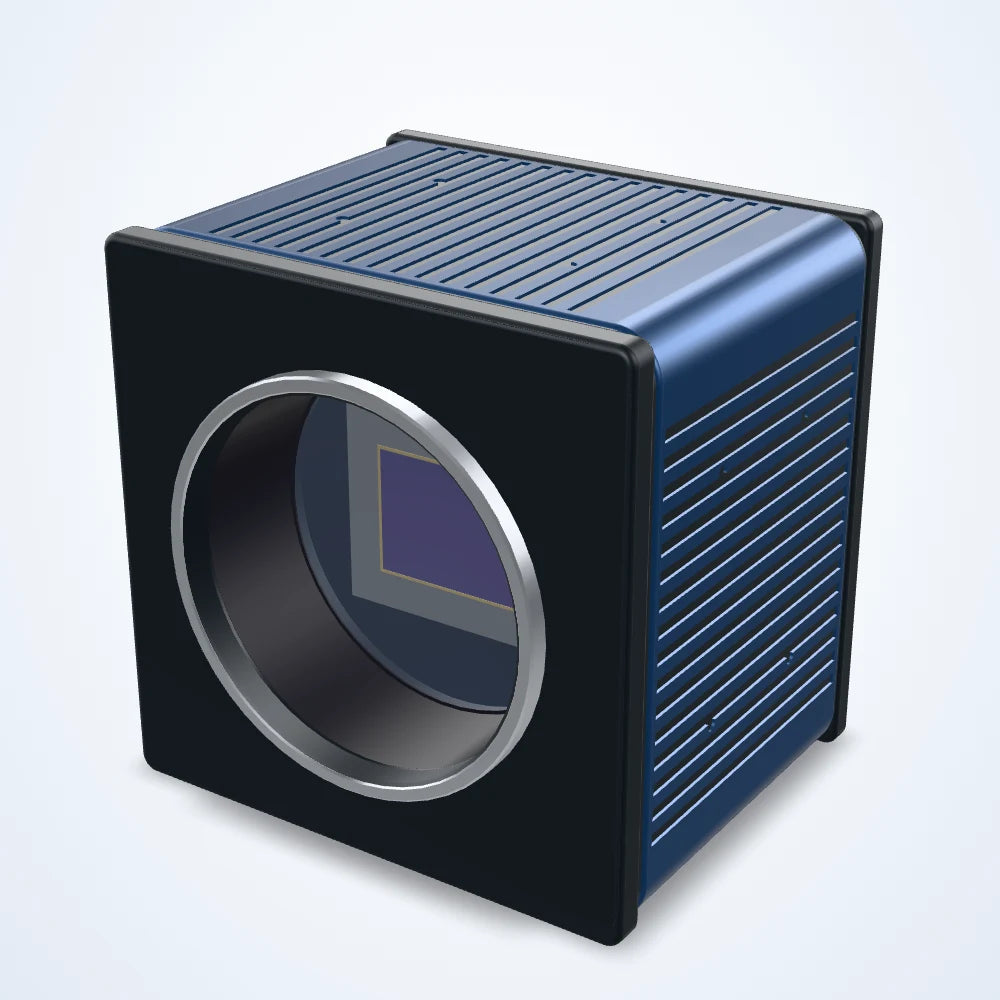

245.8 MP CoaXPress area scan camera, IMX811, rolling shutter, 12 fps, M72

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

245.8 MP CoaXPress area scan camera, IMX811, rolling shutter, 12 fps, M72 (LS-CMR-0239)

Model LS-CMR-0239

Resolution19200 × 12800
SensorSony IMX811 CMOS (64.84 mm)
InterfaceCoaXPress-12 (CXP-12)
Speed12.4 fps
Lens mountM72
Pixel size2.81 × 2.81 μm

$30,250.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

3.0 kg shipping weight

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

245.8 MP area scan camera for inspection, measurement and guidance on the production line. IMX811 sensor; 19200 x 12800 pixels of 2.81 μm; up to 12 frames per second; rolling shutter; CoaXPress interface; M72 lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0239
ROI	Supported
SPC	Supported
Standard Lens	Telecentric Lens
Not suitable for measurement	Designed for precision metrology

Optics

Magnification changes with distance	Constant magnification

Sensor and imaging

Sensor model	IMX811
Resolution	19200 × 12800
Max. frame rate	12.4 fps
Sensor type	Sony IMX811 CMOS (64.84 mm)
Pixel size	2.81 × 2.81 μm
Pixel bit depth	12-bit
Shutter	Rolling Shutter
SNR	44.07 dB
Dynamic range	71.7 dB
Exposure time	62 μs – 60 s

Interfaces and I/O

Data interface	CoaXPress-12 (CXP-12)

Electrical

Power consumption	30 W

Mechanical

Lens mount	M72 × 0.75
Shipping weight	3.00 kg
