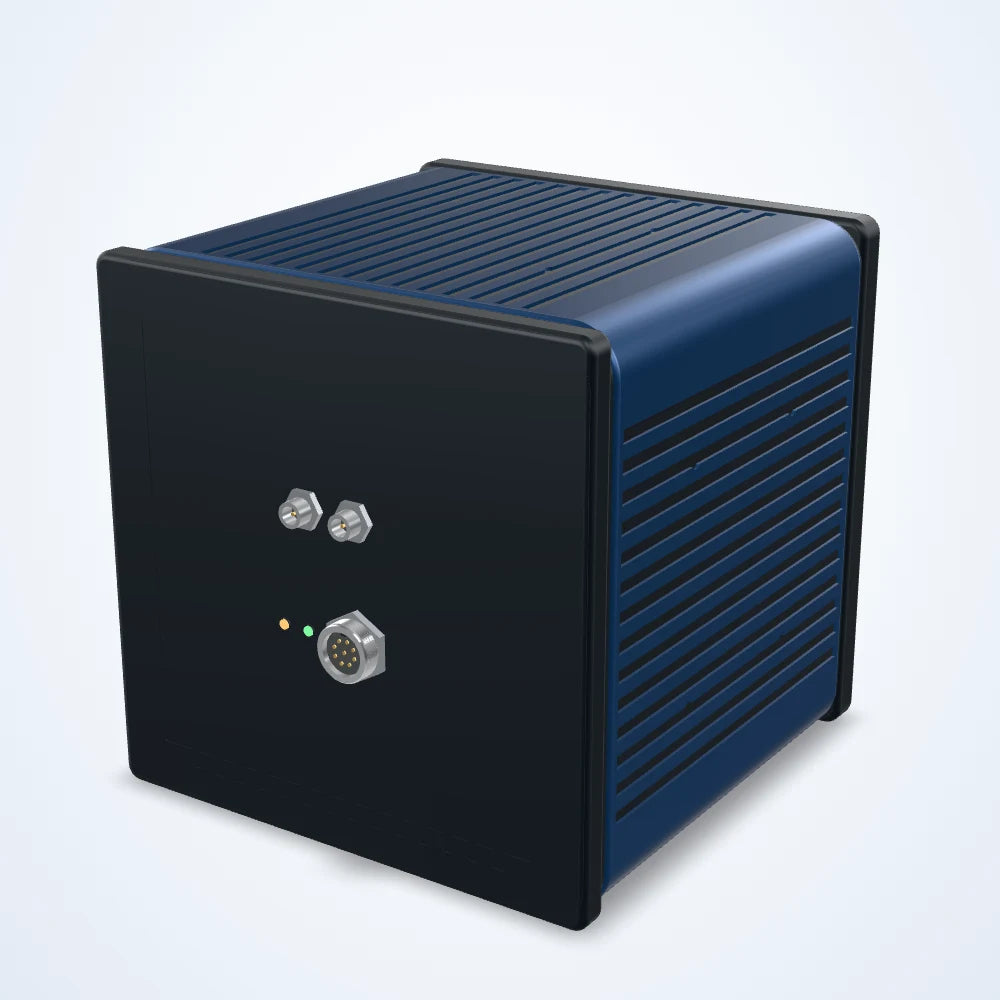

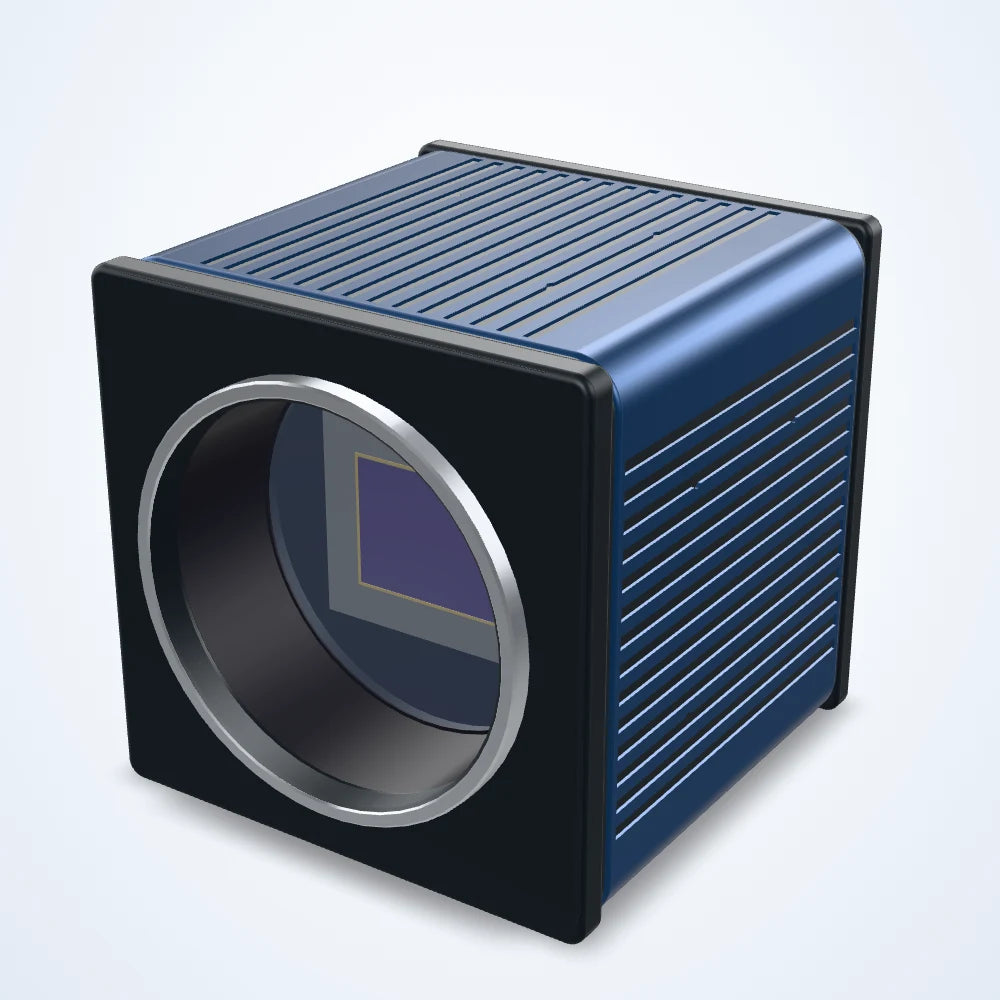

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

604 MP CoaXPress area scan camera, IMX411, rolling shutter, 1.4 fps, M72 (LS-CMR-0240)

Model LS-CMR-0240

  • Resolution28416 × 21280
  • Sensor66.7 mm
  • InterfaceCoaXPress(DIN port)
  • Speed1.45 fps
  • Lens mountM72
  • Pixel size3.76 × 3.76 μm
$35,300.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 3-4 weeks

2.0 kg shipping weight

OptionMono

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

604 MP CoaXPress area scan camera, IMX411, rolling shutter, 1.4 fps, M72 (LS-CMR-0240)LS-CMR-0240

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

604 MP area scan camera for inspection, measurement and guidance on the production line. IMX411 CMOS sensor; up to 1.4 frames per second; rolling shutter; CoaXPress interface; M72 lens mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0240

Sensor and imaging

Sensor size66.7 mm
Resolution28416 × 21280
Pixel size3.76 × 3.76 μm
Max. frame rate1.45 fps
Sensor makeSony
Sensor modelIMX411
ShutterRolling Shutter
Sensor typeCMOS
Dynamic range>78 dB
Pixel bit depth12 bit / 16 bit
SNR46.4 dB

Interfaces and I/O

Data interfaceCoaXPress(DIN port)
Digital I/OOpto-isolated input x 1, opto-isolated output x 1, bi-directional custom non-isolated I/O x 1,RS232 x 1

Environment and compliance

Operating temperature-30~70 °C ( Storage ), 0~50° C ( Working )
CertificationCoaXPress, GenICam

Computing

Operating systemWindows

Electrical

Trigger modeSoft Trigger,Hardware Trigger,Free Run Mode
Power supplyDC 24 V

Mechanical

Dimensions100 × 100 × 100 mm
Lens mountM72, BFL 19.55 mm
Weight1400g
