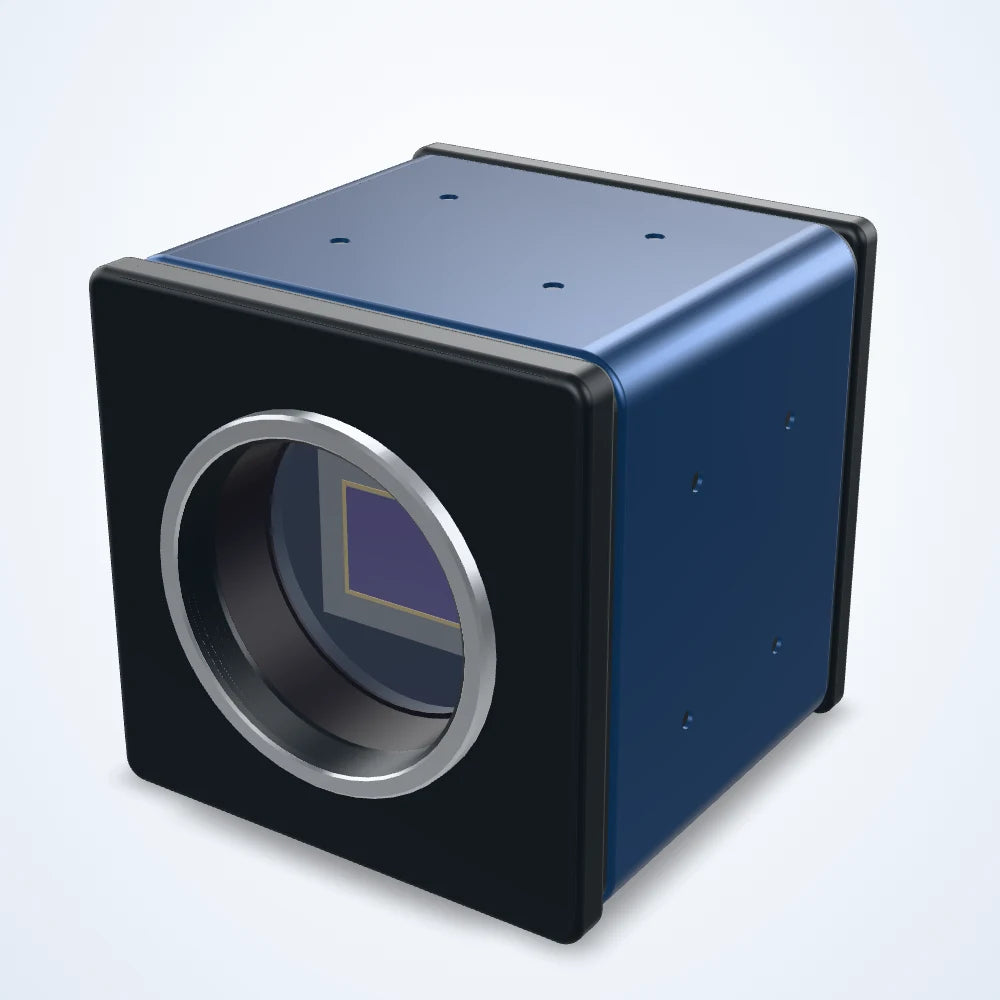

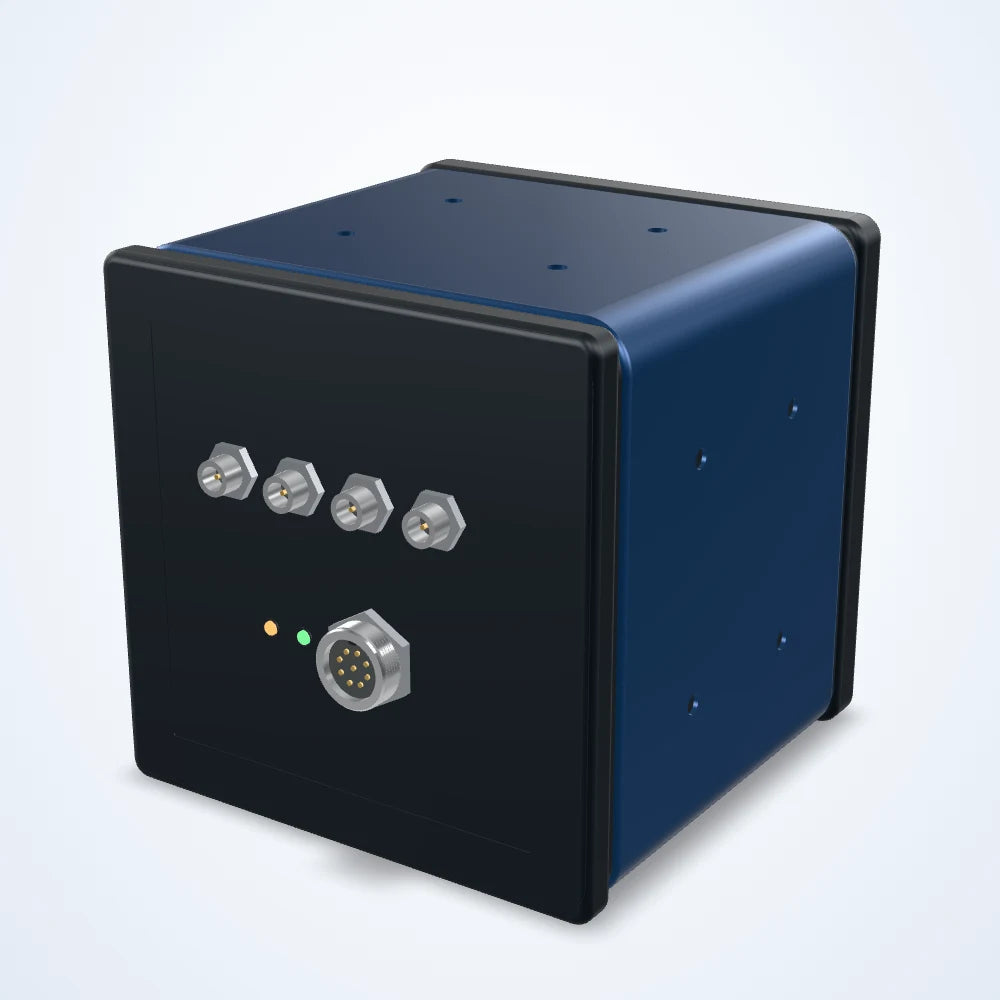

CoaXPress area scan camera CMV12000 global shutter (series view)

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

12.6 MP CoaXPress area scan camera, CMV12000, global shutter, 188 fps, M42 (LS-CMR-0205)

Model LS-CMR-0205

Resolution4096 x 3072
Sensor22.5x16.9 mm
InterfaceCoaxPress
Speed188 fps
Lens mountM42
Pixel size5.5 μm x 5.5 μm

$3,850.00

Ships in 3-4 weeks

1.09 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

12.6 MP area scan camera for inspection, measurement and guidance on the production line. CMV12000 CMOS sensor; 4096 x 3072 pixels of 5.5 μm; up to 188 frames per second; global shutter; CoaXPress interface; M42 lens mount; mono or colour version.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0205

Sensor and imaging

Sensor size	22.5x16.9 mm
Resolution	4096 x 3072
Pixel size	5.5 μm x 5.5 μm
Max. frame rate	188 fps
Sensor make	Cmosis
Sensor model	CMV12000
Shutter	Global Shutter
Sensor type	CMOS
Dynamic range	60 dB
Pixel bit depth	12 bit
SNR	>41 dB

Interfaces and I/O

Data interface	CoaxPress
Digital I/O	6-pin Hirose interface: Configurable input and output x 3

Environment and compliance

Operating temperature	-30 - 50°C(Working), -30 - 80°C(Storage)
Certification	CoaXPress, GenICam

Computing

Operating system	Windows

Electrical

Trigger mode	Soft Trigger,Hardware Trigger,Free Run Mode
Power supply	PoCXP / DC 24 V
Power consumption	24 V@≈15 W

Mechanical

Dimensions	72.0 × 72.0 × 72.0 mm (720g)
Lens mount	F-Mount, M42-mount, M58-mount
Mounting holes	4-M5; 14-M5
Shipping weight	1.09 kg
