26.2 MP CoaXPress area scan camera, GMAX0505, 1.1" global shutter, 42 fps
  • 26.2 MP CoaXPress area scan camera, GMAX0505, 1.1" global shutter, 42 fps
  • 26.2 MP CoaXPress area scan camera, GMAX0505, 1.1" global shutter, 42 fps
  • 26.2 MP CoaXPress area scan camera, GMAX0505, 1.1" global shutter, 42 fps

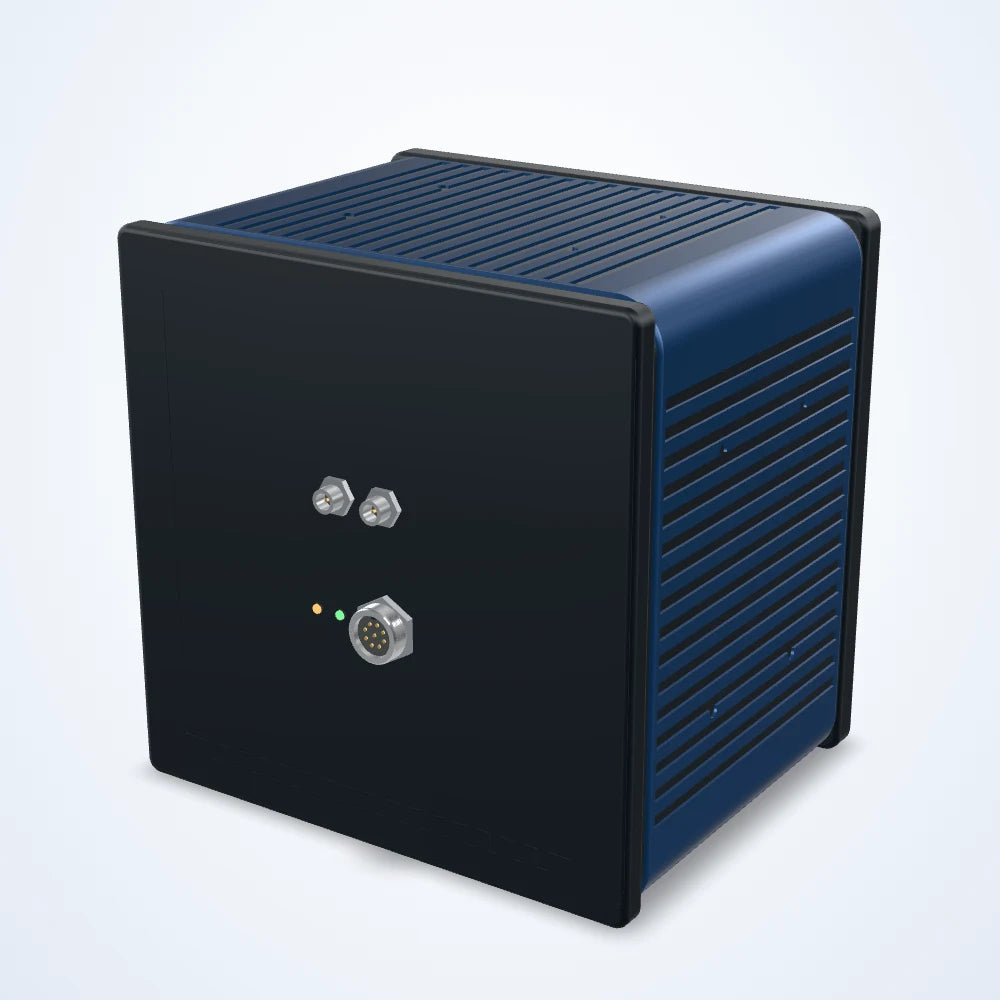

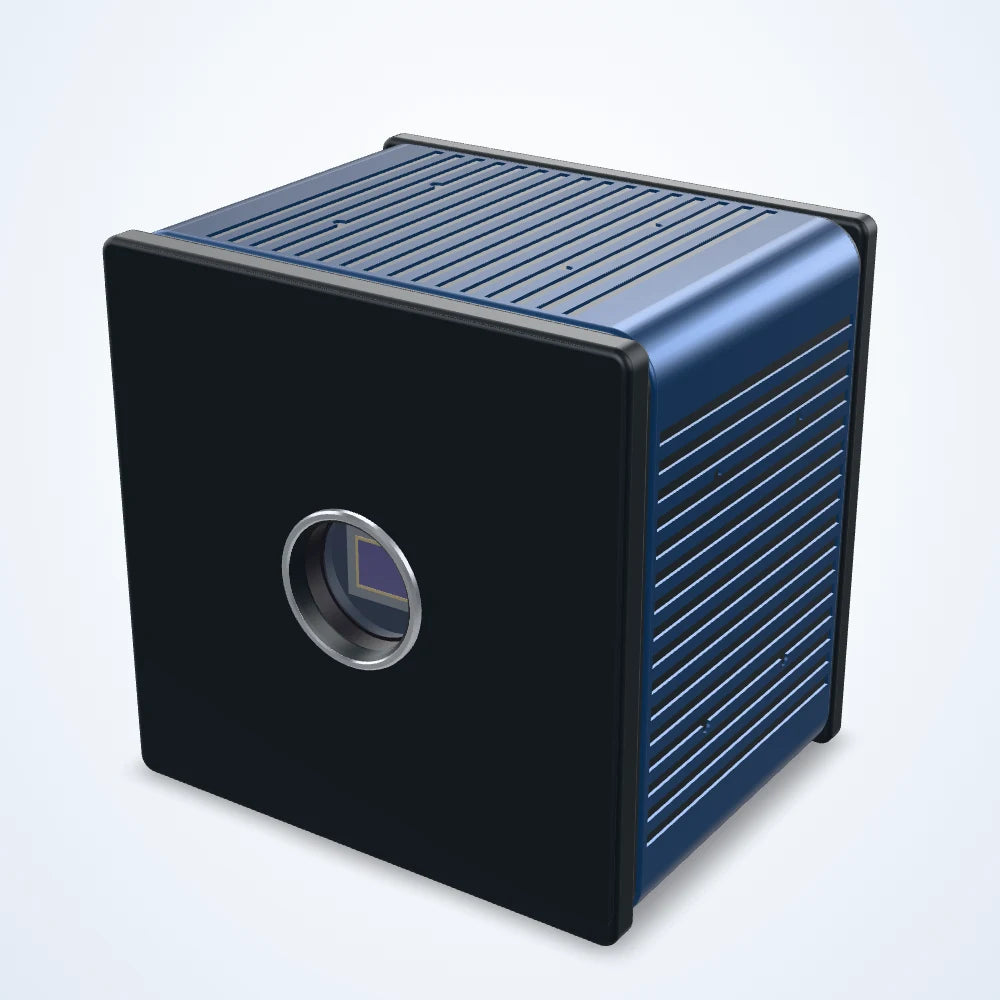

Rendered illustration: the actual product may differ in appearance.

Area scan cameras

26.2 MP CoaXPress area scan camera, GMAX0505, 1.1" global shutter, 42 fps (LS-CMR-0221)

Model LS-CMR-0221

  • Resolution5120 × 5120 (25MP)
  • Sensor1.1"
  • InterfaceCoaXPress
  • Speed41.8 fps
  • Lens mountC-mount
  • Pixel size2.5 μm
$2,089.00

Ships in 3-4 weeks

2.0 kg shipping weight

Option

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

26.2 MP CoaXPress area scan camera, GMAX0505, 1.1" global shutter, 42 fps (LS-CMR-0221)LS-CMR-0221

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

26.2 MP area scan camera for inspection, measurement and guidance on the production line. GMAX0505 sensor (1.1"); 5120 x 5120 pixels of 2.5 μm; up to 42 frames per second; global shutter; CoaXPress interface; mono or colour version.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CMR-0221

Sensor and imaging

Sensor modelGpixel GMAX0505
Resolution5120 × 5120 (25MP)
Max. frame rate41.8 fps
Pixel size2.5 μm
Sensor size1.1"
ShutterGlobal
Pixel bit depth12-bit
Sensor makeGPixel
Sensor typeCMOS
Dynamic range63.0 dB
SNR36 dB

Interfaces and I/O

Data interfaceCoaXPress
Digital I/O1× Opto-isolated input, 1× Opto-isolated output, 1× configurable input and output

Environment and compliance

Operating temperature-30 - 50°C(Operating), -30 - 80°C(Storage)
CertificationCoaxPress and GenICam

Computing

Operating systemWindows

Electrical

OutputMono / Color
Trigger mode● Soft Trigger ● Hardware Trigger ● Free Run
Power supply24 VDC / PoCXP
Power consumption24 V@ ≈7.3 W

Mechanical

Dimensions50 mm × 50 mm × 45 mm
Lens mountC-mount
Mounting holes8-M5X6
Shipping weight2.00 kg
