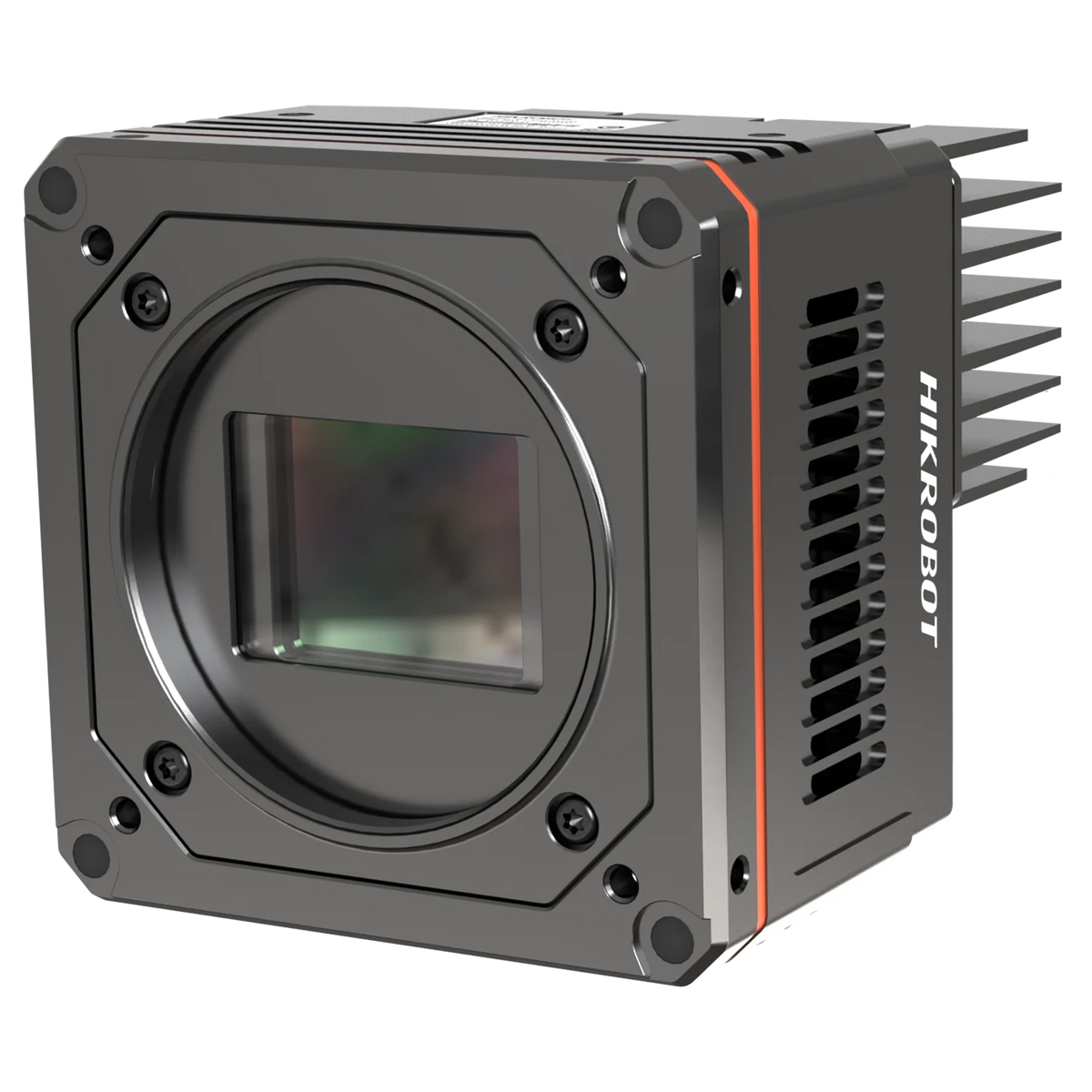

Hikrobot MV-CH250-20XC-M58S-NN 25 MP CoaXPress area scan camera, PYTHON25K, CXP-6 interface, Color, M58 connector, Fanless
  • Hikrobot MV-CH250-20XC-M58S-NN 25 MP CoaXPress area scan camera, PYTHON25K, CXP-6 interface, Color, M58 connector, Fanless
  • MV-CH250-20XC-M58S-NN dimensions (mm)

Area scan cameras

Hikrobot MV-CH250-20XC-M58S-NN 25 MP CoaXPress area scan camera, PYTHON25K, CXP-6 interface, Color, M58 connector, Fanless

Model MV-CH250-20XC-M58S-NNHikrobot

  • Resolution5120 × 5120
  • SensorCMOS, global shutter
  • InterfaceCoaXPress with DIN interface
  • Speed80 fps @ 5120 × 5120 Bayer RG 8
  • Lens mountM58
  • Mono / colourColor
$10,399.00
List price

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

1.12 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable models:

Ask an engineerBrowse Area scan cameras

lumaspecvision.com/products/lumaspec-mv-ch250-20xc-m58s-nn

Fewer pixels than most of the series, for less data per frame: MV-CH250-20XC-M58S-NN, the colour, 80 fps version, has a 5120 x 5120 (26 MP) sensor, in the lower half of the 16 resolutions in the series.

MV-CH250-20XC-M58S-NN: resolution 5120 x 5120; sensor type CMOS, global shutter; sensor size 23 mm (H) x 23 mm (V); data interface CoaXPress with DIN interface.

Hikrobot MV-CH250-20XC-M58S-NN 25 MP CoaXPress area scan camera, PYTHON25K, CXP-6 interface, Color, M58 connector, Fanless.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CH250-20XC-M58S-NN
BrandHikrobot
CompatibilityCoaXPress, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelOnSemi PYTHON25K
Pixel size4.5 μm × 4.5 μm
Sensor size23 mm (H) x 23 mm (V)
Resolution5120 × 5120
Max. frame rate80 fps @ 5120 × 5120 Bayer RG 8
Dynamic range58 dB
SNR41 dB
Gain0 ~ 15 dB
Exposure time33 μs ~ 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatBayer 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceCoaXPress with DIN interface
Digital I/O12-pin P10 connector for power and I/O, 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bidirectional configurable non-isolated I/O (Line 2), 1× RS-232
Client softwareMVS or CoaXPress-compliant frame grabber control software

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% to 95% RH (non-condensing)
CertificationCE, RoHS, KC

Computing

Operating systemWindows 7/10/11 32/64 bits

Electrical

Power supply9 ~ 24 VDC, CXP-0 and CXP-1 ports support PoCXP power
Power consumption10.5 W @ 24 VDC

Mechanical

Lens mountM58*0.75, flange back length 11.48 mm
Dimension84 mm × 84 mm × 92.5 mm
WeightApprox. 730 g
Shipping weight (estimated)1.12 kg

Engineering data

Field of view and resolution with the MV-CH250-20XC-M58S-NN

Sensor area23.04 × 23.04 mmAPS-H optical format
Lens image circle needed≥ Ø 32.6 mmM58
Pixel pitch4.5 µm5120 x 5120 px
Image data at max frame rate2097 MB/sCalculated: 80 fps × 5120 × 5120 px at 8 bit
With a 35 mm lens at 500 mm329 × 329 mm0.064 mm per pixel
Dynamic range58 dB
SNR41 dB
Power consumption10.5 Wat 24 V DC
ShutterGlobal
Exposure range33 µs to 10 s
Weight730 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
16 mm432 × 432 mm0.084 mm per pixel720 × 720 mm0.141 mm per pixel1440 × 1440 mm0.281 mm per pixel
25 mm276 × 276 mm0.054 mm per pixel461 × 461 mm0.09 mm per pixel922 × 922 mm0.18 mm per pixel
35 mm197 × 197 mm0.039 mm per pixel329 × 329 mm0.064 mm per pixel658 × 658 mm0.129 mm per pixel
50 mm138 × 138 mm0.027 mm per pixel230 × 230 mm0.045 mm per pixel461 × 461 mm0.09 mm per pixel
75 mm92.2 × 92.2 mm0.018 mm per pixel154 × 154 mm0.03 mm per pixel307 × 307 mm0.06 mm per pixel
100 mm69.1 × 69.1 mm0.014 mm per pixel115 × 115 mm0.022 mm per pixel230 × 230 mm0.045 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $12,337.00

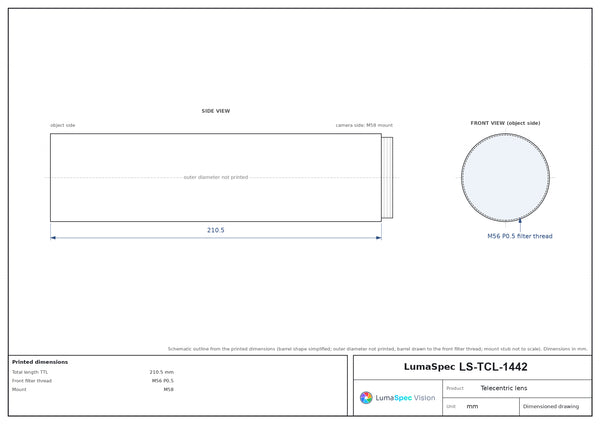

Lenses for this M58 camera

This camera's 32.6 mm sensor diagonal uses 99 % of the lens's 33 mm image circle

This camera's 32.6 mm sensor diagonal uses 78 % of the lens's 42 mm image circle

This camera's 32.6 mm sensor diagonal uses 74 % of the lens's 44 mm image circle

This camera's 32.6 mm sensor diagonal uses 74 % of the lens's 44 mm image circle

This camera's 32.6 mm sensor diagonal uses 74 % of the lens's 44 mm image circle

This camera's 32.6 mm sensor diagonal uses 74 % of the lens's 44 mm image circle

Cables and frame grabbers

Before you buy

Questions about the MV-CH250-20XC-M58S-NN

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CH250-20XC-M58S-NN?

M58-mount lenses whose image circle covers its sensor diagonal (about 32.6 mm): LS-TCL-1442 (0.786x), LS-FFL-1426 (35 mm), LS-FFL-1192 (60 mm) and LS-FFL-1191 (50 mm).

What data rate does the MV-CH250-20XC-M58S-NN need over CoaXPress?

About 2097 MB/s at its printed 80 fps at 5120 x 5120 (8 bits per pixel, calculated).

Which cables and frame grabbers fit the MV-CH250-20XC-M58S-NN?

Fit-tested for its CoaXPress interface: LS-CBL-0170 (1.5 m), frame grabber MV-GX1002, frame grabber MV-GX1004, frame grabber MV-GX1008 and frame grabber MV-GX1102.

How does the MV-CH250-20XC-M58S-NN connect?

The data interface is CoaXPress with DIN interface.

What I/O does the MV-CH250-20XC-M58S-NN have?

The digital I/O is 12-pin P10 connector for power and I/O, 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bidirectional configurable non-isolated I/O (Line 2), 1× RS-232.

Other models in the CH Series CoaXPress Area Scan Camera series

See all 66 models

How this model compares

ModelResolutionSensorInterfaceSpeedGainPriceAvailabilityLink
MV-CH120-90X2C-C-NN4096 x 3072CMOS, global shutterCoaXPress with DIN interface95 fps @ 4096 x 3072 Bayer GB 80 to 6.1 dB$7,859.00 Quote Ships in 2-3 weeks View
MV-CH210-90YC-M58S-NN5120 x 4096CMOS, global shutterCoaXPress with Micro-BNC interface222 fps @ 5120 x 4096 Bayer GB 81.0 ×, 2.0 ×, 4.0 ×$9,819.00 Quote Ships in 2-3 weeks View
MV-CH210-90YC-M58S-NF5120 x 4096CMOS, global shutterCoaXPress with Micro-BNC interface222 fps @ 5120 x 4096 Bayer GB 81.0x, 2.0x, 4.0x$9,819.00 Quote Ships in 2-3 weeks View
MV-CH250-20XM-M58S-NN5120 x 5120CMOS, global shutterCoaXPress with DIN interface80 fps @ 5120 x 51200 to 15 dB$10,399.00 Quote Ships in 2-3 weeks View
MV-CH250-20XC-M58S-NNThis model5120 x 5120CMOS, global shutterCoaXPress with DIN interface80 fps @ 5120 x 5120 Bayer RG 80 to 15 dB$10,399.00 Quote Ships in 2-3 weeks
MV-CH250-90XC-C-NN5120 x 5120CMOS, global shutterCoaXPress with DIN interface41.5 fps @ 5120 x 5120 Bayer BG 82.0 × to 5.0 ×$10,979.00 Quote Ships in 2-3 weeks View
HIK-C650-CCXP9344 x 7000CMOS, global shutterCoaXPress with Micro-BNC interface71 fps @ 9344 x 7000 Bayer RG 81.25x$1,919.00 Ships in 2-3 weeks View
MV-CH650-90XC-M58S-NF9344 x 7000CMOS, global shutterCoaXPress with DIN interface31.5 fps @ 9344 x 70001.25 to 6 x$11,789.00 Quote Ships in 2-3 weeks View
MV-CH1510-11XC-M72-TF14208 x 10640CMOS, rolling shutterCoaXPress with DIN interface6.2 fps @ 14208 x 106400 to 36 dB$26,369.00 Quote Ships in 2-3 weeks View
