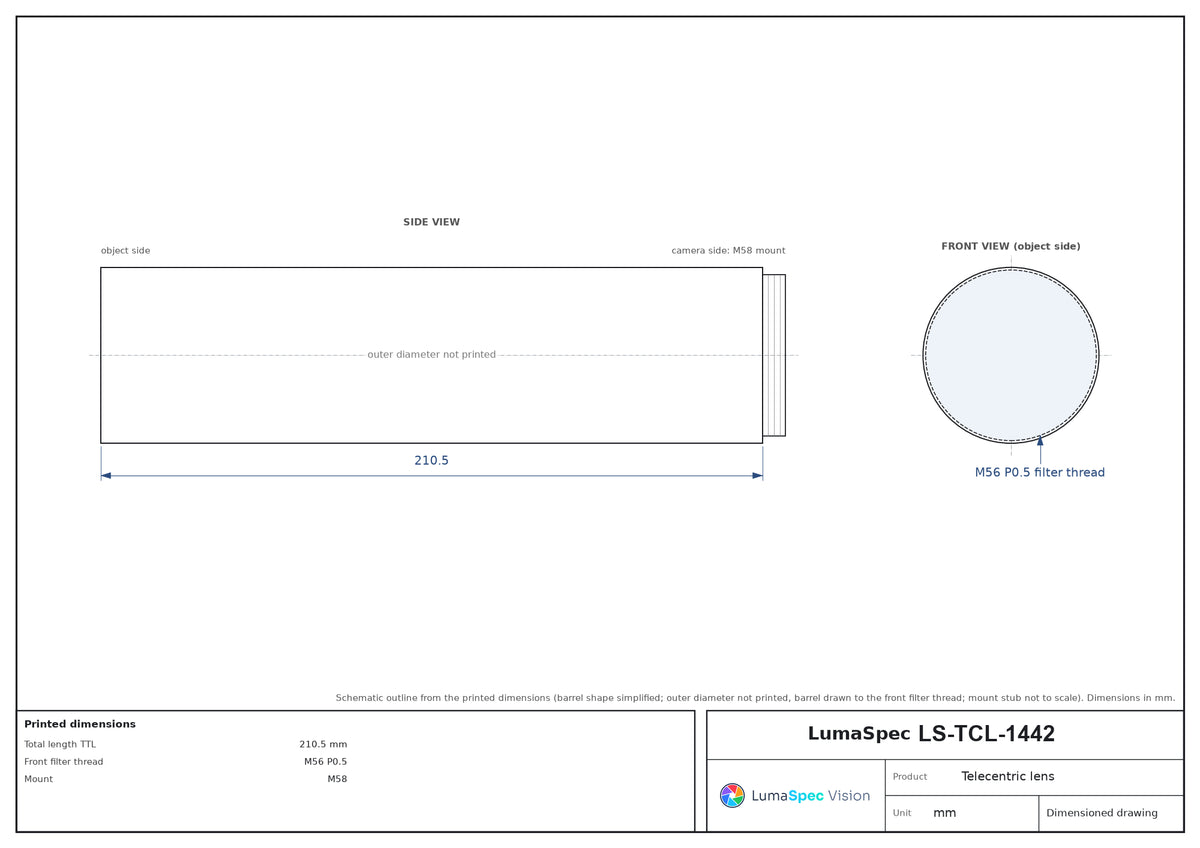

  • LS-TCL-1442 dimensions (mm)

Telecentric lenses

0.786x, WD 118 mm, 2", M58-mount Telecentric Lens (LS-TCL-1442)

Model LS-TCL-1442

  • Magnification0.786x
  • MountM58
  • SensorAPS-H
  • Working distance118±3
  • Aperture12.9
  • Field of view42
$1,779.00

Ships in 2-3 weeks

1.49 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.786x, WD 118 mm, 2", M58-mount Telecentric Lens (LS-TCL-1442)LS-TCL-1442

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.786x, WD 118 mm, 2", M58-mount Telecentric Lens. At a glance: magnification 0.786x; working distance 118±3 mm; max sensor size 33 mm (2"); object field of view 42 mm; image-side f/# 12.9.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1442

Optics

Object field of view (dia. mm)42
Magnification (x)0.786
Working distance (mm)118±3
Image-side F/#12.9
Image-side MTF30 (lp/mm)>65
Theoretical depth of field (mm)±1.2@F20
Image-side distortion (% max)<0.1
Object-side telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)341±3
Total length TTL (mm)210.5
Front filter threadM56 P0.5
Measured depth of field as shipped (mm)1.2

Sensor and imaging

Max sensor size (dia. mm)33(2")

Mechanical

MountM58
Net weight (kg)0.992
Shipping weight (estimated)1.49 kg

Photo shows a representative model of this series; see the specifications for this model.
