Telecentric lenses
0.659x, WD 82 mm, 1.75" Telecentric Lens (LS-TCL-1817)
Model LS-TCL-1817
- Magnification0.659x
- MountF-mount
- Sensor1.75"
- Working distance82±1
- Aperture6.8
- Field of view44
$1,819.00
Ships in 2-3 weeks
1.08 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.659x, WD 82 mm, 1.75" Telecentric Lens. At a glance: magnification 0.659x; working distance 82±1 mm; max sensor size 29 mm (1.75"); object field of view 44 mm; image-side f/# 6.8.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1817 |
|---|
Optics
| Object field of view (dia. mm) | 44 |
|---|---|
| Magnification (x) | 0.659 |
| Working distance (mm) | 82±1 |
| Image-side F/# | 6.8 |
| Image-side MTF30 (lp/mm) | >110 |
| Theoretical depth of field (mm) | ±1.5@F16 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | Non-telecentric |
| Object-to-image distance I/O (mm) | 268±1 |

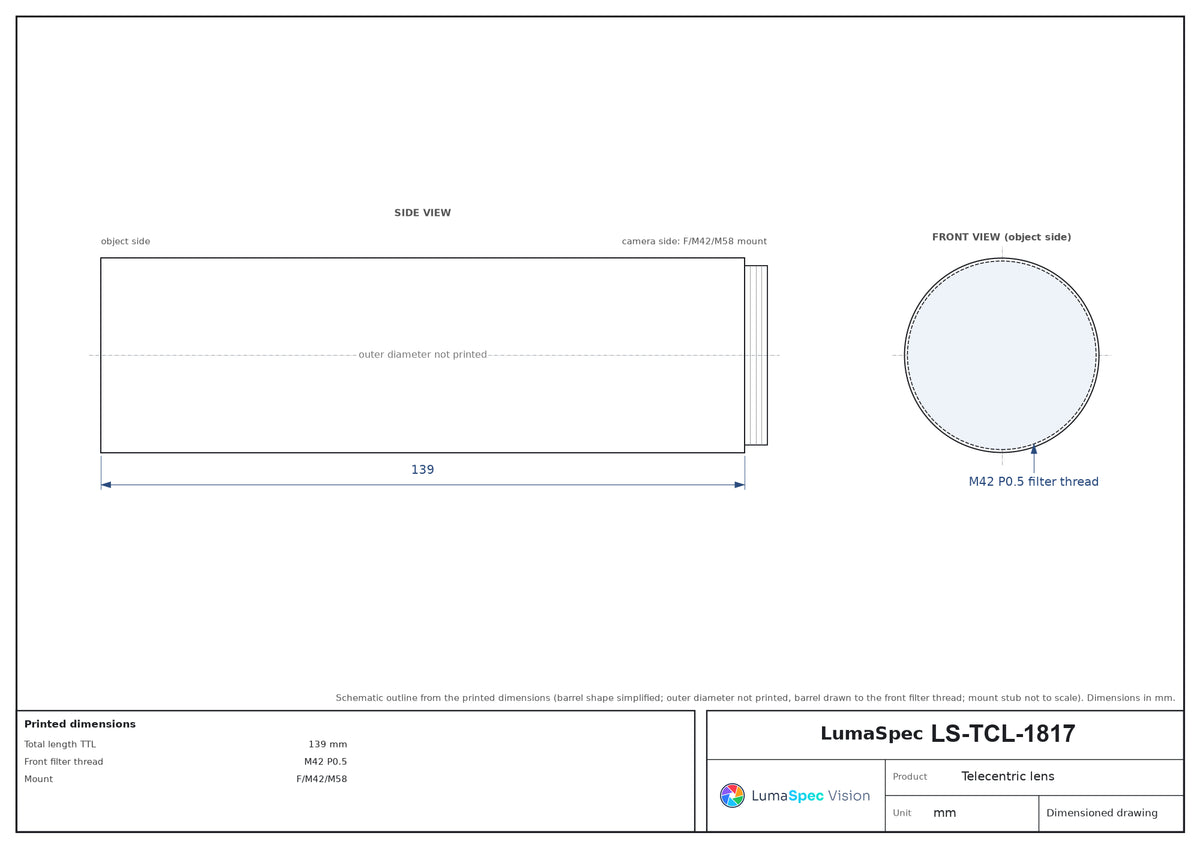

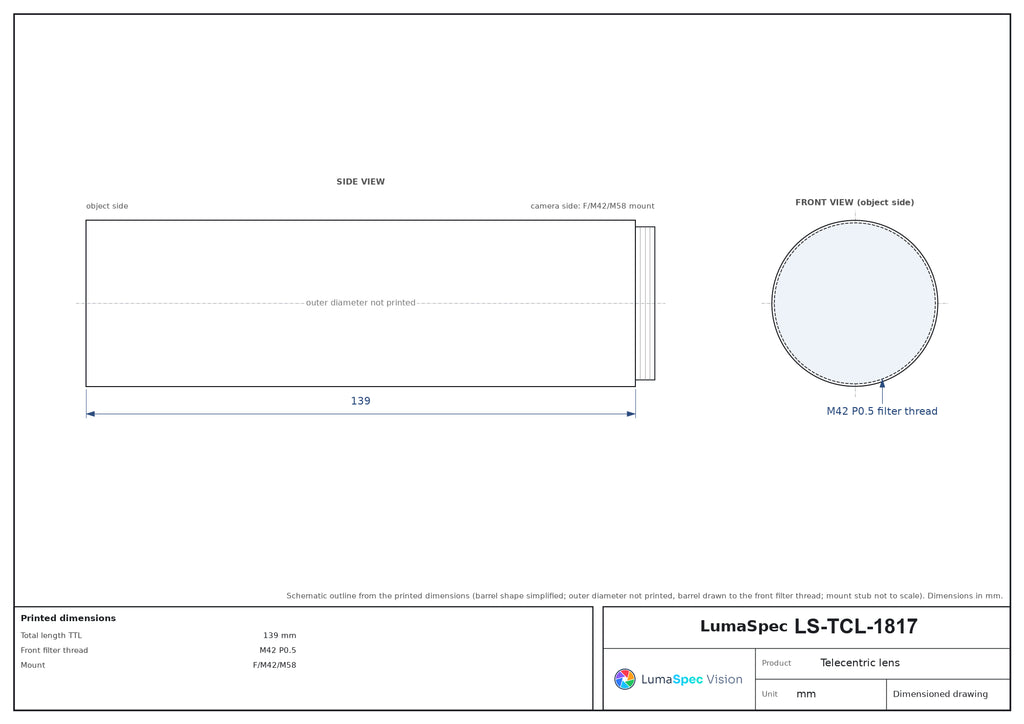

| Total length TTL (mm) | 139 |
| Front filter thread | M42 P0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 29(1.75") |
|---|
Mechanical
| Mount | F/M42/M58 |
|---|---|
| Net weight (kg) | 0.7 |
| Shipping weight (estimated) | 1.08 kg |
Photo shows a representative model of this series; see the specifications for this model.
