1.321x, WD 48 mm, M58-mount Telecentric Lens (LS-TCL-1628)
Model LS-TCL-1628
- Magnification1.321x
- MountM58
- SensorFull frame
- Working distance48±1
- Aperture10.3
- Field of view33
$1,849.00
In stock - ships the same business day (4 available, order by 2 PM ET)
1.78 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1.321x, WD 48 mm, M58-mount Telecentric Lens. At a glance: magnification 1.321x; working distance 48±1 mm; max sensor size 43.6 mm (35mm Full); object field of view 33 mm; image-side f/# 10.3.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1628 |
|---|
Optics
| Object field of view (dia. mm) | 33 |
|---|---|
| Magnification (x) | 1.321 |
| Working distance (mm) | 48±1 |
| Image-side F/# | 10.3 |
| Image-side MTF30 (lp/mm) | >80 |
| Theoretical depth of field (mm) | ±0.5@F20 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 295±1 |

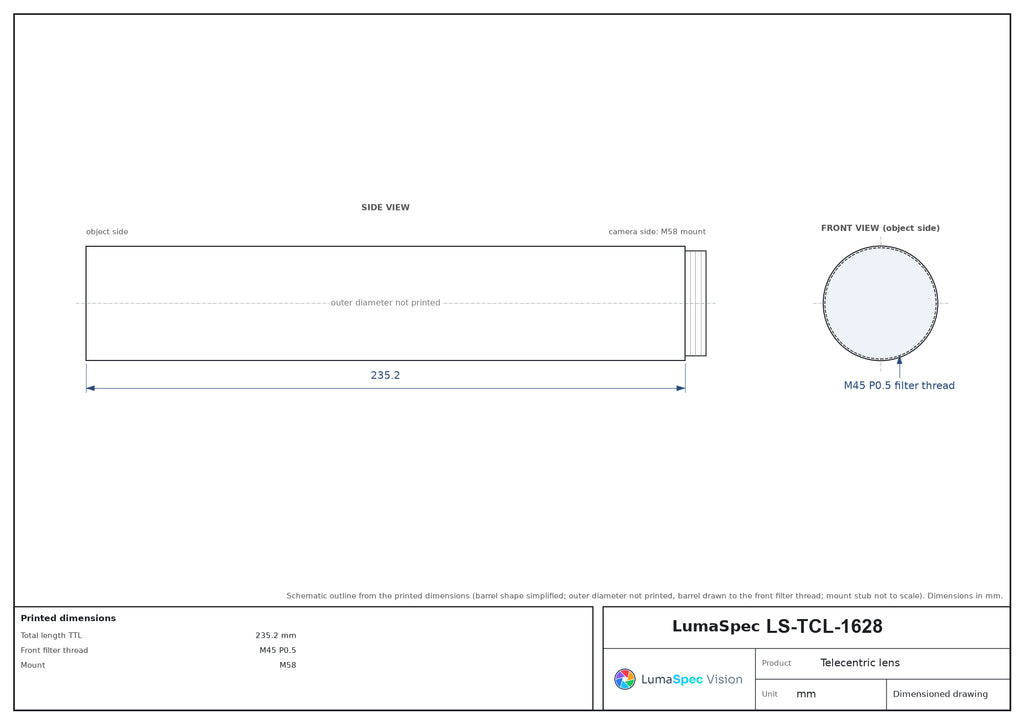

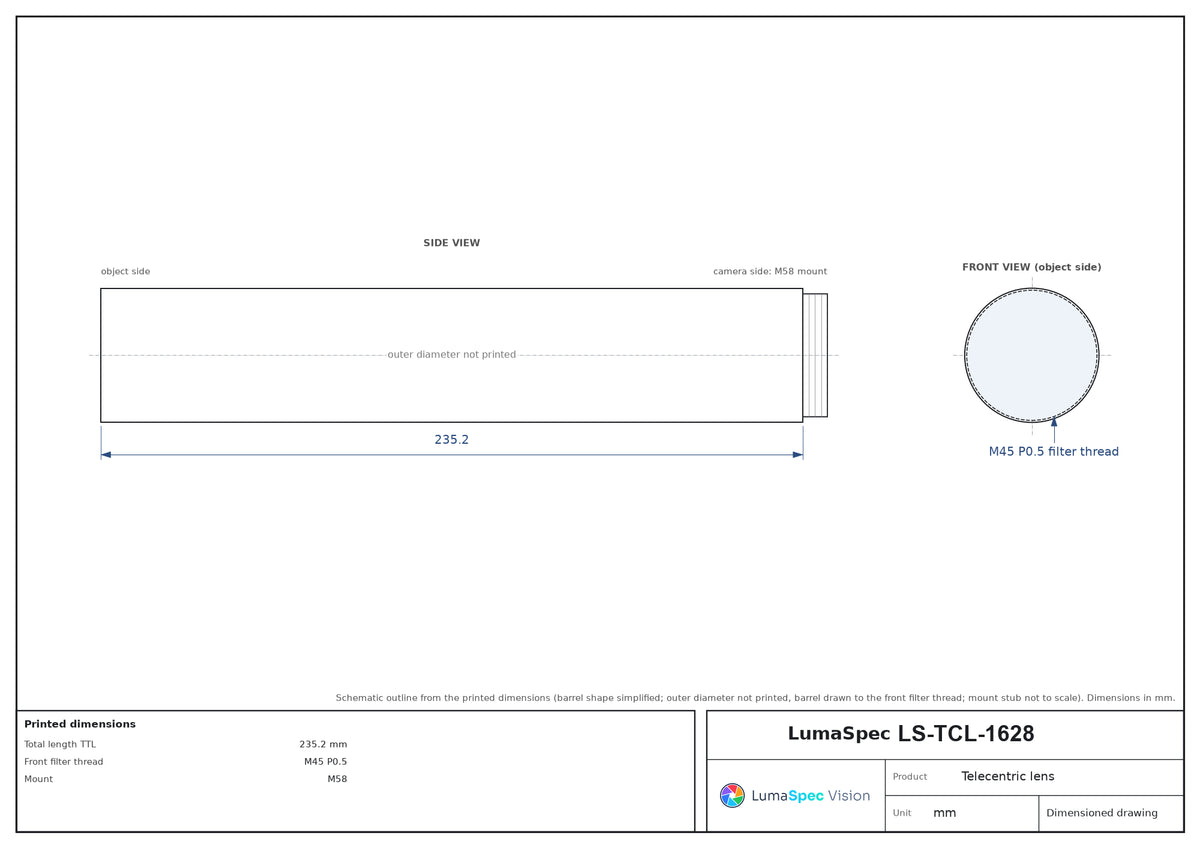

| Total length TTL (mm) | 235.2 |
| Front filter thread | M45 P0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 43.6(35mm Full) |
|---|
Mechanical
| Mount | M58 |
|---|---|
| Net weight (kg) | 1.2 |
| Shipping weight (estimated) | 1.78 kg |
Photo shows a representative model of this series; see the specifications for this model.
