Machine vision product
  • Machine vision product

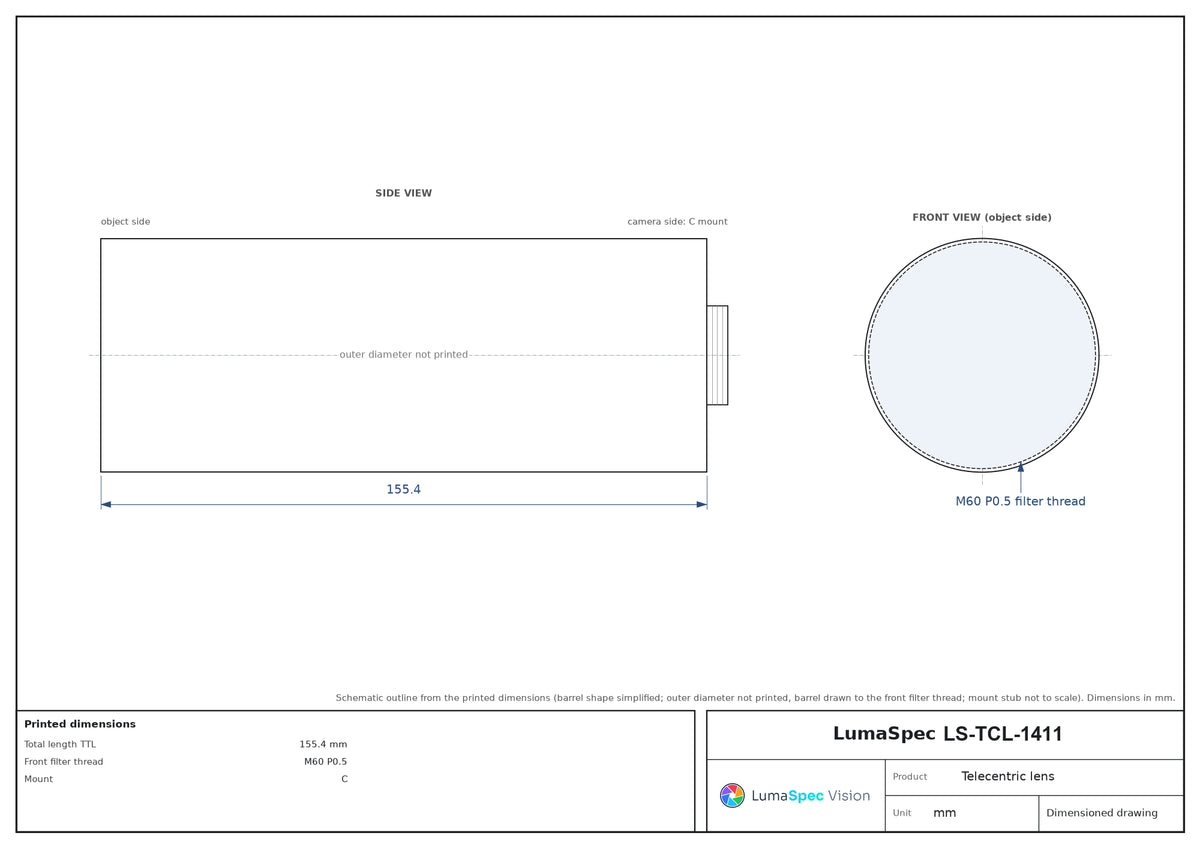

  • LS-TCL-1411 dimensions (mm)

Telecentric lenses

0.346x, WD 128 mm, 1", C-mount Telecentric Lens (LS-TCL-1411)

Model LS-TCL-1411

  • Magnification0.346x
  • MountC-mount
  • Sensor1"
  • Working distance128±3
  • Aperture6.5
  • Field of view48
$1,899.00

Ships in 2-3 weeks

0.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.346x, WD 128 mm, 1", C-mount Telecentric Lens (LS-TCL-1411)LS-TCL-1411

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.346x, WD 128 mm, 1", C-mount Telecentric Lens. At a glance: magnification 0.346x; working distance 128±3 mm; max sensor size 16.6 mm (1"); object field of view 48 mm; image-side f/# 6.5.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1411

Optics

Object field of view (dia. mm)48
Magnification (x)0.346
Working distance (mm)128±3
Image-side F/#6.5
Image-side MTF30 (lp/mm)>130
Theoretical depth of field (mm)±5.3@F16
Image-side distortion (% max)<0.1
Object-side telecentricity (deg max)<0.1
Object-to-image distance I/O (mm)301±3
Total length TTL (mm)155.4
Front filter threadM60 P0.5
Measured depth of field as shipped (mm)2.4

Sensor and imaging

Max sensor size (dia. mm)16.6(1")

Mechanical

MountC
Net weight (kg)0.497
Shipping weight (estimated)0.80 kg

Photo shows a representative model of this series; see the specifications for this model.
