0.604x, WD 138 mm, 1.75" Telecentric Lens (LS-TCL-1819)
Model LS-TCL-1819
- Magnification0.604x
- MountF-mount
- Sensor1.75"
- Working distance138±3
- Aperture17.1
- Field of view48
$1,909.00
In stock - ships the same business day (4 available, order by 2 PM ET)
1.36 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.604x, WD 138 mm, 1.75" Telecentric Lens. At a glance: magnification 0.604x; working distance 138±3 mm; max sensor size 29 mm (1.75"); object field of view 48 mm; image-side f/# 17.1.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1819 |
|---|
Optics
| Object field of view (dia. mm) | 48 |
|---|---|
| Magnification (x) | 0.604 |
| Working distance (mm) | 138±3 |
| Image-side F/# | 17.1 |
| Image-side MTF30 (lp/mm) | >50 |
| Theoretical depth of field (mm) | ±2.2@F20 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 343±3 |

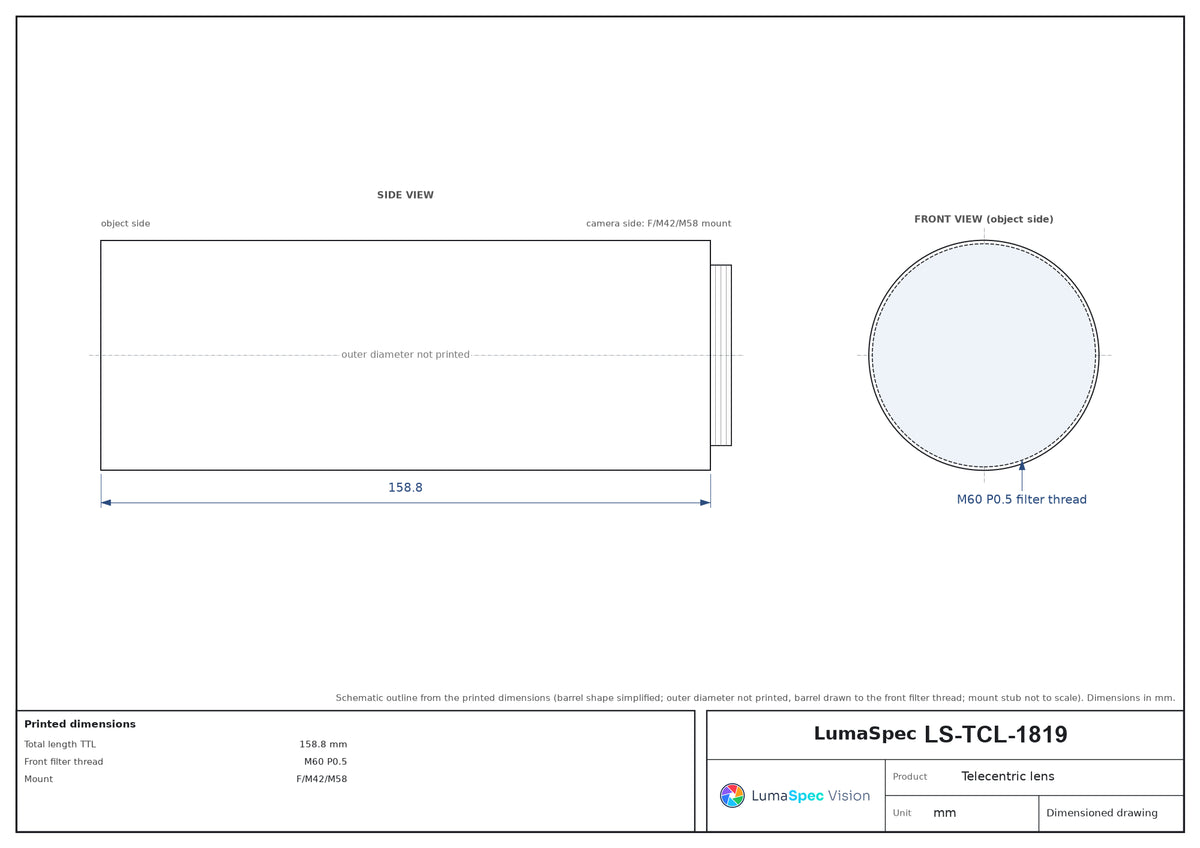

| Total length TTL (mm) | 158.8 |
| Front filter thread | M60 P0.5 |
Sensor and imaging
| Max sensor size (dia. mm) | 29(1.75") |
|---|
Mechanical
| Mount | F/M42/M58 |
|---|---|
| Net weight (kg) | 0.9 |
| Shipping weight (estimated) | 1.36 kg |
Photo shows a representative model of this series; see the specifications for this model.
