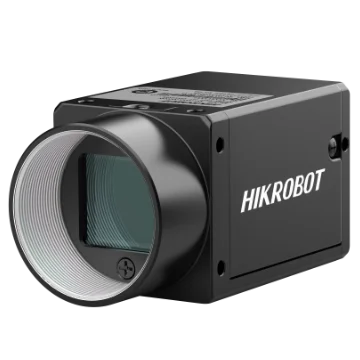

Hikrobot MV-CH050-90Y1M-NN 5MP Area Scan Camera, GMAX3405, 1-link CXP-12, C-mount, without fan, Mono

Model MV-CH050-90Y1M-NNHikrobot

Resolution2448 × 2048
SensorCMOS, global shutter
InterfaceCoaXPress with Micro-BNC interface
Speed164 fps @ 2448 × 2048 Mono 8
Lens mountC-mount
Mono / colourMono

$7,859.00

List price

Ships in 2-3 weeks

0.23 kg shipping weight

Not available in the United States. Available for delivery to other countries.

MV-CH050-90Y1M-NN: resolution 2448 x 2048; sensor type CMOS, global shutter; sensor size 2/3"; max. frame rate 164 fps @ 2448 x 2048 Mono 8; dynamic range 59.7 dB.

Hikrobot MV-CH050-90Y1M-NN 5MP Area Scan Camera, GMAX3405, 1-link CXP-12, C-mount, without fan, Mono. Resolution of 2448 × 2048, pixel size of 3.4 µm × 3.4 µm. Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

Model	MV-CH050-90Y1M-NN
Brand	Hikrobot
Compatibility	CoaXPress, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Gpixel GMAX3405
Pixel size	3.4 μm × 3.4 μm
Sensor size	2/3"
Resolution	2448 × 2048
Max. frame rate	164 fps @ 2448 × 2048 Mono 8
Dynamic range	59.7 dB
SNR	39.3 dB
Gain	0 dB to 6.1 dB
Exposure time	2 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	CoaXPress with Micro-BNC interface
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)
Client software	MVS or third-party software meeting with CoaXPress Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux

Electrical

Power supply	9 VDC to 24 VDC, supports PoCXP
Power consumption	Typ. 3.3 W @ 12 VDC

Mechanical

Lens mount	C-mount

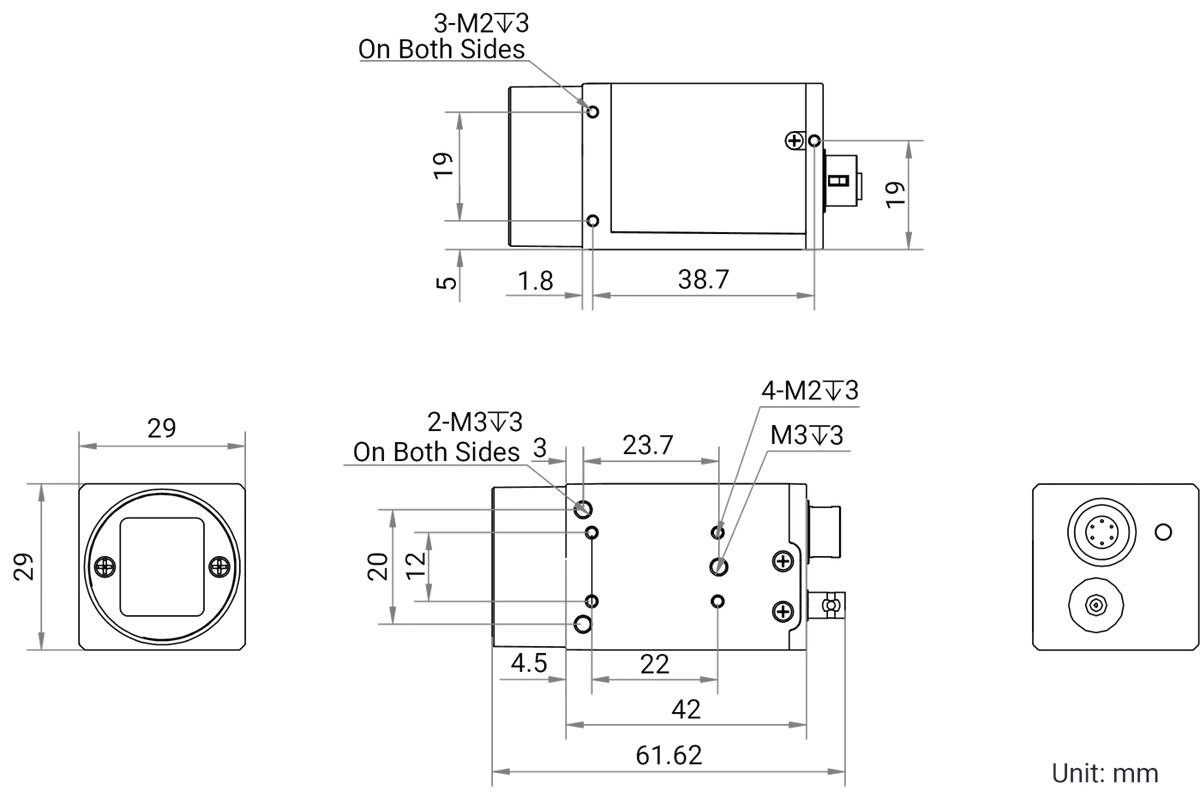

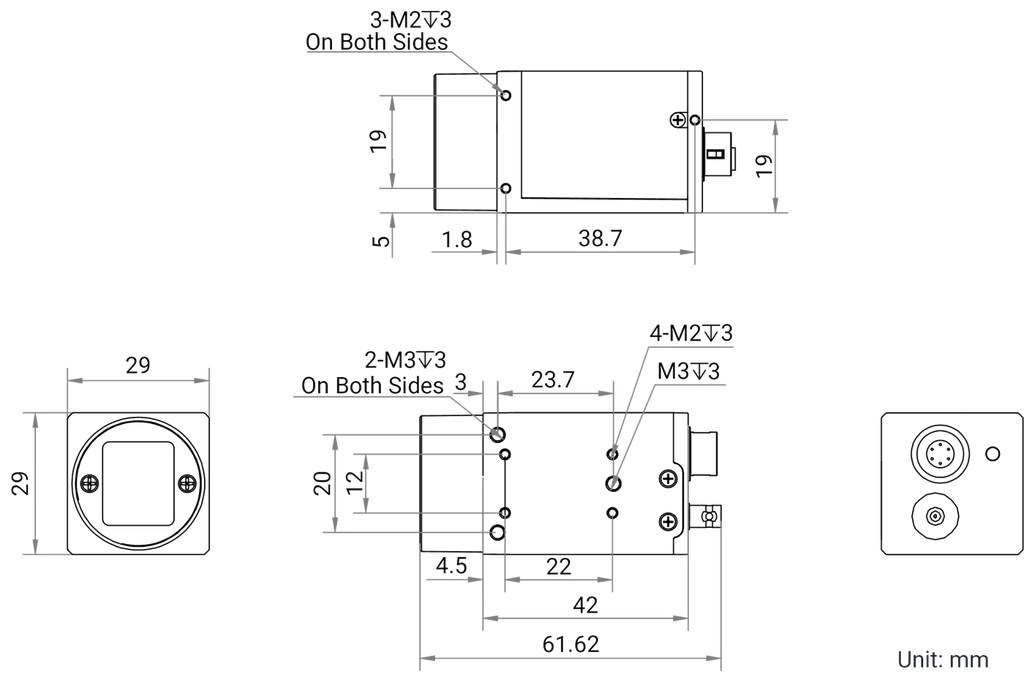

Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 90 g (0.2 lb.)
Shipping weight (estimated)	0.23 kg

Downloads

Features

CoaXPress with Micro-BNC interface
59.7 dB dynamic range
Resolution of 2448 × 2048, pixel size of 3.4 µm × 3.4 µm.
Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
Adopts CXP-12 interface to transmit data.
Supports Off, Once, and Continuous exposure modes.
Compatible with CoaXPress Protocol, GenICam Standard, and third-party software based on the protocol and standard.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

Field of view and resolution with the MV-CH050-90Y1M-NN

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area8.32 × 6.96 mm2/3" optical format

Lens image circle needed≥ Ø 10.8 mmC-mount

Pixel pitch3.4 µm2448 x 2048 px

Image data at max frame rate822 MB/sCalculated: 164 fps × 2448 × 2048 px at 8 bit

With a 16 mm lens at 500 mm260 × 218 mm0.106 mm per pixel

Dynamic range59.7 dB

SNR39.3 dB

Power consumption3.3 Wtyp. at 12 V DC

ShutterGlobal

Exposure range2 µs to 10 s

Weight90 gapprox.

Field of view (width × height) and object pixel size by lens focal length and working distance
Lens	At 300 mm	At 500 mm	At 1000 mm
8 mm	312 × 261 mm0.127 mm per pixel	520 × 435 mm0.212 mm per pixel	1040 × 870 mm0.425 mm per pixel
12 mm	208 × 174 mm0.085 mm per pixel	347 × 290 mm0.142 mm per pixel	693 × 580 mm0.283 mm per pixel
16 mm	156 × 130 mm0.064 mm per pixel	260 × 218 mm0.106 mm per pixel	520 × 435 mm0.212 mm per pixel
25 mm	99.8 × 83.5 mm0.041 mm per pixel	166 × 139 mm0.068 mm per pixel	333 × 278 mm0.136 mm per pixel
35 mm	71.3 × 59.7 mm0.029 mm per pixel	119 × 99.4 mm0.049 mm per pixel	238 × 199 mm0.097 mm per pixel
50 mm	49.9 × 41.8 mm0.02 mm per pixel	83.2 × 69.6 mm0.034 mm per pixel	166 × 139 mm0.068 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
