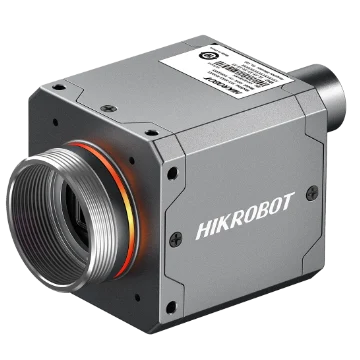

Hikrobot MV-CT032G-104UC01-MAX 3.2 MP USB 3.0 area scan camera, Gen 3, Color, MAX

Area scan cameras

Hikrobot MV-CT032G-104UM01-MAX 3.2 MP USB 3.0 area scan camera, Gen 3, Mono, MAX

Model MV-CT032G-104UM01-MAXHikrobot

Resolution2048 × 1536
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed104.8 fps @2048 × 1536 Mono 8
Lens mountC-mount
Mono / colourMono

$689.00

Ships in 2-3 weeks

0.25 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CT032G-104UM01-MAX 3.2 MP USB 3.0 area scan camera, Gen 3, Mono, MAX. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CT032G-104UM01-MAX
Brand	Hikrobot
Compatibility	USB3 Vision, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Stacked BSI
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/1.8”
Resolution	2048 × 1536
Max. frame rate	104.8 fps @2048 × 1536 Mono 8
Dynamic range	74.4 dB
SNR	42.4 dB
Gain	High full well capacity: 0 dB to 12.8 dB; High sensitivity: 0 dB to 24 dB
Exposure time	High full well capacity: 30 μs to 10 sec; High sensitivity: 5 μs to 10 sec
Exposure mode	Auto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Data interface type	Type-C port
Console interface	8-pin M12 A-coded waterproof connector
Digital I/O	8-pin M8 connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2)
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP67 (with lens, cover and cables properly installed)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply	9 VDC to 24 VDC, supports USB3.0 power supply and PoE
Power consumption	1.6 W @ 5 VDC (USB 3.0 powered, Fast thermal balance off, external devices not controlled)

Mechanical

Lens mount	C-Mount

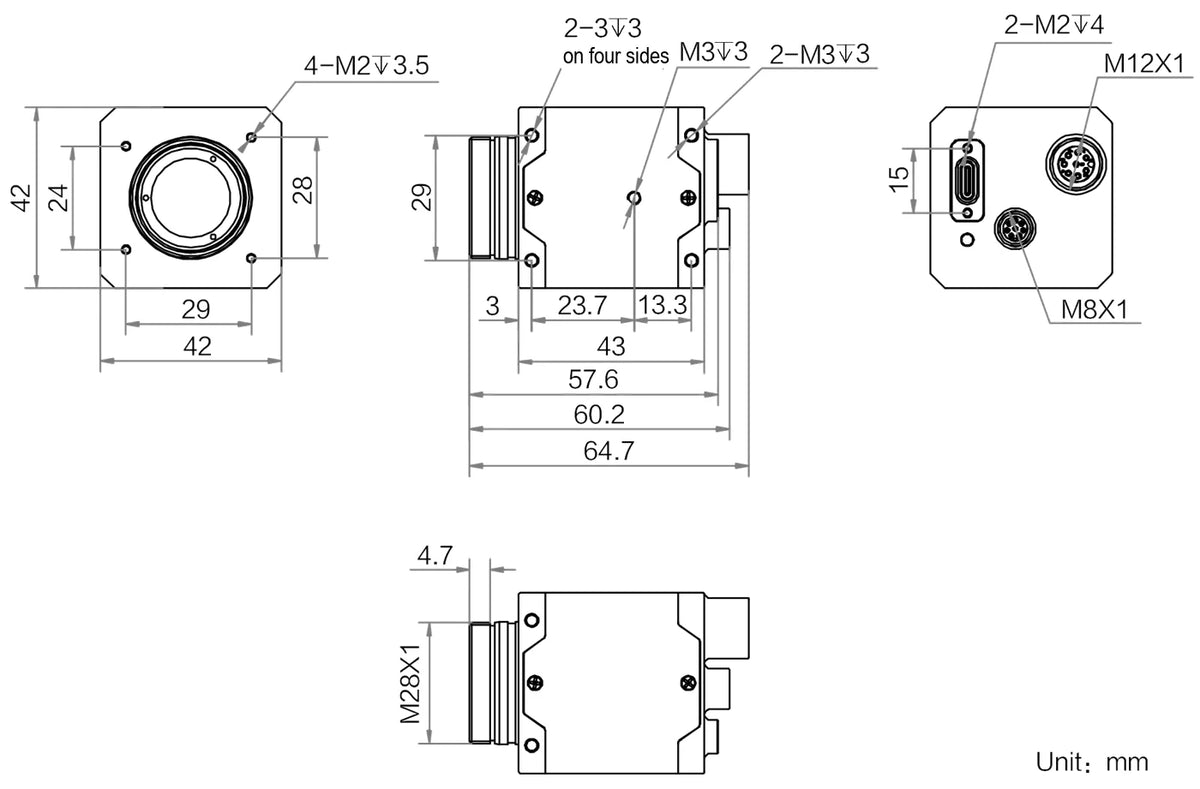

Dimension	42 mm × 42 mm × 43 mm
Weight	Approx. 109 g
Shipping weight (estimated)	0.25 kg

Downloads

Features

PRO and MAX versions feature fully waterproof connectors
PRO and MAX versions feature precise temperature control for fast thermal equilibrium
PRO color version features multispectral fusion with automatic color correction
MAX version integrates lens and light control: lens focusing and lighting control in one unit
Type-C interface for higher transmission bandwidth
Compatible with USB3 Vision and the GenICam standard for seamless integration with third-party software
