Hikrobot MV-CT120G-30UC01-PRO 12 MP USB 3.0 area scan camera, Gen 3, Color, PRO
  • Hikrobot MV-CT120G-30UC01-PRO 12 MP USB 3.0 area scan camera, Gen 3, Color, PRO
  • MV-CT120G-30UC01-PRO dimensions (mm)

Area scan cameras

Hikrobot MV-CT120G-30UC01-PRO 12 MP USB 3.0 area scan camera, Gen 3, Color, PRO

Model MV-CT120G-30UC01-PROHikrobot

  • Resolution4096 × 3000
  • SensorCMOS, global shutter
  • InterfaceUSB 3.0, compatible with USB 2.0
  • Speed31 fps @ 4096 × 3000 Bayer GB 8
  • Lens mountC-mount
  • Mono / colourColor
$1,349.00

Ships in 2-3 weeks

0.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CT120G-30UC01-PRO: resolution 4096 x 3000; sensor type CMOS, global shutter; sensor size 1.1”; dynamic range 67.4 dB; mono/color Color.

Hikrobot MV-CT120G-30UC01-PRO 12 MP USB 3.0 area scan camera, Gen 3, Color, PRO. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CT120G-30UC01-PRO
BrandHikrobot
CompatibilityUSB3 Vision, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3.45 μm × 3.45 μm
Sensor size1.1”
Resolution4096 × 3000
Max. frame rate31 fps @ 4096 × 3000 Bayer GB 8
Dynamic range67.4 dB
SNR43.9 dB
Gain0 dB ~ 12 dB
Exposure time20 μs ~ 10 sec
Exposure modeAuto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported
Mono/colorColor
Pixel formatMono 8; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceUSB 3.0, compatible with USB 2.0
Data interface typeType-C port
Console interfaceNot supported
Digital I/O8-pin M8 connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2)
Client softwareMVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protectionIP67 (with lens, cover and cables properly installed)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating systemWindows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply9 VDC to 24 VDC, supports USB3.0 power supply and PoE
Power consumption2.2 W @ 5 VDC (USB 3.0 powered, fast thermal balance off)

Mechanical

Lens mountC-Mount
Dimension29 mm × 29 mm × 30 mm
WeightApprox. 70 g
Shipping weight (estimated)0.20 kg

Engineering data

Field of view and resolution with the MV-CT120G-30UC01-PRO

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area14.13 × 10.35 mm1.1" optical format
Lens image circle needed≥ Ø 17.5 mmC-mount
Pixel pitch3.45 µm4096 x 3000 px
Image data at max frame rate381 MB/sCalculated: 31 fps × 4096 × 3000 px at 8 bit · USB3 carries 625 MB/s nominal
With a 16 mm lens at 500 mm442 × 323 mm0.108 mm per pixel
Dynamic range67.4 dB
SNR43.9 dB
Power consumption2.2 Wat 5 V DC
ShutterGlobal
Exposure range20 µs to 10 s
Weight70 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm530 × 388 mm0.129 mm per pixel883 × 647 mm0.216 mm per pixel1766 × 1294 mm0.431 mm per pixel
12 mm353 × 259 mm0.086 mm per pixel589 × 431 mm0.144 mm per pixel1178 × 862 mm0.287 mm per pixel
16 mm265 × 194 mm0.065 mm per pixel442 × 323 mm0.108 mm per pixel883 × 647 mm0.216 mm per pixel
25 mm170 × 124 mm0.041 mm per pixel283 × 207 mm0.069 mm per pixel565 × 414 mm0.138 mm per pixel
35 mm121 × 88.7 mm0.03 mm per pixel202 × 148 mm0.049 mm per pixel404 × 296 mm0.099 mm per pixel
50 mm84.8 × 62.1 mm0.021 mm per pixel141 × 104 mm0.034 mm per pixel283 × 207 mm0.069 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 17.6 mm diagonal; this camera's sensor is 17.5 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 17.5 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 17.5 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 17.5 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 17.5 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 17.5 mm

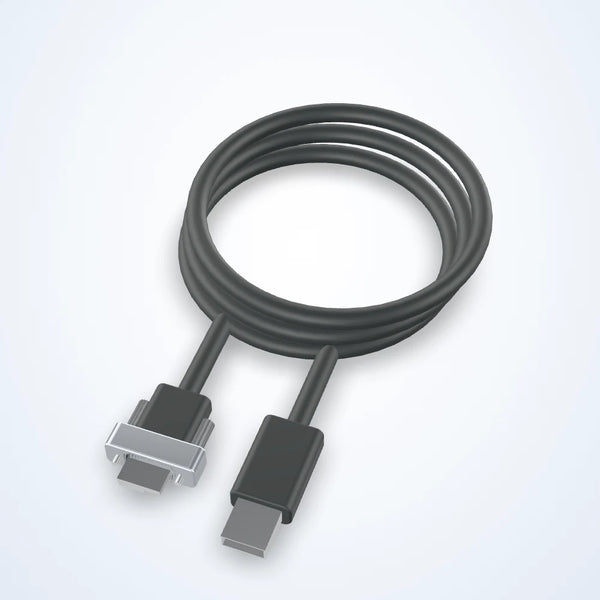

Cables and frame grabbers
