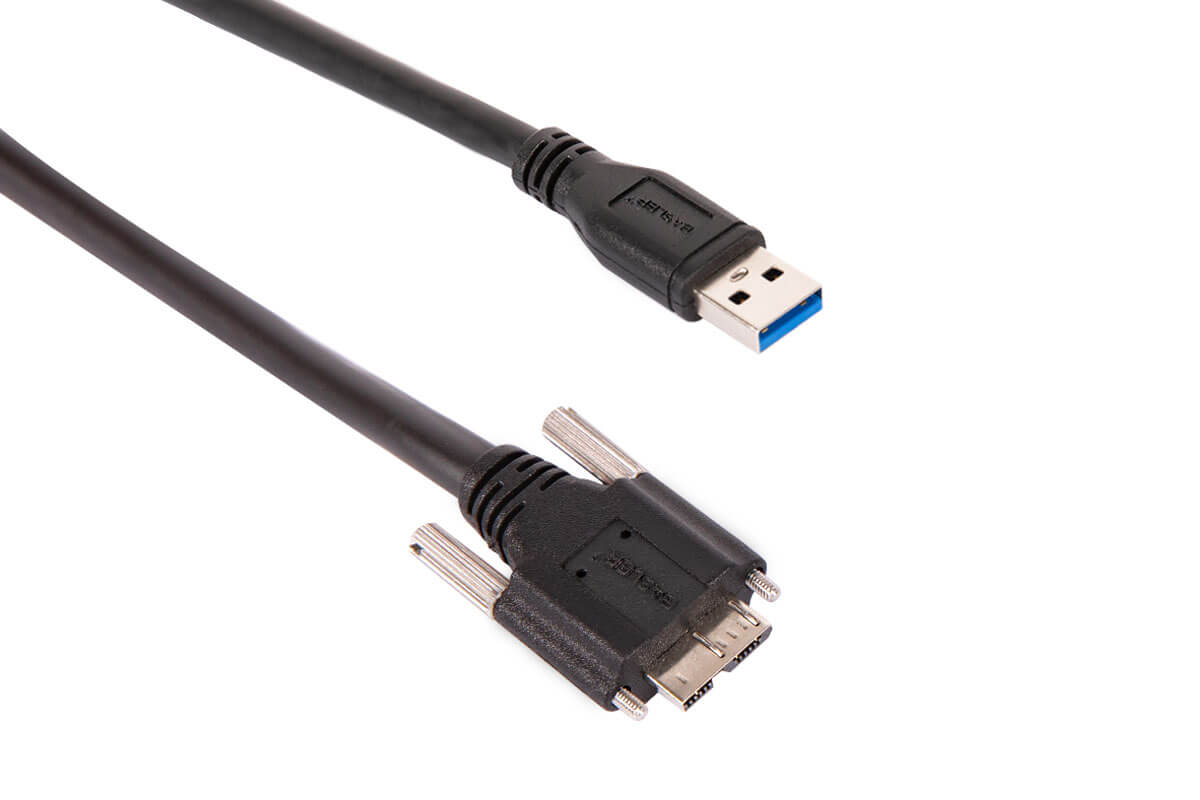

Basler USB 3.0 Camera Cable, Micro-B Screw-Lock to Type A, 3 m
Model 2000033239Basler
- Length3 m
- Diameter6.2 mm max.
- ManufacturerBasler
- Order number2000033239
$52.61
Ships in 2-3 weeks
0.25 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Genuine Basler premium (P) USB 3.0 data cable, 3 m, for Basler ace and ace 2 USB3 Vision cameras. The Micro-B plug locks to the camera with two screws to hold it against vibration; the Type A plug goes to the PC. Rated for fixed installation, not for drag chains or robot arms.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Manufacturer | Basler |
|---|---|
| Order number | 2000033239 |
| Transfer rate | USB 3.0: 5 Gbps; USB 2.0: 480 Mbps |
| Drag chain / robotics | Not suitable (fixed installation only) |
| Compatible cameras | Basler ace, ace 2 |
| Conformity | CE (includes RoHS), UL Listed (raw cable) |
| Warranty | 3 years (Basler) |
Interfaces and I/O
| Camera-side connector | Micro-B with screw lock |
|---|---|
| Host-side connector | Type A, USB-IF-compliant |
| Cable diameter | 6.2 mm max. |
Environment and compliance
| Operating temperature | 70 C max., not moving |
|---|
Mechanical
| Length | 3 m |
|---|---|
| Minimum bending radius | 62 mm, fixed installation |
| Shipping weight | 0.25 kg |
Specifications from Basler's product documentation for the Basler Cable USB 3.0, Micro B sl/A, P (order numbers 2200000204 / 2000033239 / 2000033241). Shipping weight is an estimate for the packed cable.
