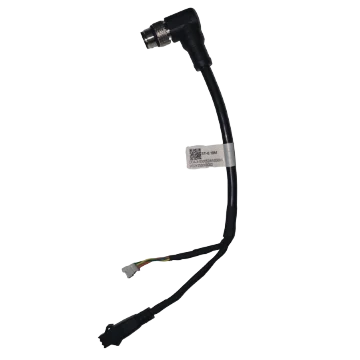

Cable, M12 8-pin connector, Male to SM 3-pin, Female + Pico Blade 4-pin, Male, 0.19 m (LS-CBL-0237)
Model LS-CBL-0237
- Length0.19 m
- End AM12 8-pin connector, Male
- Diameter6 mm
- Max. voltage30 VDC
- JacketPVC
$39.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Cable, M12 8-pin connector, Male to SM 3-pin, Female + Pico Blade 4-pin, Male, 0.19 m. M12 8-pin extension control cable for connecting industrial cameras to external light devices and driving motorized/liquid lenses; currently available in 0.19 m length.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0237 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | M12 8-pin connector, Male |
|---|---|
| End B connector | SM 3-pin, Female + Pico Blade 4-pin, Male |
| Cable diameter | 6 mm |
| Cable mechanical | 28#*2P+28#*4C+AB |
| Cable color | Black |
| Connector durability | >750 cycles |
| Applicable scenario | Static, Waterproof |
Environment and compliance
| Ingress protection | IP67 (with camera mounted) |
|---|---|
| Working temperature | -20°C~ 75°C |
| Certification | RoHS2.0, UL |
Electrical
| Max. voltage | 30 VDC |
|---|
Mechanical
| Length | 0.19 m |
|---|---|
| Min. bending radius | 72 mm |
| Shipping weight (estimated) | 0.31 kg |
