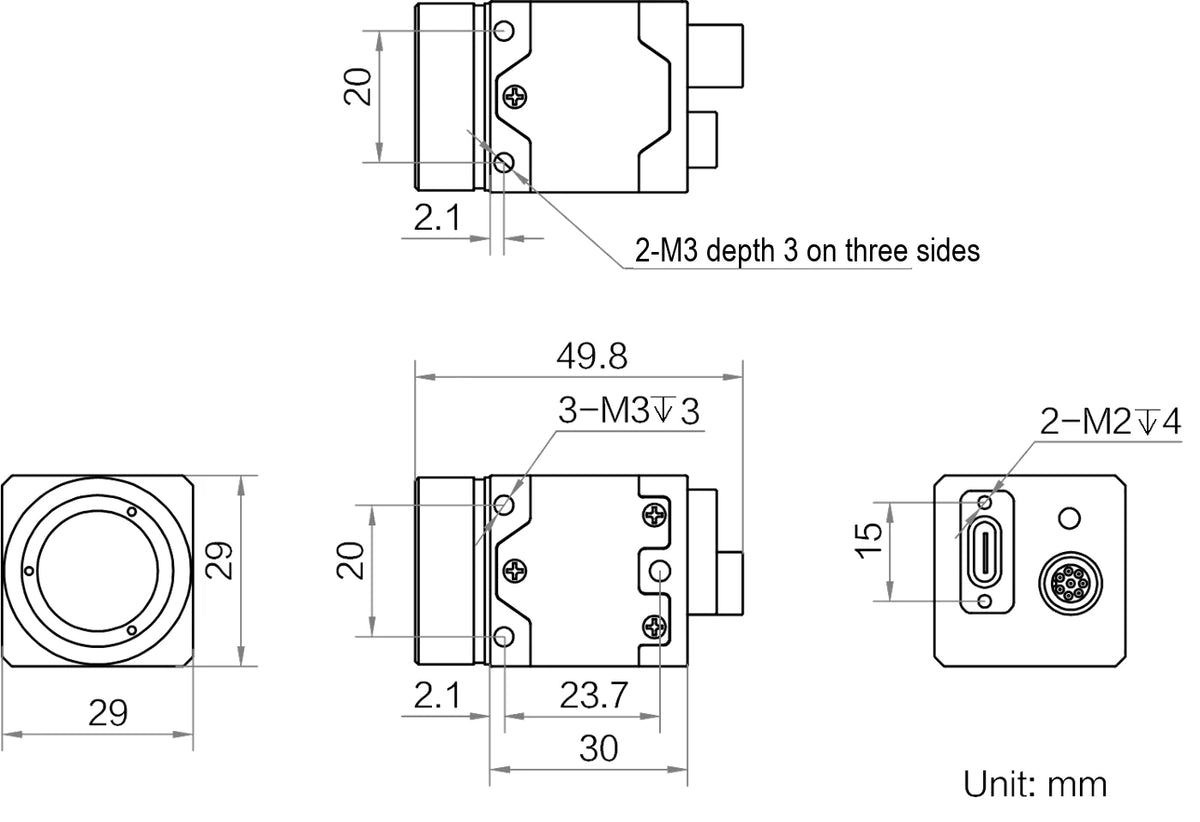

  • MV-CT200R-19UM01-BASE dimensions (mm)

Area scan cameras

Hikrobot MV-CT200R-19UM01-BASE 20 MP USB 3.0 area scan camera, Gen 3, Mono, BASE

Model MV-CT200R-19UM01-BASEHikrobot

  • Resolution5472 × 3648
  • SensorCMOS, rolling shutter
  • InterfaceUSB 3.0, compatible with USB 2.0
  • Speed19.3 fps @ 5472 × 3648 Mono 8
  • Lens mountC-mount
  • Mono / colourMono
$1,629.00

Ships in 2-3 weeks

0.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CT200R-19UM01-BASE: resolution 5472 x 3648; sensor type CMOS, rolling shutter; sensor size 1”; max. frame rate 19.3 fps @ 5472 x 3648 Mono 8.

Hikrobot MV-CT200R-19UM01-BASE 20 MP USB 3.0 area scan camera, Gen 3, Mono, BASE.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CT200R-19UM01-BASE
BrandHikrobot
CompatibilityUSB3 Vision, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelSony IMX183
Pixel size2.4 μm × 2.4 μm
Sensor size1”
Resolution5472 × 3648
Max. frame rate19.3 fps @ 5472 × 3648 Mono 8
Dynamic range66.1 dB
SNR41.3 dB
Gain0 dB ~ 24 dB
Exposure time14 μs ~ 0.86 sec
Exposure modeAuto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceUSB 3.0, compatible with USB 2.0
Data interface typeType-C port
Console interfaceNot supported
Digital I/O8-pin M8 connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2)
Client softwareMVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating systemWindows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply9 VDC to 24 VDC, supports USB3.0 power supply and PoE
Power consumptionTyp. 1.6 W @ 5 VDC; (USB 3.0 provides power supply)

Mechanical

Lens mountC-Mount
Dimension29 mm × 29 mm × 30 mm
WeightApprox. 72 g
Shipping weight (estimated)0.20 kg

Engineering data

Field of view and resolution with the MV-CT200R-19UM01-BASE

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area13.13 × 8.76 mm1" optical format
Lens image circle needed≥ Ø 15.8 mmC-mount
Pixel pitch2.4 µm5472 x 3648 px
Image data at max frame rate385 MB/sCalculated: 19.3 fps × 5472 × 3648 px at 8 bit · USB3 carries 625 MB/s nominal
With a 16 mm lens at 500 mm410 × 274 mm0.075 mm per pixel
Dynamic range66.1 dB
SNR41.3 dB
Power consumption1.6 Wtyp. at 5 V DC
ShutterRolling
Exposure range14 µs to 0.86 s
Weight72 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm492 × 328 mm0.09 mm per pixel821 × 548 mm0.15 mm per pixel1641 × 1095 mm0.3 mm per pixel
12 mm328 × 219 mm0.06 mm per pixel547 × 365 mm0.1 mm per pixel1094 × 730 mm0.2 mm per pixel
16 mm246 × 164 mm0.045 mm per pixel410 × 274 mm0.075 mm per pixel821 × 548 mm0.15 mm per pixel
25 mm158 × 105 mm0.029 mm per pixel263 × 175 mm0.048 mm per pixel525 × 350 mm0.096 mm per pixel
35 mm113 × 75.1 mm0.021 mm per pixel188 × 125 mm0.034 mm per pixel375 × 250 mm0.069 mm per pixel
50 mm78.8 × 52.6 mm0.014 mm per pixel131 × 87.6 mm0.024 mm per pixel263 × 175 mm0.048 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 17.6 mm diagonal; this camera's sensor is 15.8 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 15.8 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 15.8 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 15.8 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 15.8 mm

Covers up to 17.6 mm diagonal; this camera's sensor is 15.8 mm

Cables and frame grabbers

5 m USB3.0 camera cable

LS-CBL-0218

  • Type USB3.0 Cable
  • Construction Standard (straight, not high-flex)

$54.00

Ships in 3-4 weeks

Other models in the CT Series USB3.0 Area Scan Camera series

See all 68 models
