Cables

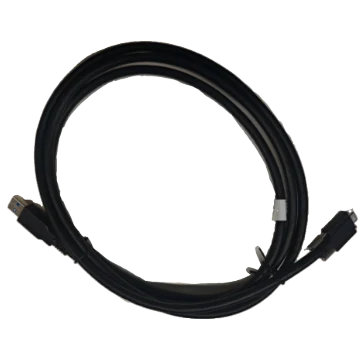

Camera Data Cable, Type-C male, screw locking to A male, 1 m (LS-CBL-0128)
Model LS-CBL-0128
- Length1 m
- End AType-C male, screw locking
- End BA male
- Diameter6.8 mm
- Max. voltage5 VDC
- JacketPVC
$39.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, Type-C male, screw locking to A male, 1 m. USB3.0 standard cable for data transmission and power to HDMI measurement microscope cameras; available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

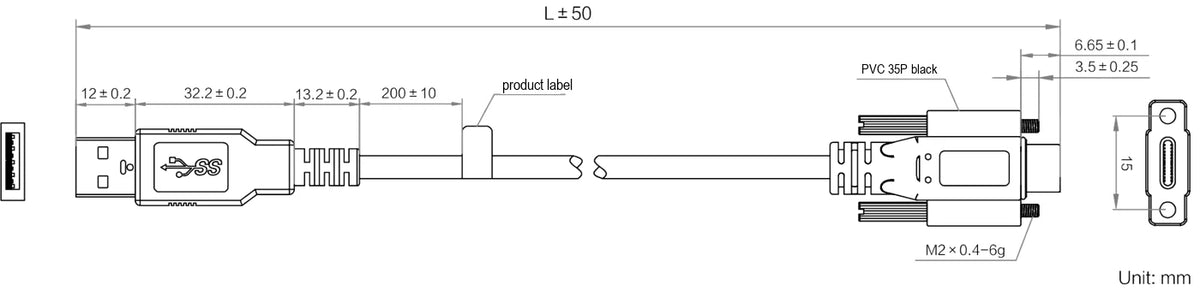

Specifications
General
| Model | LS-CBL-0128 |
|---|---|
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | Type-C male, screw locking |
|---|---|
| End B connector | A male |
| Cable diameter | 6.8 mm |
| Cable mechanical | (25AWG*1P+AD)*2C+26AWG*1P+20AWG*2C |
| Cable color | Black |
| Connector durability | >750 cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Ingress protection | Type-C end meets IP67 when mated with the camera |
|---|---|
| Working temperature | -20 °C~ 80 °C |
| Certification | RoHS, UL |
Electrical
| Max. voltage | 5 VDC |
|---|
Mechanical
| Length | 1 m |
|---|---|
| Min. bending radius | 82 mm |
| Shipping weight (estimated) | 0.31 kg |
