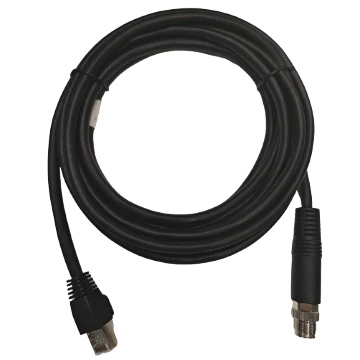

Camera Data Cable, M12 8-pin connector, Male to RJ45, 3 m, drag-chain and robot-arm use (LS-CBL-0080)
  • Camera Data Cable, M12 8-pin connector, Male to RJ45, 3 m, drag-chain and robot-arm use (LS-CBL-0080)
  • LS-CBL-0069 dimensions (mm)

Cables

Camera Data Cable, M12 8-pin connector, Male to RJ45, 3 m, drag-chain and robot-arm use (LS-CBL-0080)

Model LS-CBL-0080

  • Length3 m
  • End AM12 8-pin connector, Male
  • End BRJ45
  • Diameter6.5 mm
  • Max. voltage30 VDC
  • JacketPVC
$39.00

Ships in 2-3 weeks

0.31 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Camera Data Cable, M12 8-pin connector, Male to RJ45, 3 m, drag-chain and robot-arm use (LS-CBL-0080)LS-CBL-0080

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Camera Data Cable, M12 8-pin connector, Male to RJ45, 3 m. M12 8-pin X-coded waterproof ultra-flex aviation-connector Ethernet cable for data transmission with GigE cameras; available in multiple lengths

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CBL-0080
JacketPVC
Max. ±180° torsional cycles5 million times
PackagingIndividual package

Interfaces and I/O

End A connectorM12 8-pin connector, Male
End B connectorRJ45
Cable diameter6.5 mm
Cable mechanical26#*4P+AB
Cable colorBlack
Connector durability>750 cycles
Applicable scenarioStatic/drag-chain/robot arm, Waterproof

Environment and compliance

Ingress protectionIP67 (with camera mounted)
Working temperature-20°C~ 75°C
CertificationRoHS2.0, UL

Electrical

Max. voltage30 VDC

Mechanical

Length3 m
Min. bending radius78 mm
Max. U-type bending cycles10 million times
Max. ±90° bending cycles3 million times
Shipping weight (estimated)0.31 kg
