Cables

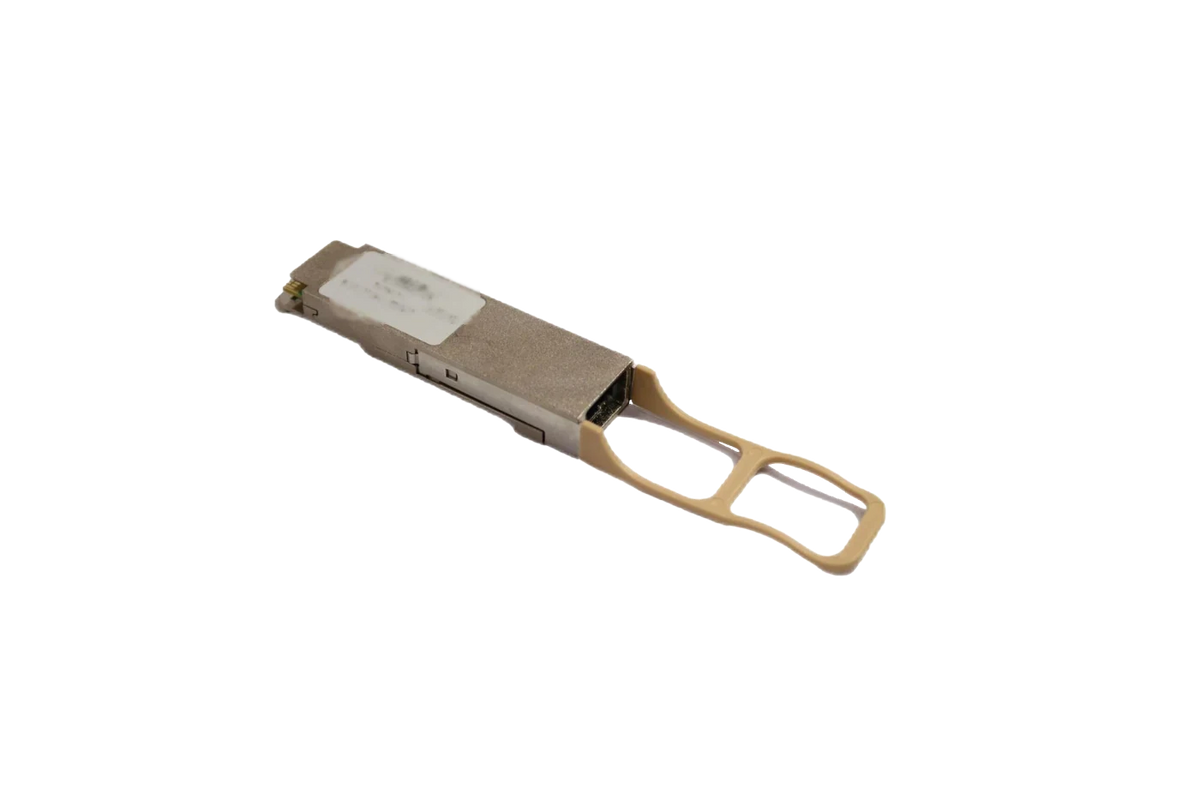

Camera Data Cable, 850 nm (LS-CBL-0026)
Model LS-CBL-0026
- InterfaceQSFP28
- TypeCamera data cables
- Central wavelength850 nm
- Connector typeMPO
$39.00
Ships in 2-3 weeks
0.31 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Camera Data Cable, 850 nm. Compliant with IEEE 802.3bm for 50G MPO fiber connections QSFP28 optical module: high density, low power and cost-effective
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CBL-0026 |
|---|---|
| Transmission speed | 50 Gbps |
| Transmission distance | 100 m |
| Packaging | Individual package |
Interfaces and I/O
| Interface type | QSFP28 |
|---|---|
| Connector type | MPO |
Light
| Central wavelength | 850 nm |
|---|
Environment and compliance
| Working temperature | 0°C ~ 70°C |
|---|---|
| Certification | RoHS |
Electrical
| Transmit power | -8.4 ~ 2.4 dBm |
|---|---|
| Received power | -10.3 ~ 2.4 dBm |
Mechanical
| Shipping weight (estimated) | 0.31 kg |
|---|
