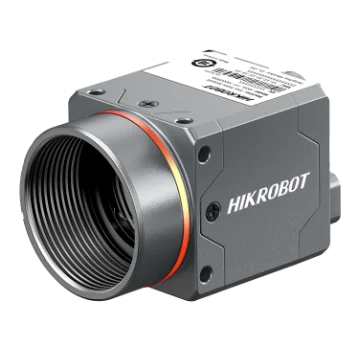

Hikrobot MV-CT016G-249UC01-BASE 1.6 MP USB 3.0 area scan camera, Gen 3, Color, BASE

Area scan cameras

Hikrobot MV-CT089G-42UC01-BASE 8.9 MP USB 3.0 area scan camera, Gen 3, Color, BASE

Model MV-CT089G-42UC01-BASEHikrobot

Resolution4096 × 2160
SensorCMOS, global shutter
InterfaceUSB 3.0, compatible with USB 2.0
Speed42 fps @4096 × 2160 Bayer GB 8
Lens mountC-mount
Mono / colourColor

$1,149.00

Ships in 2-3 weeks

0.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CT089G-42UC01-BASE 8.9 MP USB 3.0 area scan camera, Gen 3, Color, BASE. PRO and MAX versions feature fully waterproof connectors PRO and MAX versions feature precise temperature control for fast thermal equilibrium

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CT089G-42UC01-BASE
Brand	Hikrobot
Compatibility	USB3 Vision, GenICam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Stacked BSI
Pixel size	3.45 μm × 3.45 μm
Sensor size	1”
Resolution	4096 × 2160
Max. frame rate	42 fps @4096 × 2160 Bayer GB 8
Dynamic range	67.4 dB
SNR	43.9 dB
Gain	0 dB ~ 12 dB
Exposure time	20 μs ~ 10 sec
Exposure mode	Auto exposure supported, Manual exposure, One-shot exposure mode, Trigger Width and Trigger Controlled supported
Mono/color	Color
Pixel format	Mono 8; Bayer GB 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	USB 3.0, compatible with USB 2.0
Data interface type	Type-C port
Console interface	Not supported
Digital I/O	8-pin M8 connector for power and I/O: 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bi-directional configurable non-isolated I/O (Line 2)
Client software	MVS or third-party software meeting with USB3 Vision Protocol

Environment and compliance

Ingress protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply	9 VDC to 24 VDC, supports USB3.0 power supply and PoE
Power consumption	2 W @ 5 VDC (USB 3.0 powered)

Mechanical

Lens mount	C-Mount

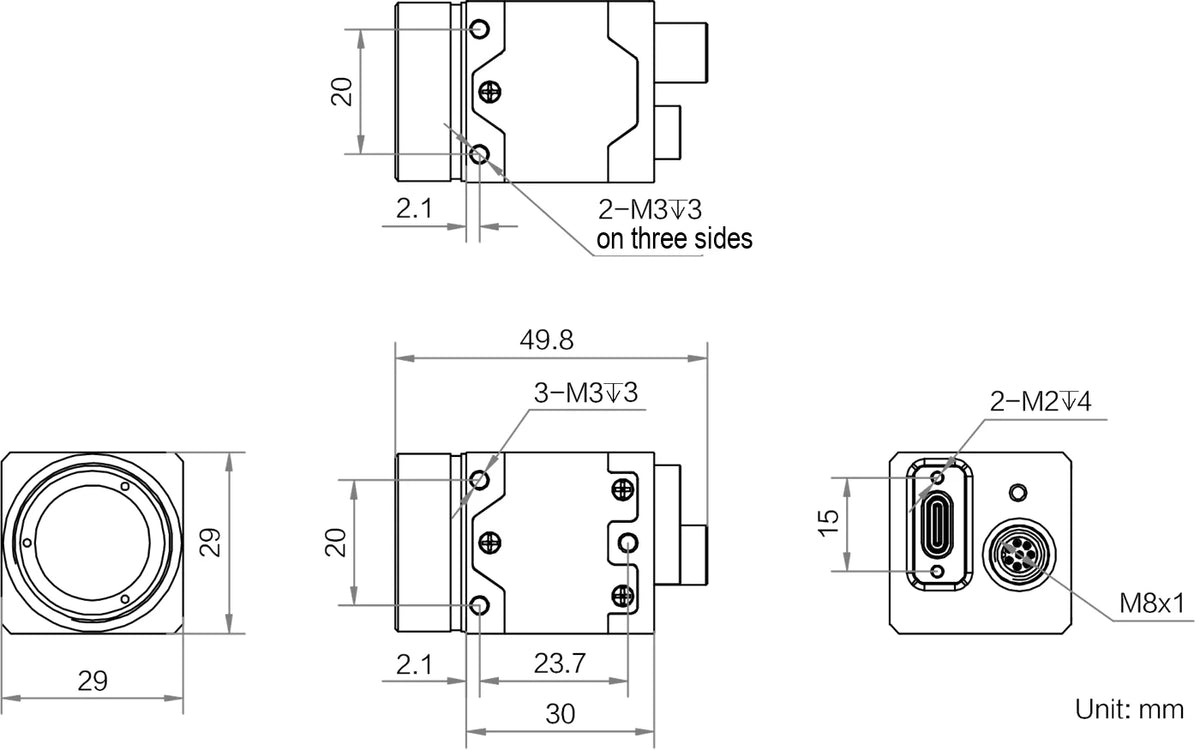

Dimension	29 mm × 29 mm × 30 mm
Weight	Approx. 72 g
Shipping weight (estimated)	0.20 kg

Downloads

Features

PRO and MAX versions feature fully waterproof connectors
PRO and MAX versions feature precise temperature control for fast thermal equilibrium
PRO color version features multispectral fusion with automatic color correction
MAX version integrates lens and light control: lens focusing and lighting control in one unit
Type-C interface for higher transmission bandwidth
Compatible with USB3 Vision and the GenICam standard for seamless integration with third-party software
