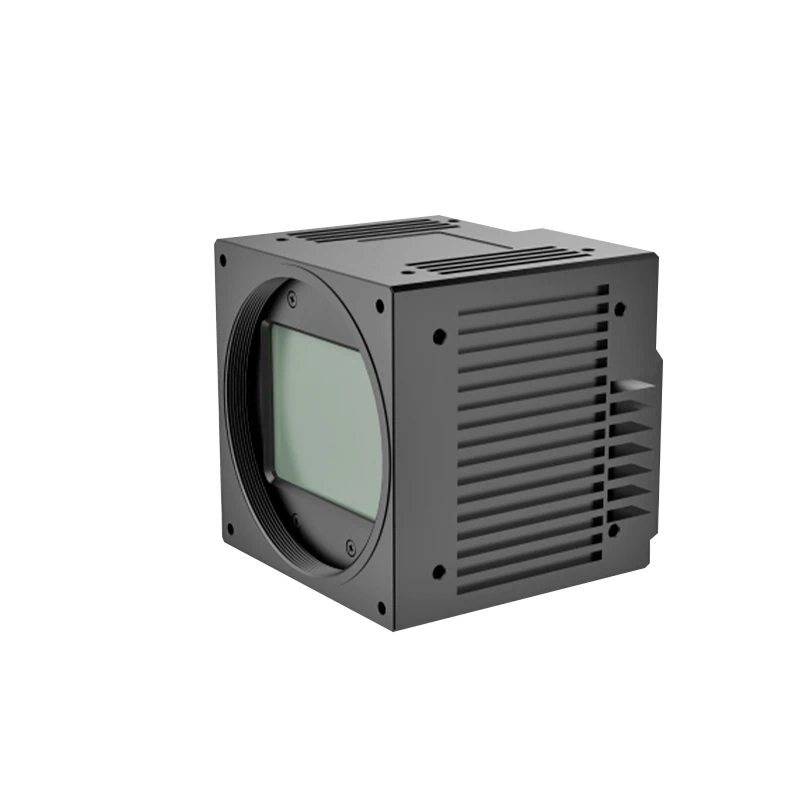

10 GigE area scan camera, 46 MP, 10GigE, Color/Mono (LS-CMR-0323)

Model LS-CMR-0323

Resolution8240X5628
SensorCMOS
Speed24
Lens mountM58
Pixel size2.315μm

$7,269.00

Ships in 2-3 weeks

0.8 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

10 Gigabit network area scan cameras from 0.5MP to 65MP (selection table up to 100MP) for high frame rate and high resolution requirements. Widely used in PCB, screen detection, lithium battery and railway.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-CMR-0323
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Driver	Directshow component Halcon special component Labview special driver OCX component TWAIN component
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Acquisition mode	Continuous/soft trigger/hard trigger
User-defined data area	2K Bytes
Vision standard	GigE Vision V1.2, GenICam
Filter	Black and white cameras: double-sided AR antireflection film as standard; color cameras: 650nm infrared cut filter as standard
Sensitivity	87.69mv 1/30s
Frame buffer	256M Bytes
Programming language packages	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other Features	Support arbitrary size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, and more

Sensor and imaging

Effective pixels	47MP
Sensor	CMOS
Shutter	Rolling
Max resolution	8240X5628
Pixel size	2.315μm
Frame rate (FPS)	24
Mini exposure	0.0072ms
Sensor model	IMX492
Sensor	1.4" CMOS
Resolution @ frame rate	8240X5628@24FPS
Output pixel width	12bit
Maximum gain (multiple)	22
Exposure time range (ms)	0.007-5000
Pixel	47MP
Sensor type	CMOS
Shutter method	Rolling
Maximum resolution	8240X5628
Minimum exposure	0.0072ms
Pixel size (detail)	2.315μm×2.315μm
Pixel bit depth	12bit
Sensor format	1.4"

Interfaces and I/O

GPIO	2 inputs and 2 outputs, 1 configurable input and output, support trigger and flash sync mode
Data interface	10G copper cable 10GBase-T, compatible with 100M/1G/2.5G/5G
Video output format	Mono 8/ Mono 12 Bayer8/Bayer12 M
Vision standard protocol	GigE Vision , GenICam

Light

Color	Color/Mono
Colour	Color/Mono
Mono / colour	Color/Mono

Environment and compliance

Working temperature @ humidity	0~50℃ @ 20%~80% (no condensation)
Storage temperature @ humidity	-30~60℃ @ 20%~95% (no condensation)
Operating temperature	0~50°
Operating humidity	20~80% (no condensation)
Storage temperature	-30~60°
Storage humidity	20~95%(no condensation)

Computing

Operating system	WIINXP, WIN7/8/10 32@64 bit system, Linux and ARM Linux driver, Android platform driver, MAC OS system
Drive program	Directshow component Halcon special component Labview special drive OCX component TWAIN component

Electrical

Power	<12W
Power supply	External 12V power supply
Voltage	External 12V power supply

Mechanical

Target size	1.4"
AD width	12bit
Lens mount	M58-Mount, optional F-Mount adapter ring (flange distance 11.48mm)
Dimension	64(mm)X64(mm)X59.5(mm) (excluding lens mount and rear shell interface)
Weight	500g
Dimensions	64×64×59.5mm (without lens mount and rear shell interface)

Downloads

Datasheet (PDF)LS-CMR-0323 · 1.8 MB

Features

Reserved fan interface to control camera temperature
0.5MP to 100MP pixels with a maximum frame rate of 1594FPS
Standard 10 Gigabit network interface; stable communication over Cat6 (super six) network cable
Cost greatly reduced compared with CameraLink interface plus capture card
Transmission distance up to 100 meters, backward compatible with Gigabit Ethernet
Effective bandwidth 1200MByte, 10 times Gigabit network, greatly reducing image transmission time and delay
Supports GigE Vision and GenICam, same SDK as the Gigabit network camera, shortening development cycle
Using standard 10 Gigabit network interface design.
The maximum transmission distance up to 100 meters , compatible with gigabit network.
Effective bandwidth of 1200MByte , which is 10 times that of Gigabit network.
Supports PC Linux system and ARM Linux system.
Compatible with Vision protocol and other brand vision software.

Applications

PCB
Screen detection
Lithium battery
Railway
