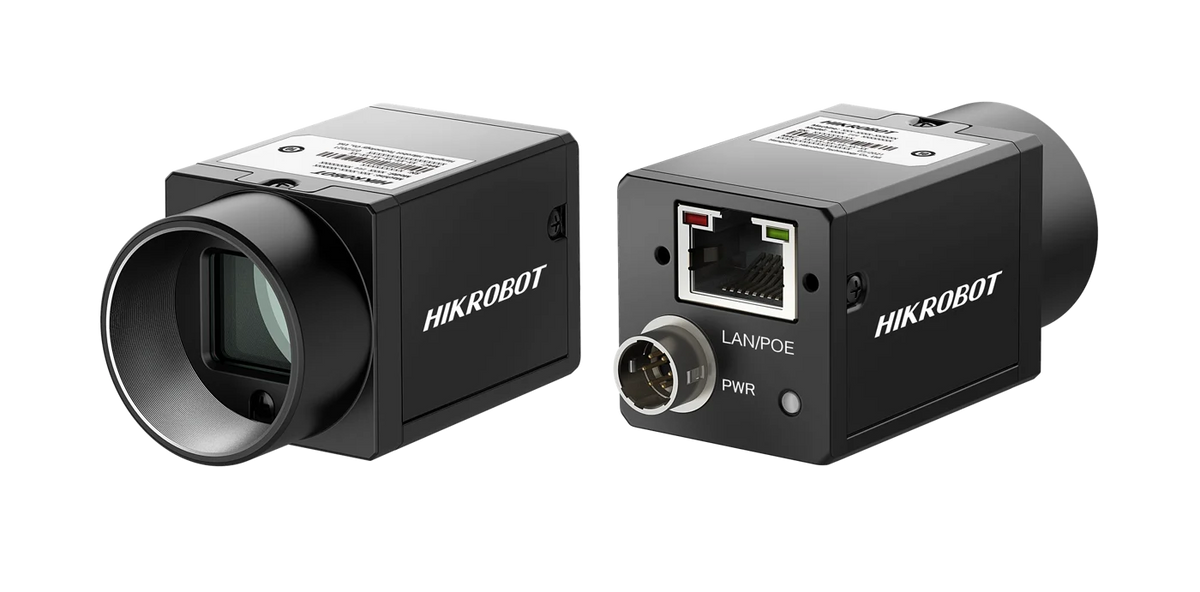

Hikrobot MV-CU060-60GM V2 6MP Area Scan Camera, GigE, Mono
  • Hikrobot MV-CU060-60GM V2 6MP Area Scan Camera, GigE, Mono

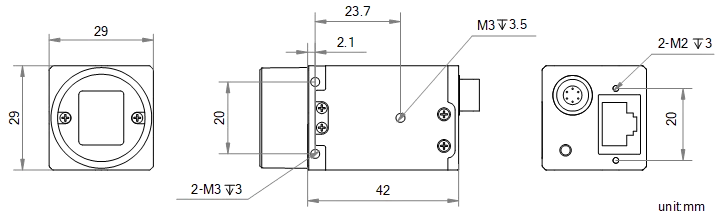

  • MV-CU060-60GM V2 dimensions (mm)

Area scan cameras

Hikrobot MV-CU060-60GM V2 6MP Area Scan Camera, GigE, Mono

Model MV-CU060-60GM V2Hikrobot

  • Resolution3200 × 1944
  • SensorCMOS, rolling shutter
  • Speed19 fps @ 3200 × 1944 Mono 8
  • Lens mountC-mount
  • Mono / colourMono
  • Pixel size2 μm × 2 μm
$489.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CU060-60GM V2: resolution 3200 x 1944; sensor type CMOS, rolling shutter; sensor size 1/2.4"; max. frame rate 19 fps @ 3200 x 1944 Mono 8.

Hikrobot MV-CU060-60GM V2 6MP Area Scan Camera, GigE, V2, Mono. Adopts low consumption design with stable performance. Supports auto or manual adjustment of gain, exposure time, and manual adjustment of LUT, Gamma correction, etc.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CU060-60GM V2
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelBSI
Pixel size2 μm × 2 μm
Sensor size1/2.4"
Resolution3200 × 1944
Max. frame rate19 fps @ 3200 × 1944 Mono 8
Dynamic range64 dB
SNR33.8 dB
Gain0 dB to 24 dB
Exposure time52 μs to 10 sec
Mono/colorMono
Exposure modeOff/Once/Continuous exposure mode
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, PoE is optional
Power consumptionTyp. 1.6 W @ 12 VDC

Mechanical

Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Shipping weight (estimated)0.24 kg

Engineering data

Field of view and resolution with the MV-CU060-60GM V2

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area6.4 × 3.89 mm1/2.4" optical format
Lens image circle needed≥ Ø 7.5 mmC-mount
Pixel pitch2 µm3200 x 1944 px
Image data at max frame rate118 MB/sCalculated: 19 fps × 3200 × 1944 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm200 × 122 mm0.062 mm per pixel
Dynamic range64 dB
SNR33.8 dB
Power consumption1.6 Wtyp. at 12 V DC
ShutterRolling
Exposure range52 µs to 10 s
Weight100 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm240 × 146 mm0.075 mm per pixel400 × 243 mm0.125 mm per pixel800 × 486 mm0.25 mm per pixel
12 mm160 × 97.2 mm0.05 mm per pixel267 × 162 mm0.083 mm per pixel533 × 324 mm0.167 mm per pixel
16 mm120 × 72.9 mm0.037 mm per pixel200 × 122 mm0.062 mm per pixel400 × 243 mm0.125 mm per pixel
25 mm76.8 × 46.7 mm0.024 mm per pixel128 × 77.8 mm0.04 mm per pixel256 × 156 mm0.08 mm per pixel
35 mm54.9 × 33.3 mm0.017 mm per pixel91.4 × 55.6 mm0.029 mm per pixel183 × 111 mm0.057 mm per pixel
50 mm38.4 × 23.3 mm0.012 mm per pixel64 × 38.9 mm0.02 mm per pixel128 × 77.8 mm0.04 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 9.5 mm diagonal; this camera's sensor is 7.5 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 7.5 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 7.5 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 7.5 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 7.5 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 7.5 mm
