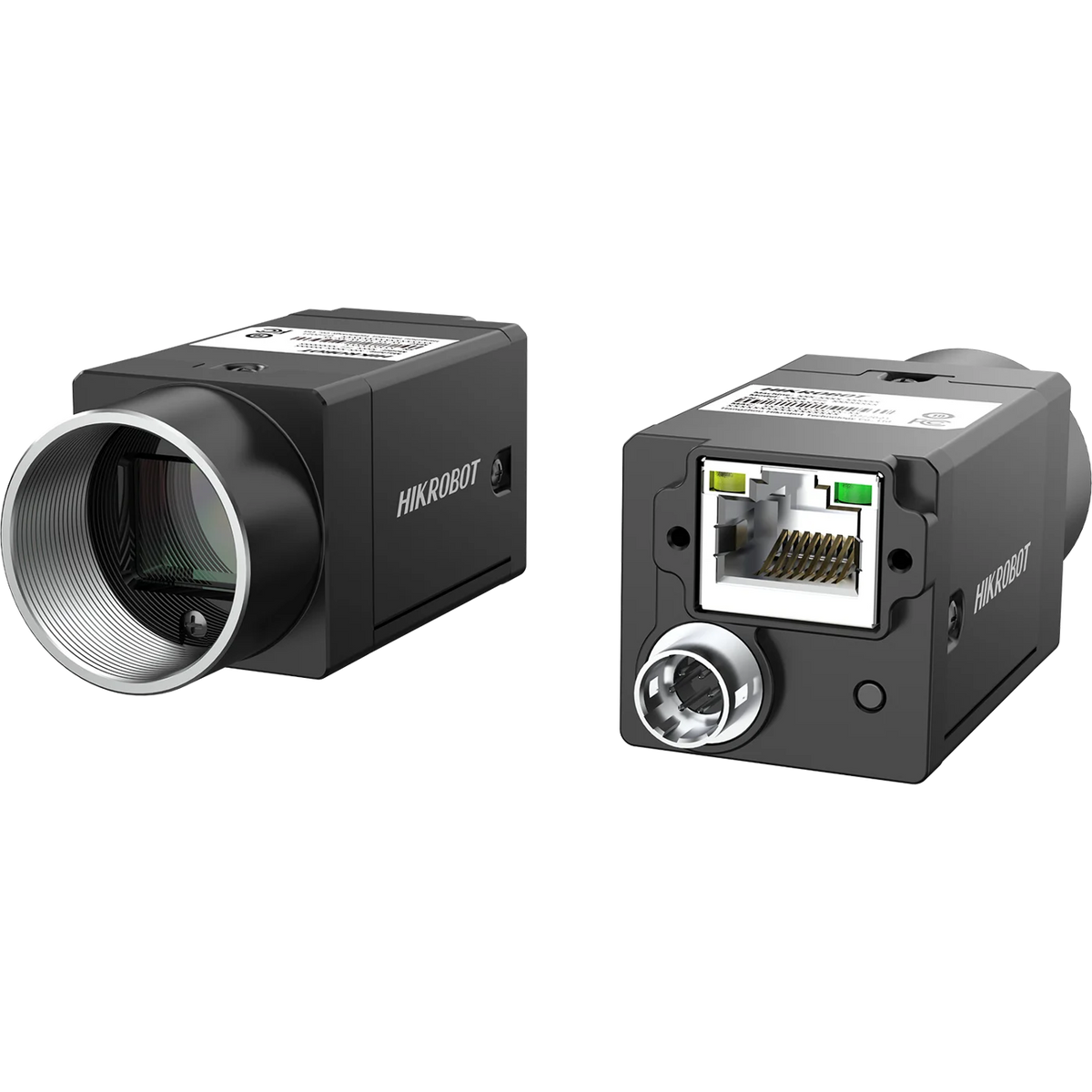

Hikrobot MV-CU050-90GC 5MP Area Scan Camera, GigE, GMAX2505, Color
Model MV-CU050-90GCHikrobot
- Resolution2600 × 2160
- SensorCMOS, global shutter
- Speed21 fps @2600 × 2160 Bayer BG 8
- Lens mountC-mount
- Mono / colourColor
- Pixel size2.5 μm × 2.5 μm
$529.00
Quoted price: add to quote for lead time and volume pricing.
End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.
Ships in 2-3 weeks
0.26 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CU050-90GC 5MP Area Scan Camera, GigE, GMAX2505, Color. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CU050-90GC |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | GMAX2505 |
| Pixel size | 2.5 μm × 2.5 μm |
| Sensor size | 1/2" |
| Resolution | 2600 × 2160 |
| Max. frame rate | 21 fps @2600 × 2160 Bayer BG 8 |
| Dynamic range | 63.8 dB |
| SNR | 37 dB |
| Gain | 0 dB to 12 dB |
| Exposure time | 3 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer BG 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP30 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, PoE is optional |
|---|---|
| Power consumption | Typ. 2.5 W@12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|

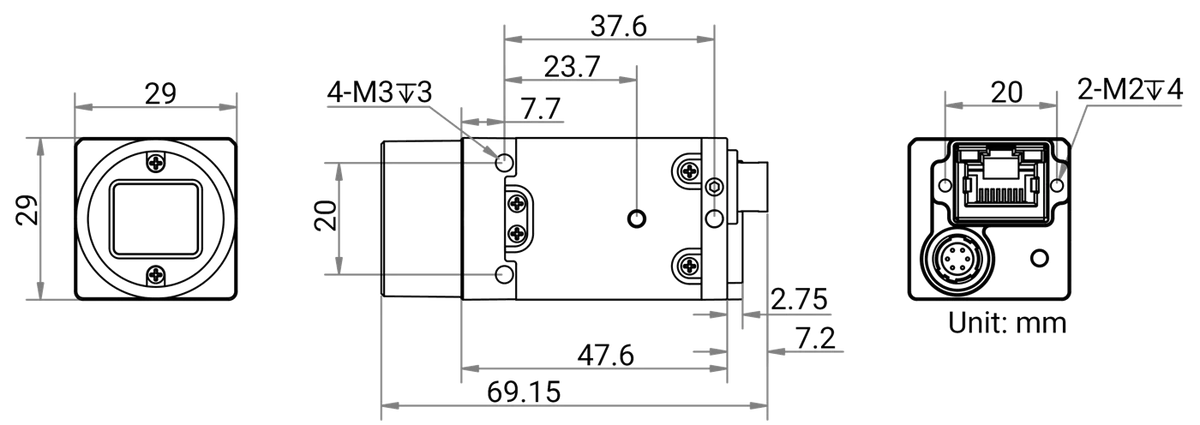

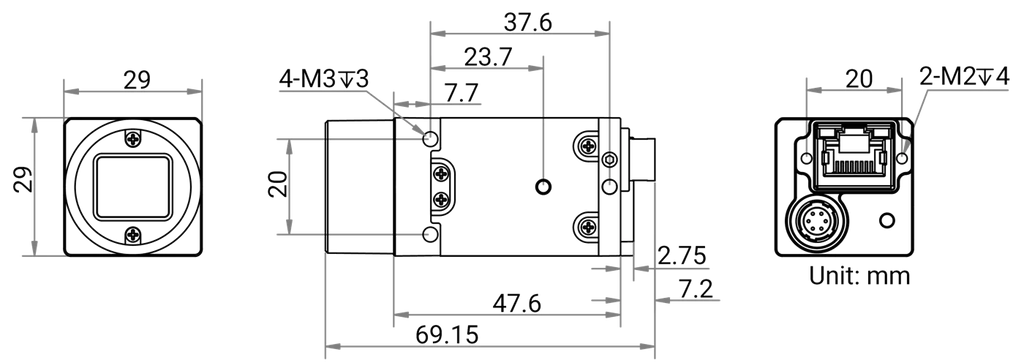

| Dimension | 29 mm × 29 mm × 47.6 mm (1.1" × 1.1" × 1.9") |
| Weight | Approx. 117 g (0.3 lb.) |
| Shipping weight (estimated) | 0.26 kg |
