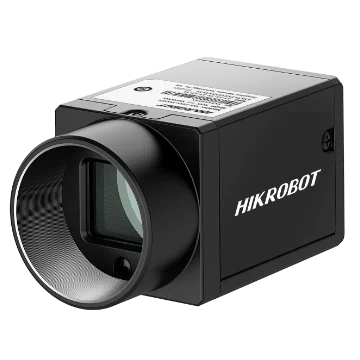

Hikrobot MV-CU013-A1GC 1.3MP Area Scan Camera, GigE

Area scan cameras

Hikrobot MV-CU120-10GM(NPOE) V2 12 MP GigE area scan camera, IMX226, V2, Mono, Without PoE

Model MV-CU120-10GM(NPOE) V2Hikrobot

Resolution4024 × 3036
SensorCMOS, rolling shutter
Speed9.7 fps @4024 × 3036 Mono 8
Lens mountC-mount
Mono / colourMono
Pixel size1.85 μm × 1.85 μm

$689.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CU120-10GM(NPOE) V2 12 MP GigE area scan camera, IMX226, V2, Mono, Without PoE. Optimized hardware design: stable performance and low power consumption Automatic and manual adjustment of gain, exposure time and other parameters

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CU120-10GM(NPOE) V2
Brand	Hikrobot
Compatibility	GigE Vision 2.0, GenlCam

Sensor and imaging

Sensor type	CMOS, rolling shutter
Sensor model	Sony IMX226
Pixel size	1.85 μm × 1.85 μm
Sensor size	1/1.7''
Resolution	4024 × 3036
Max. frame rate	9.7 fps @4024 × 3036 Mono 8
Dynamic range	70.5 dB
SNR	40.5 dB
Gain	0 dB ~ 20 dB
Exposure time	34 μs ~ 2 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10/11 32/64bits, Linux 32/64bits

Electrical

Power supply	9 VDC to 24 VDC, PoE is optional
Power consumption	1.78 W@12 VDC

Mechanical

Lens mount	C-Mount
Dimension	29 mm × 29 mm × 42 mm
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Optimized hardware design: stable performance and low power consumption
Automatic and manual adjustment of gain, exposure time and other parameters
Supports hardware trigger, software trigger and free-run modes
Gigabit Ethernet interface: up to 100 m transmission without a repeater
Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software platforms
