Hikrobot MV-CU200-20GC(NPOE) V2 20 MP GigE area scan camera, AR2020, Color, Without PoE
  • Hikrobot MV-CU200-20GC(NPOE) V2 20 MP GigE area scan camera, AR2020, Color, Without PoE
  • MV-CU200-20GC(NPOE) V2 dimensions (mm)

Area scan cameras

Hikrobot MV-CU200-20GC(NPOE) V2 20 MP GigE area scan camera, AR2020, Color, Without PoE

Model MV-CU200-20GC(NPOE) V2Hikrobot

  • Resolution5120 × 3840
  • SensorCMOS, rolling shutter
  • Speed5.9 fps @ 5120 × 3840 Bayer GR 8
  • Lens mountC-mount
  • Mono / colourColor
  • Pixel size1.4 μm × 1.4 μm
$879.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

lumaspecvision.com/products/lumaspec-mv-cu200-20gc-npoe-v2

The most pixels, for the finest detail or the largest field at the same detail: MV-CU200-20GC(NPOE) V2, the colour version, is the highest-resolution of the 12 resolutions in this series, with a 5120 x 3840 (20 MP) sensor.

MV-CU200-20GC(NPOE) V2: resolution 5120 x 3840; sensor type CMOS, rolling shutter; sensor size 1/1.8"; dynamic range 60 dB; power consumption 2 W @ 12 VDC.

Hikrobot MV-CU200-20GC(NPOE) V2 20 MP GigE area scan camera, V2, AR2020, Color, Without PoE.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)RoHSCEKC

Specifications

General

ModelMV-CU200-20GC(NPOE) V2
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelAR2020
Pixel size1.4 μm × 1.4 μm
Sensor size1/1.8"
Resolution5120 × 3840
Max. frame rate5.9 fps @ 5120 × 3840 Bayer GR 8
Dynamic range60 dB
SNR39 dB
Gain0 dB ~ 48 dB
Exposure time53 μs ~ 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatBayer GR 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationNot supported
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationRoHS, CE, KC

Computing

Operating systemWindows 7/10 32/64bits, Windows 11 64 bits, Linux 32/64bits

Electrical

Power supply9 VDC to 24 VDC, PoE is optional
Power consumption2 W @ 12 VDC

Mechanical

Lens mountC-Mount
Dimension29 mm × 29 mm × 42 mm
WeightApprox. 100 g (0.2 lb.)
Shipping weight (estimated)0.24 kg

Engineering data

Field of view and resolution with the MV-CU200-20GC(NPOE) V2

Sensor area7.17 × 5.38 mm1/1.8" optical format
Lens image circle needed≥ Ø 9 mmC-mount
Pixel pitch1.4 µm5120 x 3840 px
Image data at max frame rate116 MB/sCalculated: 5.9 fps × 5120 × 3840 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm224 × 168 mm0.044 mm per pixel
Dynamic range60 dB
SNR39 dB
Power consumption2 Wat 12 V DC
ShutterRolling
Exposure range53 µs to 10 s
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm269 × 202 mm0.053 mm per pixel448 × 336 mm0.088 mm per pixel896 × 672 mm0.175 mm per pixel
12 mm179 × 134 mm0.035 mm per pixel299 × 224 mm0.058 mm per pixel598 × 448 mm0.117 mm per pixel
16 mm134 × 101 mm0.026 mm per pixel224 × 168 mm0.044 mm per pixel448 × 336 mm0.088 mm per pixel
25 mm86 × 64.6 mm0.017 mm per pixel143 × 108 mm0.028 mm per pixel287 × 215 mm0.056 mm per pixel
35 mm61.5 × 46.1 mm0.012 mm per pixel102 × 76.9 mm0.02 mm per pixel205 × 154 mm0.04 mm per pixel
50 mm43 × 32.3 mm0.008 mm per pixel71.7 × 53.8 mm0.014 mm per pixel143 × 108 mm0.028 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $1,148.00

Lenses for this C-mount camera

This camera's 9 mm sensor diagonal uses 100 % of the lens's 9 mm image circle

This camera's 9 mm sensor diagonal uses 100 % of the lens's 9 mm image circle

This camera's 9 mm sensor diagonal uses 100 % of the lens's 9 mm image circle

This camera's 9 mm sensor diagonal uses 100 % of the lens's 9 mm image circle

This camera's 9 mm sensor diagonal uses 100 % of the lens's 9 mm image circle

This camera's 9 mm sensor diagonal uses 100 % of the lens's 9 mm image circle

Cables and frame grabbers

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Before you buy

Questions about the MV-CU200-20GC(NPOE) V2

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CU200-20GC(NPOE) V2?

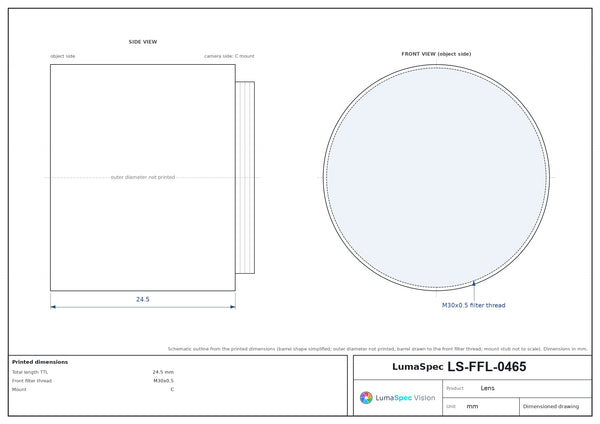

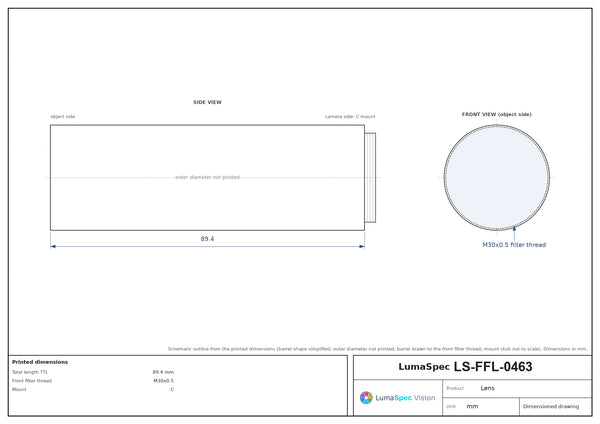

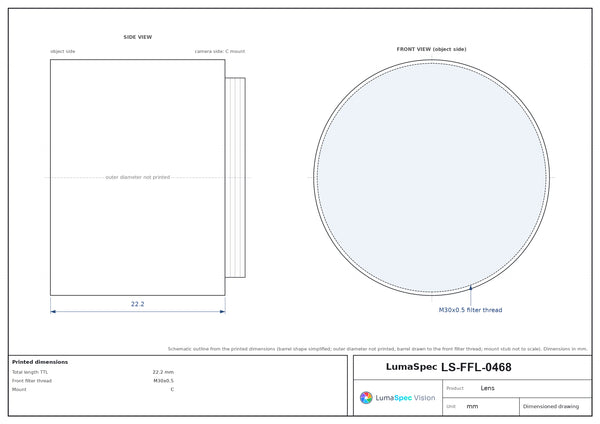

C-mount lenses whose image circle covers its sensor diagonal (about 9 mm): LS-FFL-0465 (25 mm), LS-FFL-0468 (15.8 mm), LS-FFL-0458 (37.2 mm) and LS-FFL-0463 (45.7 mm).

What data rate does the MV-CU200-20GC(NPOE) V2 need over GigE?

About 116 MB/s at its printed 5.9 fps at 5120 x 3840 (8 bits per pixel, calculated), about 93 % of the nominal 125 MB/s GigE link.

Which cables does the MV-CU200-20GC(NPOE) V2 take?

Fit-tested for its GigE interface: LS-CBL-0195 (3 m), LS-CBL-0196 (5 m), LS-CBL-0107 (1 m), LS-CBL-0197 (10 m) and LS-CBL-0102 (3 m).

How does the MV-CU200-20GC(NPOE) V2 connect?

The data interface is Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s).

What I/O does the MV-CU200-20GC(NPOE) V2 have?

The digital I/O is a 6-pin P7 connector that provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

Other models in the CU Series GigE Area Scan Camera series

See all 108 models in the series

How this model compares

  • Same specifications as MV-CU200-20GC(NPOE) except the operating system row.
  • Full-resolution 8-bit frames at 5.9 fps work out to about 116 MB/s, 93% of the 125 MB/s a 1 Gbit/s link carries.
  • Compared with MV-CU200-20GM(NPOE) V2: dynamic range 60 dB here, 61 dB there; sensor Color here, Mono there.
