Hikrobot MV-CU060-10GC(NPOE) V2 6 MP GigE area scan camera, IMX178, Color, Without PoE
  • Hikrobot MV-CU060-10GC(NPOE) V2 6 MP GigE area scan camera, IMX178, Color, Without PoE
  • MV-CU060-10GC(NPOE) V2 dimensions (mm)

Area scan cameras

Hikrobot MV-CU060-10GC(NPOE) V2 6 MP GigE area scan camera, IMX178, Color, Without PoE

Model MV-CU060-10GC(NPOE) V2Hikrobot

  • Resolution3072 × 2048
  • SensorCMOS, rolling shutter
  • Speed19.1 fps @ 3072 × 2048 Bayer RG 8
  • Lens mountC-mount
  • Mono / colourColor
  • Pixel size2.4 μm × 2.4 μm
$499.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

lumaspecvision.com/products/lumaspec-mv-cu060-10gc-npoe-v2

In the upper half of the 12 resolutions of this camera series, MV-CU060-10GC(NPOE) V2, the colour version, has a 3072 x 2048 (6.3 MP) sensor: more pixels than most of the series, for finer detail over the same field.

MV-CU060-10GC(NPOE) V2: resolution 3072 x 2048; sensor type CMOS, rolling shutter; sensor size 1/1.8''; dynamic range 71.3 dB; power consumption 1.7 W @ 12 VDC.

Hikrobot MV-CU060-10GC(NPOE) V2 6 MP GigE area scan camera, IMX178, V2, Color, Without PoE.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)RoHSCEKC

Specifications

General

ModelMV-CU060-10GC(NPOE) V2
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, rolling shutter
Sensor modelSony IMX178
Pixel size2.4 μm × 2.4 μm
Sensor size1/1.8''
Resolution3072 × 2048
Max. frame rate19.1 fps @ 3072 × 2048 Bayer RG 8
Dynamic range71.3 dB
SNR41.3 dB
Gain0 dB ~ 24 dB
Exposure time52 μs ~ 10 s
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatBayer RG 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationRoHS, CE, KC

Computing

Operating systemWindows 7/10/11 32/64bits, Linux 32/64bits

Electrical

Power supply9 VDC to 24 VDC, PoE is optional
Power consumption1.7 W @ 12 VDC

Mechanical

Lens mountC-Mount
Dimension29 mm × 29 mm × 42 mm
WeightApprox. 100 g (0.2 lb.)
Shipping weight (estimated)0.24 kg

Engineering data

Field of view and resolution with the MV-CU060-10GC(NPOE) V2

Sensor area7.37 × 4.92 mm1/1.8" optical format
Lens image circle needed≥ Ø 8.9 mmC-mount
Pixel pitch2.4 µm3072 x 2048 px
Image data at max frame rate120 MB/sCalculated: 19.1 fps × 3072 × 2048 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm230 × 154 mm0.075 mm per pixel
Dynamic range71.3 dB
SNR41.3 dB
Power consumption1.7 Wat 12 V DC
ShutterRolling
Exposure range52 µs to 10 s
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm276 × 184 mm0.09 mm per pixel461 × 308 mm0.15 mm per pixel921 × 615 mm0.3 mm per pixel
12 mm184 × 123 mm0.06 mm per pixel307 × 205 mm0.1 mm per pixel614 × 410 mm0.2 mm per pixel
16 mm138 × 92.2 mm0.045 mm per pixel230 × 154 mm0.075 mm per pixel461 × 308 mm0.15 mm per pixel
25 mm88.4 × 59 mm0.029 mm per pixel147 × 98.4 mm0.048 mm per pixel295 × 197 mm0.096 mm per pixel
35 mm63.2 × 42.2 mm0.021 mm per pixel105 × 70.3 mm0.034 mm per pixel211 × 141 mm0.069 mm per pixel
50 mm44.2 × 29.5 mm0.014 mm per pixel73.7 × 49.2 mm0.024 mm per pixel147 × 98.4 mm0.048 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.

Build the full system with this part

Complete the setup

This part with the first fit-tested pick from each group below. Swap any of them for another card further down.

Set total $698.00

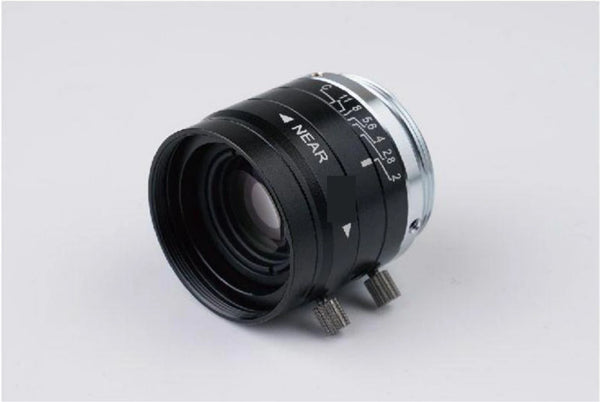

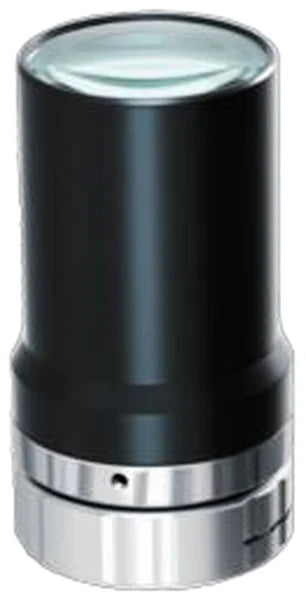

Lenses for this C-mount camera

This camera's 8.9 mm sensor diagonal uses 100 % of the lens's 8.9 mm image circle

This camera's 8.9 mm sensor diagonal uses 100 % of the lens's 8.9 mm image circle

This camera's 8.9 mm sensor diagonal uses 100 % of the lens's 8.9 mm image circle

This camera's 8.9 mm sensor diagonal uses 100 % of the lens's 8.9 mm image circle

This camera's 8.9 mm sensor diagonal uses 99 % of the lens's 9 mm image circle

This camera's 8.9 mm sensor diagonal uses 99 % of the lens's 9 mm image circle

Cables and frame grabbers

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing

Before you buy

Questions about the MV-CU060-10GC(NPOE) V2

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which lenses fit the MV-CU060-10GC(NPOE) V2?

C-mount lenses whose image circle covers its sensor diagonal (about 8.9 mm): LS-FFL-0588 (25 mm), LS-FFL-0530 (35 mm), LS-FFL-0416 (75 mm) and LS-FFL-1568 (6 mm).

What data rate does the MV-CU060-10GC(NPOE) V2 need over GigE?

About 120 MB/s at its printed 19.1 fps at 3072 x 2048 (8 bits per pixel, calculated), about 96 % of the nominal 125 MB/s GigE link.

Which cables does the MV-CU060-10GC(NPOE) V2 take?

Fit-tested for its GigE interface: LS-CBL-0195 (3 m), LS-CBL-0196 (5 m), LS-CBL-0107 (1 m), LS-CBL-0197 (10 m) and LS-CBL-0102 (3 m).

How does the MV-CU060-10GC(NPOE) V2 connect?

Printed: Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s).

What I/O does the MV-CU060-10GC(NPOE) V2 have?

Printed: Digital I/O: 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).

Other models in the CU Series GigE Area Scan Camera series

See all 108 models

How this model compares

  • Same specifications as MV-CU060-10GC(NPOE) except the operating system and temperature rows.
  • Full-resolution 8-bit frames at 19.1 fps work out to about 120 MB/s, 96% of the 125 MB/s a 1 Gbit/s link carries.
  • Compared with MV-CU060-10GM(NPOE) V2: sensor Color here, Mono there.
