Machine vision lenses

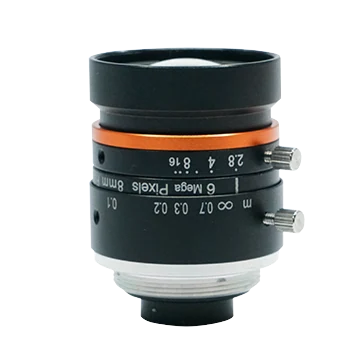

8mm, F2.8, 1/1.8", 6MP Lens, C-Mount (LS-FFL-1354)
Model LS-FFL-1354
- Focal length8 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8 to F16
$69.00
Ships in 2-3 weeks
0.19 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8mm, F2.8, 1/1.8", 6MP Lens, C-Mount. Higher image clarity and contrast ratio Ultra-low distortion and higher relative illumination rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1354 |
|---|---|
| Minimum object distance | 0.1 m |
| Close-up with extension tube | 1 mm tube, near focus: WD 27.54 mm, magnification -0.195; 1 mm tube, far focus: WD 52.6 mm, magnification -0.123 |
Optics
| Focal length | 8 mm |
|---|---|
| F-number | F2.8 to F16 |
| Image size | Ø9 mm (1/1.8") |
| Distortion | 0.049% |
| Field of view | D(8.96mm):58.50°; H(7.38mm):49.46°; V(4.92mm):34.19° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M30.5 × P0.5 |
| Magnification at working distance (mm) | 100: -0.071; 150: -0.050; 200: -0.038; 250: -0.031; 300: -0.026; 350: -0.023; 400: -0.020; 450: -0.018; 500: -0.016; 550: -0.015; 600: -0.013; 650: -0.012; 700: -0.012; 800: -0.010; 900: -0.009; 1000: -0.008 |
| Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm) | 100: 104.96 x 69.56; 150: 149.83 x 99.54; 200: 194.66 x 129.50; 250: 239.47 x 159.45; 300: 284.27 x 189.40; 350: 329.07 x 219.34; 400: 373.86 x 249.28; 450: 418.64 x 279.22; 500: 463.43 x 309.16; 550: 508.21 x 339.09; 600: 552.99 x 369.03; 650: 597.77 x 398.97; 700: 642.56 x 428.90; 800: 732.12 x 488.77; 900: 821.67 x 548.64; 1000: 911.23 x 608.51 |
| Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm) | 100: 88.21 x 65.98; 150: 126.10 x 94.45; 200: 163.95 x 122.88; 250: 201.79 x 151.31; 300: 239.61 x 179.74; 350: 277.44 x 208.16; 400: 315.26 x 236.58; 450: 353.08 x 265.00; 500: 390.90 x 293.42; 550: 428.71 x 321.83; 600: 466.53 x 350.25; 650: 504.34 x 378.67; 700: 542.16 x 407.08; 800: 617.79 x 463.91; 900: 693.42 x 520.74; 1000: 769.04 x 577.57 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimension | Ø33 mm × 34.5 mm (Ø1.3" × 1.4") |
| Weight | 63.3 g (0.1 lb.) |
| Shipping weight (estimated) | 0.19 kg |
