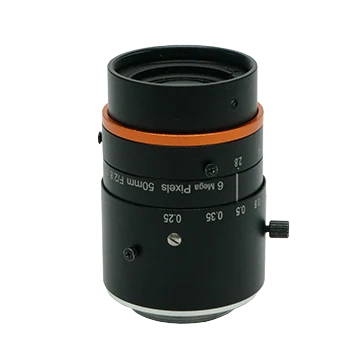

50mm, F2.8, 1/1.8", 6MP Lens, C-Mount (LS-FFL-1360)
Model LS-FFL-1360
- Focal length50 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8 to F16
$69.00
Ships in 2-3 weeks
0.24 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
50mm, F2.8, 1/1.8", 6MP Lens, C-Mount. High image clarity and consistency Ultra-low distortion rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1360 |
|---|---|
| Minimum object distance | 0.25 m |
| Close-up with extension tube | 20 mm tube, near focus: WD 108.6 mm, magnification -0.645; 20 mm tube, far focus: WD 146.7 mm, magnification -0.427; 10 mm tube, near focus: WD 144.4 mm, magnification -0.433; 10 mm tube, far focus: WD 247.9 mm, magnification -0.231; 5 mm tube, near focus: WD 179.9 mm, magnification -0.327; 5 mm tube, far focus: WD 410.9 mm, magnification -0.133; 2 mm tube, near focus: WD 215.1 mm, magnification -0.263; 2 mm tube, far focus: WD 717.1 mm, magnification -0.074; 1 mm tube, near focus: WD 231.0 mm, magnification -0.242; 1 mm tube, far focus: WD 967.3 mm, magnification -0.054 |
Optics
| Focal length | 50 mm |
|---|---|
| F-number | F2.8 to F16 |
| Image size | Ø9 mm (1/1.8'') |
| Distortion | 0.03% |
| Field of view | D (8.96 mm): 9.72°; H (7.38 mm): 7.84°; V (4.92 mm): 5.24° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M30.5 × 0.5 |
| Magnification at working distance (mm) | 250: -0.220; 300: -0.180; 350: -0.153; 400: -0.133; 450: -0.118; 500: -0.105; 550: -0.096; 600: -0.087; 650: -0.081; 700: -0.075; 800: -0.065; 900: -0.058; 1000: -0.052 |
| Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm) | 250: 33.56 x 22.37; 300: 40.98 x 27.31; 350: 48.31 x 32.20; 400: 55.57 x 37.04; 450: 62.80 x 41.86; 500: 70.00 x 46.67; 550: 77.18 x 51.46; 600: 84.34 x 56.23; 650: 91.49 x 61.01; 700: 98.63 x 65.77; 800: 112.88 x 75.28; 900: 127.12 x 84.78; 1000: 141.34 x 94.27 |
| Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm) | 250: 28.28 x 21.23; 300: 34.53 x 25.92; 350: 40.71 x 30.56; 400: 46.83 x 35.16; 450: 52.93 x 39.74; 500: 59.00 x 44.30; 550: 65.05 x 48.84; 600: 71.09 x 53.38; 650: 77.12 x 57.91; 700: 83.14 x 62.43; 800: 95.16 x 71.46; 900: 107.16 x 80.47; 1000: 119.15 x 89.48 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

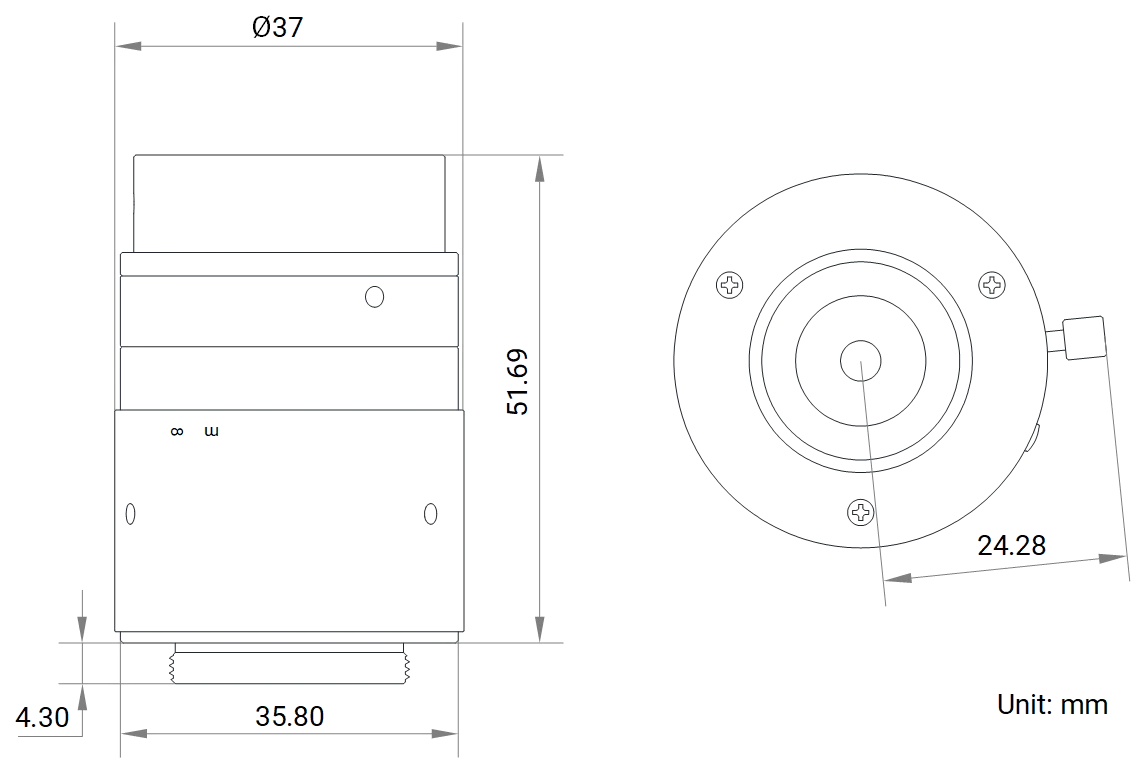

| Dimension | Ø37 mm × 51.7 mm (Ø1.5" x 2.0") |
| Weight | 102 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
