Machine vision lenses

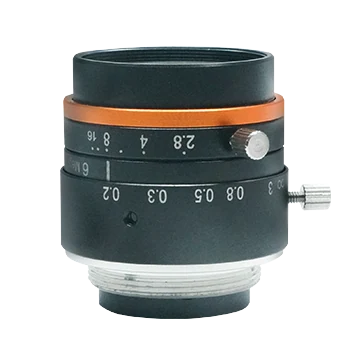

30mm, F2.8, 1/1.8", 6MP Lens, C-Mount (LS-FFL-1358)
Model LS-FFL-1358
- Focal length30 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8 to F16
$69.00
Ships in 2-3 weeks
0.17 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
30mm, F2.8, 1/1.8", 6MP Lens, C-Mount. Higher image clarity and contrast ratio Ultra-low distortion and higher relative illumination rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1358 |
|---|---|
| Minimum object distance | 0.2 m |
| Close-up with extension tube | 10 mm tube, near focus: WD 62 mm, magnification -0.514; 10 mm tube, far focus: WD 111 mm, magnification -0.296; 5 mm tube, near focus: WD 92 mm, magnification -0.329; 5 mm tube, far focus: WD 225 mm, magnification -0.148; 2 mm tube, near focus: WD 134 mm, magnification -0.217; 2 mm tube, far focus: WD 569 mm, magnification -0.059; 1 mm tube, near focus: WD 160 mm, magnification -0.179; 1 mm tube, far focus: WD 1141 mm, magnification -0.030 |
Optics
| Focal length | 30 mm |
|---|---|
| F-number | F2.8 to F16 |
| Image size | Ø9 mm (1/1.8") |
| Distortion | –0.031% |
| Field of view | D (8.96 mm): 16.99°; H (7.38 mm): 14.01°; V (4.92 mm): 9.38° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Magnification at working distance (mm) | 200: -0.142; 250: -0.115; 300: -0.097; 350: -0.084; 400: -0.074; 450: -0.067; 500: -0.060; 550: -0.055; 600: -0.051; 650: -0.047; 700: -0.044; 800: -0.039; 900: -0.035; 1000: -0.032 |
| Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm) | 200: 52.09 x 34.69; 250: 64.29 x 42.82; 300: 76.21 x 50.76; 350: 87.94 x 58.58; 400: 99.52 x 66.31; 450: 111.00 x 73.97; 500: 122.40 x 81.57; 550: 133.73 x 89.14; 600: 145.00 x 96.66; 650: 156.23 x 104.16; 700: 167.42 x 111.63; 800: 189.70 x 126.50; 900: 211.88 x 141.31; 1000: 233.98 x 156.07 |
| Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm) | 200: 43.88 x 32.93; 250: 54.16 x 40.64; 300: 64.20 x 48.18; 350: 74.09 x 55.60; 400: 83.85 x 62.94; 450: 93.53 x 70.21; 500: 103.14 x 77.43; 550: 112.70 x 84.61; 600: 122.20 x 91.75; 650: 131.67 x 98.86; 700: 141.11 x 105.95; 800: 159.90 x 120.08; 900: 178.61 x 134.14; 1000: 197.26 x 148.15 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | ROHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

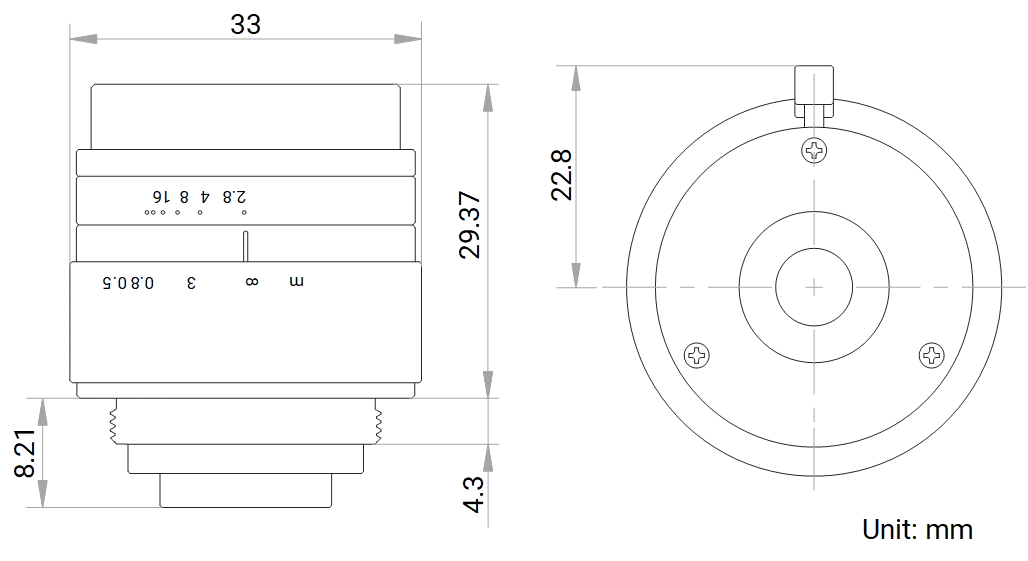

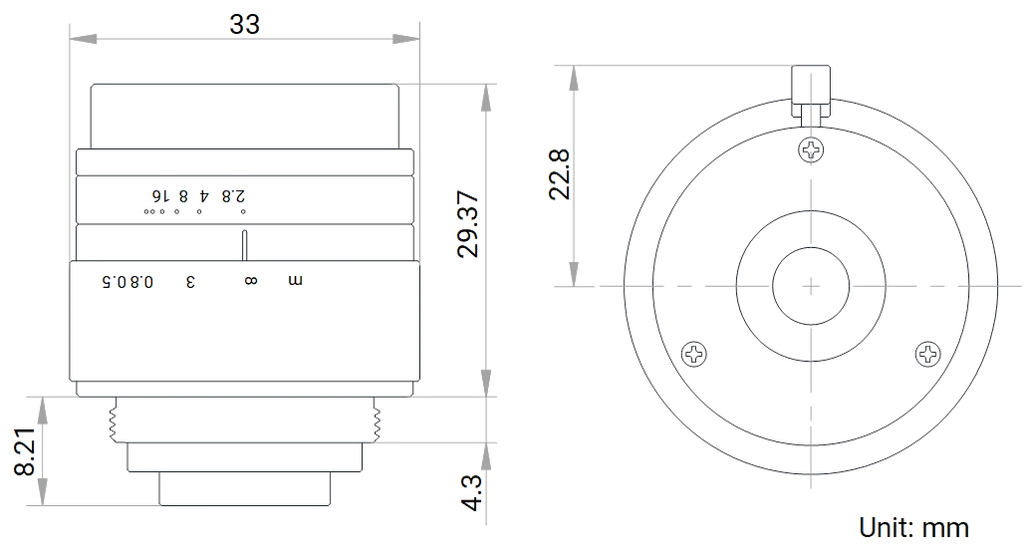

| Dimension | Ø33 mm × 29.4 mm (Ø1.3" x 1.2") |
| Weight | 49.2 g (0.1 lb.) |
| Shipping weight (estimated) | 0.17 kg |
