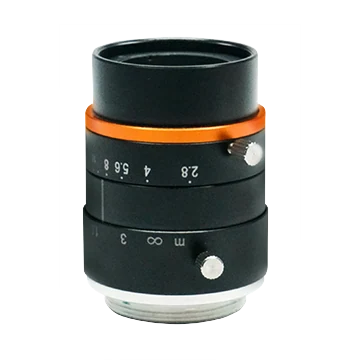

40mm, F2.8, 1/1.8", 6MP Lens, C-Mount (LS-FFL-1359)
Model LS-FFL-1359
- Focal length40 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8 to F16
$69.00
Ships in 2-3 weeks
0.19 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
40mm, F2.8, 1/1.8", 6MP Lens, C-Mount. Higher image clarity and contrast ratio Ultra-low distortion and higher relative illumination rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1359 |
|---|---|
| Minimum object distance | 0.25 m |
| Close-up with extension tube | 20 mm tube, near focus: WD 78 mm, magnification -0.569; 20 mm tube, far focus: WD 148 mm, magnification -0.310; 10 mm tube, near focus: WD 98 mm, magnification -0.431; 10 mm tube, far focus: WD 226 mm, magnification -0.207; 5 mm tube, near focus: WD 138 mm, magnification -0.293; 5 mm tube, far focus: WD 460 mm, magnification -0.104; 2 mm tube, near focus: WD 187 mm, magnification -0.209; 2 mm tube, far focus: WD 1162 mm, magnification -0.041; 1 mm tube, near focus: WD 214 mm, magnification -0.181; 1 mm tube, far focus: WD 2337 mm, magnification -0.021 |
Optics
| Focal length | 40 mm |
|---|---|
| F-number | F2.8 to F16 |
| Image size | Ø9 mm (1/1.8") |
| Distortion | –0.024% |
| Field of view | D (8.96 mm): 12.78°; H (7.38 mm): 10.53°; V (4.92 mm): 7.04° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Magnification at working distance (mm) | 250: -0.153; 300: -0.129; 350: -0.112; 400: -0.099; 450: -0.089; 500: -0.081; 550: -0.074; 600: -0.068; 650: -0.063; 700: -0.059; 800: -0.052; 900: -0.047; 1000: -0.043 |
| Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm) | 250: 48.15 x 32.08; 300: 57.16 x 38.09; 350: 65.97 x 43.96; 400: 74.63 x 49.74; 450: 83.18 x 55.43; 500: 91.63 x 61.07; 550: 100.00 x 66.66; 600: 108.31 x 72.20; 650: 116.56 x 77.71; 700: 124.77 x 83.18; 800: 141.06 x 94.05; 900: 157.22 x 104.84; 1000: 173.27 x 115.55 |
| Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm) | 250: 40.57 x 30.45; 300: 48.16 x 36.15; 350: 55.59 x 41.73; 400: 62.89 x 47.21; 450: 70.09 x 52.62; 500: 77.22 x 57.97; 550: 84.28 x 63.27; 600: 91.28 x 68.53; 650: 98.24 x 73.76; 700: 105.16 x 78.96; 800: 118.90 x 89.27; 900: 132.52 x 99.51; 1000: 146.06 x 109.69 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

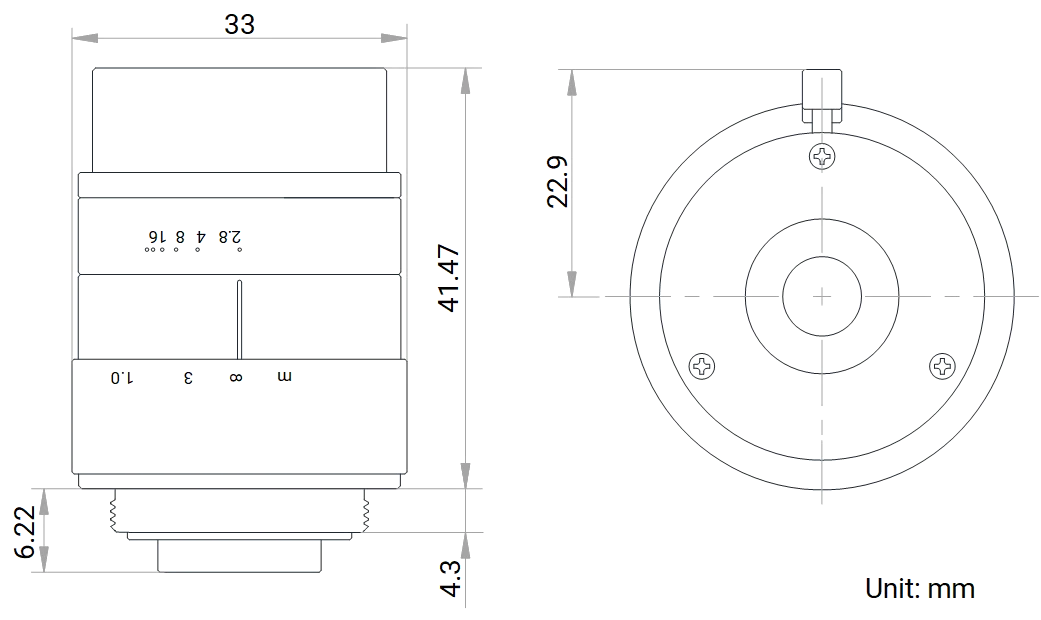

| Dimension | Ø33 mm × 41.5 mm (Ø1.3" x 1.6") |
| Weight | 67.1 g (0.1 lb.) |
| Shipping weight (estimated) | 0.19 kg |
