Machine vision lenses

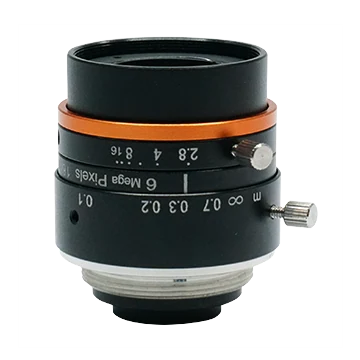

16mm, F2.8, 1/1.8", 6MP Lens, C-Mount (LS-FFL-1356)
Model LS-FFL-1356
- Focal length16 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8 to F16
$69.00
Ships in 2-3 weeks
0.18 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16mm, F2.8, 1/1.8", 6MP Lens, C-Mount. Higher image clarity and contrast ratio Ultra-low distortion and higher relative illumination rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1356 |
|---|---|
| Minimum object distance | 0.1 m |
| Close-up with extension tube | 5 mm tube, near focus: WD 27 mm, magnification -0.476; 5 mm tube, far focus: WD 44 mm, magnification -0.310; 2 mm tube, near focus: WD 50 mm, magnification -0.277; 2 mm tube, far focus: WD 122 mm, magnification -0.124; 1 mm tube, near focus: WD 67 mm, magnification -0.211; 1 mm tube, far focus: WD 252 mm, magnification -0.062 |
Optics
| Focal length | 16 mm |
|---|---|
| F-number | F2.8 to F16 |
| Image size | Ø9 mm (1/1.8") |
| Distortion | –0.018% |
| Field of view | D(8.96mm):31.28°; H(7.38mm):25.94°; V(4.92mm):17.48° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M27 × P0.5 |
| Magnification at working distance (mm) | 100: -0.144; 150: -0.099; 200: -0.076; 250: -0.061; 300: -0.052; 350: -0.044; 400: -0.039; 450: -0.035; 500: -0.032; 550: -0.029; 600: -0.026; 650: -0.024; 700: -0.023; 800: -0.020; 900: -0.018; 1000: -0.016 |
| Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm) | 100: 51.38 x 34.17; 150: 74.67 x 49.69; 200: 97.70 x 65.06; 250: 120.63 x 80.35; 300: 143.49 x 95.61; 350: 166.32 x 110.85; 400: 189.12 x 126.07; 450: 211.91 x 141.27; 500: 234.69 x 156.48; 550: 257.46 x 171.67; 600: 280.22 x 186.87; 650: 302.98 x 202.05; 700: 325.73 x 217.24; 800: 371.23 x 247.61; 900: 416.72 x 277.97; 1000: 462.20 x 308.33 |
| Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm) | 100: 43.25 x 32.43; 150: 62.88 x 47.16; 200: 82.30 x 61.75; 250: 101.63 x 76.26; 300: 120.92 x 90.75; 350: 140.17 x 105.20; 400: 159.40 x 119.65; 450: 178.62 x 134.09; 500: 197.83 x 148.52; 550: 217.04 x 162.95; 600: 236.23 x 177.37; 650: 255.43 x 191.79; 700: 274.62 x 206.20; 800: 312.99 x 235.03; 900: 351.36 x 263.85; 1000: 389.72 x 292.66 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimension | Ø33 mm × 31.9 mm (Ø1.3" × 1.3") |
| Weight | 56.1 g (0.1 lb.) |
| Shipping weight (estimated) | 0.18 kg |
Other models in the LS-FFL-S115 series lenses series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1354 | 8 mm · C-mount | $69.00 | Ships in 2-3 weeks | View |
| LS-FFL-1355 | 12 mm · C-mount | $69.00 | Ships in 2-3 weeks | View |
| LS-FFL-1357 | 25 mm · C-mount | $69.00 | Ships in 2-3 weeks | View |
| LS-FFL-1358 | 30 mm · C-mount | $69.00 | Ships in 2-3 weeks | View |
| LS-FFL-1359 | 40 mm · C-mount | $69.00 | Ships in 2-3 weeks | View |
| LS-FFL-1360 | 50 mm · C-mount | $69.00 | Ships in 2-3 weeks | View |
| LS-FFL-1361 | 40 mm · 0.22x ~ 0.04x | $69.00 | Ships in 2-3 weeks | View |
| LS-FFL-1353 | 6 mm · C-mount | $79.00 | Ships in 2-3 weeks | View |
