Area scan cameras

Hikrobot MV-NT002-60GN 2 MP GigE area scan camera, Mono

Model MV-NT002-60GNHikrobot

Resolution1920 × 1080
SensorCMOS, rolling shutter
Speed56 fps @1920 × 1080 Mono8
Lens mountC-mount
Mono / colourMono
Pixel size2.9 μm × 2.9 μm

$529.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-NT002-60GN 2 MP GigE area scan camera, Mono. Low-power platform with stable performance ISP functions including wide dynamic range, noise reduction and sharpening

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-NT002-60GN
Brand	Hikrobot
Compatibility	GigE Vision 2.0, GenlCam

Sensor and imaging

Sensor type	CMOS, rolling shutter
Pixel size	2.9 μm × 2.9 μm
Sensor size	1/2.8''
Resolution	1920 × 1080
Max. frame rate	56 fps @1920 × 1080 Mono8
Dynamic range	74 dB; 90 dB @ WDR mode
SNR	45.6 dB
Gain	0 dB ~ 24 dB
Exposure time	64 μs ~ 130 ms
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8
Binning	Supports 1 × 1, 2 × 2
Decimation	Not supported
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, RoHS, KC

Computing

Operating system	Windows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	2.4 W@12 VDC

Mechanical

Lens mount	C-Mount

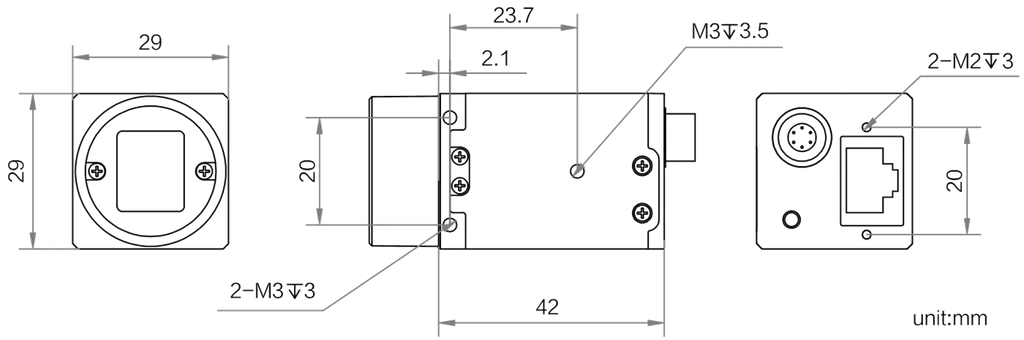

Dimension	29 mm × 29 mm × 42 mm
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Datasheet (PDF, Chinese)MV-NT002-60GN · 524 KB

Features

Low-power platform with stable performance
ISP functions including wide dynamic range, noise reduction and sharpening
Software trigger, hardware trigger and free-run modes
Optional band-pass filter for infrared fill-light applications
Gigabit Ethernet interface: up to 100 m transmission without a repeater
Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software platforms
