Hikrobot MV-CU004-10GM(NPOE) 0.4 MP GigE area scan camera, IMX297, Mono, Without PoE
Model MV-CU004-10GM(NPOE)Hikrobot
- Resolution720 × 540
- SensorCMOS, global shutter
- Speed126.5 fps @ 720 × 540 Mono 8
- Lens mountC-mount
- Mono / colourMono
- Pixel size6.9 μm × 6.9 μm
$159.00
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Ask an engineerBrowse Area scan cameras
lumaspecvision.com/products/lumaspec-mv-cu004-10gm-npoe
Of the 12 resolutions in this camera series, MV-CU004-10GM(NPOE), the mono version, is the lowest-resolution: a 720 x 540 (0.4 MP) sensor, the fewest pixels and the least data per frame.
MV-CU004-10GM(NPOE): resolution 720 x 540; sensor type CMOS, global shutter; sensor size 1/2.9''; max. frame rate 126.5 fps @ 720 x 540 Mono 8.
Hikrobot MV-CU004-10GM(NPOE) 0.4 MP GigE area scan camera, IMX297, Mono, Without PoE.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Certifications (as printed)RoHSCEKC
Specifications
General
| Model | MV-CU004-10GM(NPOE) |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | Sony IMX297 |
| Pixel size | 6.9 μm × 6.9 μm |
| Sensor size | 1/2.9'' |
| Resolution | 720 × 540 |
| Max. frame rate | 126.5 fps @ 720 × 540 Mono 8 |
| Dynamic range | 74 dB |
| SNR | 41 dB |
| Gain | 0 dB ~ 24 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP30 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | RoHS, CE, KC |
Computing
| Operating system | Windows XP/7/10/11 32/64bits, Linux 32/64bits, MacOS 64bits |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, PoE is optional |
|---|---|
| Power consumption | 2 W @ 12 VDC |
Mechanical
| Lens mount | C-Mount |
|---|---|
| Dimension | 29 mm × 29 mm × 42 mm |
| Weight | Approx. 100 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
Engineering data
Field of view and resolution with the MV-CU004-10GM(NPOE)
Sensor area4.97 × 3.73 mm1/2.9" optical format
Lens image circle needed≥ Ø 6.2 mmC-mount
Pixel pitch6.9 µm720 x 540 px
Image data at max frame rate49.2 MB/sCalculated: 126.5 fps × 720 × 540 px at 8 bit
· GigE carries 125 MB/s nominal
With a 8 mm lens at 500 mm311 × 233 mm0.431 mm per pixel
Dynamic range74 dB
SNR41 dB
Power consumption2 Wat 12 V DC
ShutterGlobal
Exposure range15 µs to 10 sstandard mode
| Lens | At 300 mm | At 500 mm | At 1000 mm |
|---|---|---|---|
| 4 mm | 373 × 280 mm0.518 mm per pixel | 621 × 466 mm0.863 mm per pixel | 1242 × 932 mm1.726 mm per pixel |
| 6 mm | 248 × 186 mm0.345 mm per pixel | 414 × 311 mm0.575 mm per pixel | 828 × 622 mm1.15 mm per pixel |
| 8 mm | 186 × 140 mm0.259 mm per pixel | 311 × 233 mm0.431 mm per pixel | 621 × 466 mm0.863 mm per pixel |
| 12 mm | 124 × 93.2 mm0.173 mm per pixel | 207 × 155 mm0.288 mm per pixel | 414 × 311 mm0.575 mm per pixel |
| 16 mm | 93.2 × 69.9 mm0.129 mm per pixel | 155 × 117 mm0.216 mm per pixel | 311 × 233 mm0.431 mm per pixel |
| 25 mm | 59.6 × 44.8 mm0.083 mm per pixel | 99.4 × 74.6 mm0.138 mm per pixel | 199 × 149 mm0.276 mm per pixel |
Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
Compatible parts
Fits with this part
Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band, and the camera's printed connector for cables.
Complete the setup
This part with the first fit-tested pick from each group below. Swap any of them for another card further down.
-
This partHikrobot MV-CU004-10GM(NPOE) 0.4 MP GigE area scan camera, IMX297, Mono, Without PoE
$159.00
-
Lenses for this camera
05-28 mm, F2.8, 1/2.8", 850 nm, C-mount lens (LS-FFL-1709)
$329.00
Set total $488.00
Added to your quote list.
Lenses for this C-mount camera
This camera's 6.2 mm sensor diagonal uses 97 % of the lens's 6.4 mm image circle
6 mm lens, 1/2", C-mount, M27-0.5 thread
LS-FFL-0073
- Focal length 6 mm
- Mount C-mount
$149.00Quote
Lead time confirmed with your quote
This camera's 6.2 mm sensor diagonal uses 78 % of the lens's 8 mm image circle

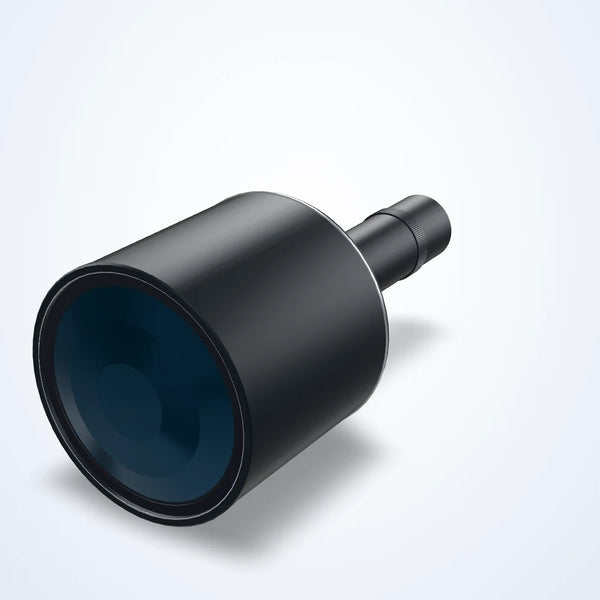

0.06x bi-telecentric lens, WD 273 mm, 1/2.5", C-mount
LS-TCL-1175
- Magnification 0.06x
- Mount C-mount
$1,585.00
Ships in 3-4 weeks
This camera's 6.2 mm sensor diagonal uses 86 % of the lens's 7.2 mm image circle
10-40 mm, 1/2.5", 3 MP, C-mount Varifocal CCTV lens
LS-CTV-0142
- Focal length 10-40 mm
- Mount C-mount
$119.00
Ships in 2-3 weeks
This camera's 6.2 mm sensor diagonal uses 86 % of the lens's 7.2 mm image circle
Zoom lens, 8-50 mm, 1/2.3", C-mount
LS-FFL-1705
- Focal length 8-50 mm
- Mount C-mount
$519.00
Ships in 2-3 weeks
This camera's 6.2 mm sensor diagonal uses 81 % of the lens's 7.7 mm image circle
2.8-12 mm zoom lens, 1/2", 3 MP, C-mount
LS-FFL-1689
- Focal length 2.8-12 mm
- Mount C-mount
$110.00
Ships in 3-4 weeks
This camera's 6.2 mm sensor diagonal uses 78 % of the lens's 8 mm image circle
Cables and frame grabbers
3 m GigE camera cable, screw locks
LS-CBL-0195
- End A RJ45 with locking studs
- End B RJ45
$22.00
Ships in 3-4 weeks
Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing
5 m GigE camera cable, screw locks
LS-CBL-0196
- End A RJ45 with locking studs
- End B RJ45
$27.00
Ships in 3-4 weeks
Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing
Camera Data Cable, RJ45 (with locking stud) to RJ45, 1 m
LS-CBL-0107
- Length 1 m
- End A RJ45 (with locking stud)
$39.00
Ships in 2-3 weeks
Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing
10 m GigE camera cable, screw locks
LS-CBL-0197
- End A RJ45 with locking studs
- End B RJ45
$52.00
Ships in 3-4 weeks
Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing
Camera Data Cable, RJ45 (with locking stud) to RJ45, 3 m, drag-chain and robot-arm use
LS-CBL-0102
- Length 3 m
- End A RJ45 (with locking stud)
$49.00
Ships in 2-3 weeks
Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing
Camera Data Cable, RJ45 (with locking stud) to RJ45, 3 m, drag-chain use, 6.5 mm cable
LS-CBL-0096
- Length 3 m
- End A RJ45 (with locking stud)
$49.00
Ships in 2-3 weeks
Connector not printed: GigE Vision cameras usually take RJ-45; check the drawing
