Hikrobot MV-CU016-10GM(NPOE) 1.6 MP GigE area scan camera, IMX296, Mono, Without PoE

Model MV-CU016-10GM(NPOE)Hikrobot

Resolution1440 × 1080
SensorCMOS, global shutter
Speed65.8 fps @1440 × 1080 Mono 8
Lens mountC-mount
Mono / colourMono
Pixel size3.45 μm × 3.45 μm

$249.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-CU016-10GM(NPOE) 1.6 MP GigE area scan camera, IMX296, Mono, Without PoE. Optimized hardware design: stable performance and low power consumption Automatic and manual adjustment of gain, exposure time and other parameters

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-CU016-10GM(NPOE)
Brand	Hikrobot
Compatibility	GigE Vision V2.0, GenlCam

Sensor and imaging

Sensor type	CMOS, global shutter
Sensor model	Sony IMX296
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/2.9''
Resolution	1440 × 1080
Max. frame rate	65.8 fps @1440 × 1080 Mono 8
Dynamic range	74 dB
SNR	41 dB
Gain	0 dB ~ 24 dB
Exposure time	UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Exposure mode	Off/Once/Continuous exposure mode
Mono/color	Mono
Pixel format	Mono 8/10/10Packed/12/12Packed
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse image	Supports horizontal and vertical reverse image output

Interfaces and I/O

Data interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client software	MVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protection	IP30 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Certification	RoHS, CE, KC

Computing

Operating system	Windows XP/7/10/11 32/64bits, Linux 32/64bits, MacOS 64bits

Electrical

Power supply	9 VDC to 24 VDC, PoE is optional
Power consumption	2 W@12 VDC

Mechanical

Lens mount	C-Mount

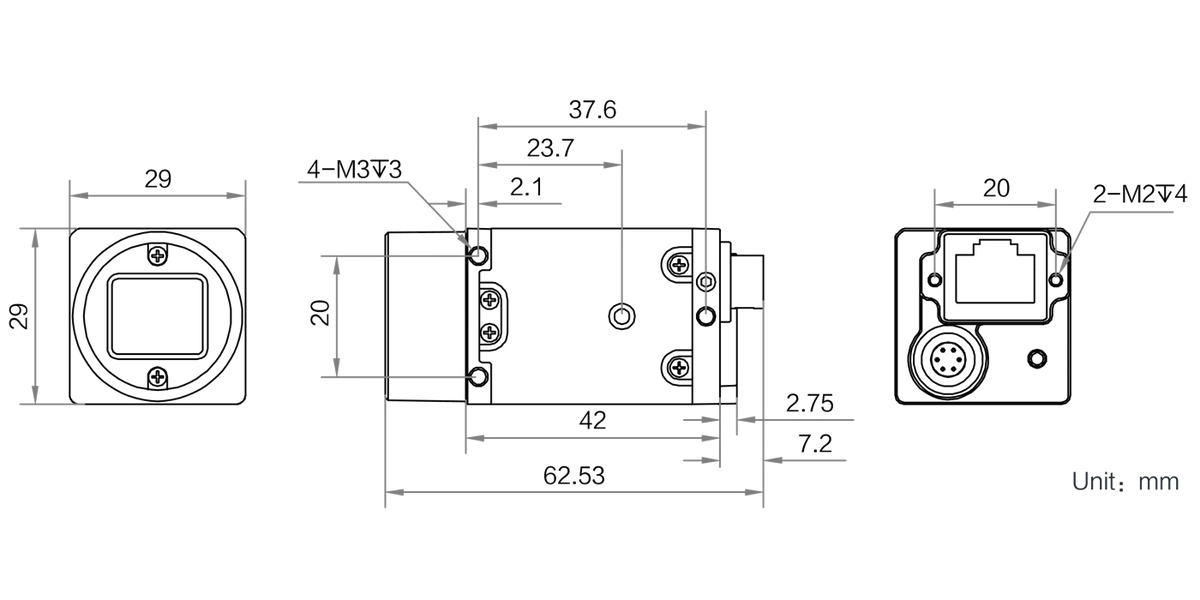

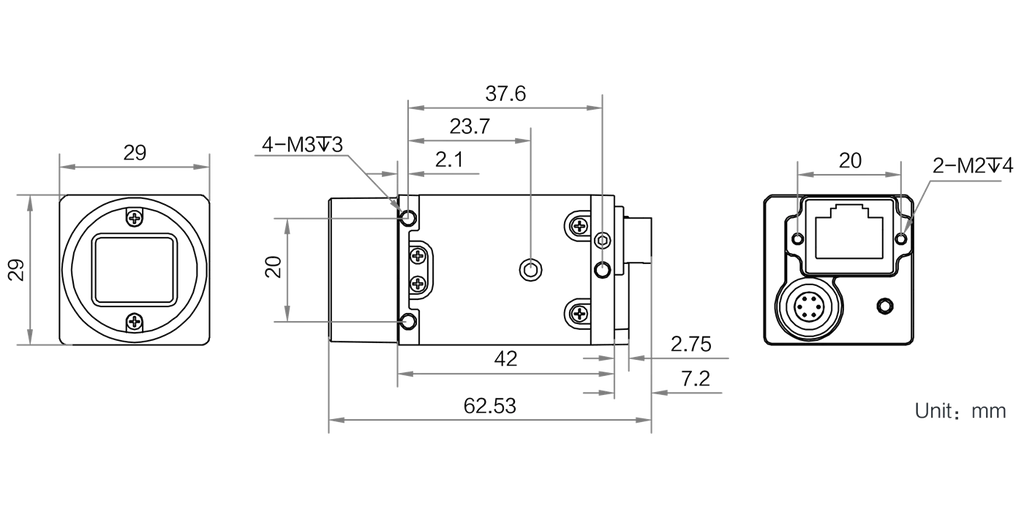

Dimension	29 mm × 29 mm × 42 mm
Weight	Approx. 100 g (0.2 lb.)
Shipping weight (estimated)	0.24 kg

Downloads

Features

Optimized hardware design: stable performance and low power consumption
Automatic and manual adjustment of gain, exposure time and other parameters
Supports hardware trigger, software trigger and free-run modes
Gigabit Ethernet interface: up to 100 m transmission without a repeater
Compatible with GigE Vision V2.0 and the GenICam standard for seamless integration with third-party software platforms
