Hikrobot MV-CU016-10GC V2 1.6MP Area Scan Camera, GigE, IMX296, Color
  • Hikrobot MV-CU016-10GC V2 1.6MP Area Scan Camera, GigE, IMX296, Color

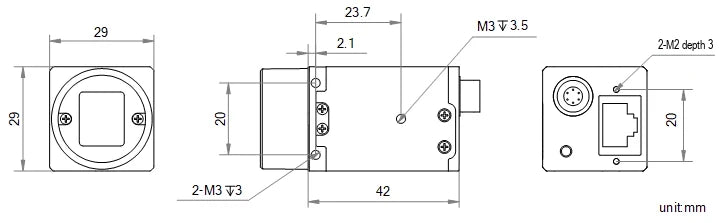

  • MV-CU016-10GC V2 dimensions (mm)

Area scan cameras

Hikrobot MV-CU016-10GC V2 1.6MP Area Scan Camera, GigE, IMX296, Color

Model MV-CU016-10GC V2Hikrobot

  • Resolution1440 × 1080
  • SensorCMOS, global shutter
  • Speed65.8 fps @ 1440 × 1080 Bayer RG 8
  • Lens mountC-mount
  • Mono / colourColor
  • Pixel size3.45 μm × 3.45 μm
$259.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CU016-10GC V2: resolution 1440 x 1080; sensor type CMOS, global shutter; sensor size 1/2.9"; dynamic range 74 dB; mono/color Color.

Hikrobot MV-CU016-10GC V2 1.6MP Area Scan Camera, GigE, IMX296, V2, Color. Adopts low consumption design with stable performance. Supports auto or manual adjustment of gain, exposure time etc.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-CU016-10GC V2
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Sensor modelSony® IMX296
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1440 × 1080
Max. frame rate65.8 fps @ 1440 × 1080 Bayer RG 8
Dynamic range74 dB
SNR41 dB
Gain0 dB to 24 dB
Exposure timeUltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec
Mono/colorColor
Exposure modeOff/Once/Continuous exposure mode
Pixel formatBayer RG 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Computing

Operating system32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux

Electrical

Power supply9 VDC to 24 VDC, PoE is optional
Power consumptionTyp. 2 W @ 12 VDC

Mechanical

Lens mountC-mount
Dimension29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
WeightApprox. 100 g (0.2 lb.)
Shipping weight (estimated)0.24 kg

Engineering data

Field of view and resolution with the MV-CU016-10GC V2

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area4.97 × 3.73 mm1/2.9" optical format
Lens image circle needed≥ Ø 6.2 mmC-mount
Pixel pitch3.45 µm1440 x 1080 px
Image data at max frame rate102 MB/sCalculated: 65.8 fps × 1440 × 1080 px at 8 bit · GigE carries 125 MB/s nominal
With a 8 mm lens at 500 mm311 × 233 mm0.216 mm per pixel
Dynamic range74 dB
SNR41 dB
Power consumption2 Wtyp. at 12 V DC
ShutterGlobal
Exposure range15 µs to 10 sstandard mode
Weight100 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
4 mm373 × 280 mm0.259 mm per pixel621 × 466 mm0.431 mm per pixel1242 × 932 mm0.863 mm per pixel
6 mm248 × 186 mm0.173 mm per pixel414 × 311 mm0.288 mm per pixel828 × 622 mm0.575 mm per pixel
8 mm186 × 140 mm0.129 mm per pixel311 × 233 mm0.216 mm per pixel621 × 466 mm0.431 mm per pixel
12 mm124 × 93.2 mm0.086 mm per pixel207 × 155 mm0.144 mm per pixel414 × 311 mm0.288 mm per pixel
16 mm93.2 × 69.9 mm0.065 mm per pixel155 × 117 mm0.108 mm per pixel311 × 233 mm0.216 mm per pixel
25 mm59.6 × 44.8 mm0.041 mm per pixel99.4 × 74.6 mm0.069 mm per pixel199 × 149 mm0.138 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.
