UV adhesive on glass: inspect the visible bead path
Under 365 nm illumination, the source capture shows a bright adhesive path against a dark field. The useful trial is to separate bead shape and visible gaps from the strength or cure state of the bond.
Use fluorescence contrast to inspect the bead shape, then validate the bond by the required method.
Real camera capture
- Method365 nm UV excitation
- EvidenceReal application-lab capture
- SetupSource light identified; imaging kit proposed
- AcceptanceValidate on your own parts
Lighting application-lab catalog capture
What the camera saw
Cropped from the source test sheet; original test annotations are retained. Captures are not generated or enhanced. Drag a comparison slider, or open any image full size.
The challenge
Transparent glass and clear adhesive can have little contrast under visible illumination.
A bright bead may still contain variation in thickness, fluorescence response or cure state.
How it was solved
The source identifies 365 nm UV ring illumination and captions the capture as adhesive-break inspection on glass.
The current LS-RS7430-UV365 is a proposed alternative, not the source version. Confirm excitation response and a suitable camera-side emission filter on the actual adhesive.
Why it works
- 1
UV excitation can produce visible fluorescence in compatible adhesives; the source capture shows bright contrast under UV illumination.
- 2
Visible continuity is an appearance property. The capture contains no bond-strength, cure-depth or leak-test result.
Lighting application-lab catalog capture
Evidence you can inspect

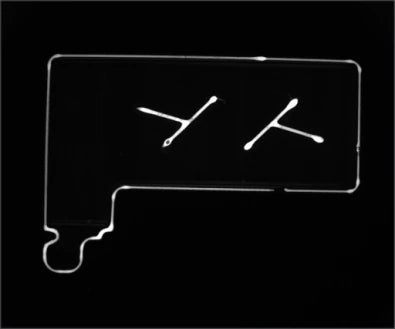

The bead path and two internal adhesive marks appear brighter than their surroundings.
The source reports a 365 nm UV lighting arrangement for glass adhesive-break inspection, without bead dimensions or quantified detection results.
A single source image. It does not establish UV response for another adhesive formulation or guarantee that every visible gap is a failed bond.
From image contrast to a production decision
What to validate on your part
- 01
Test the exact adhesive
Include substrate, glue formulation, batch, cure condition and contamination variation.
- 02
Challenge the bead
Use labelled gaps and excess/insufficient material near the acceptance limit.
- 03
Separate optical and bond tests
Validate image decisions independently of the required strength, cure or leak acceptance.
