Hikrobot MV-CU013-80GM 1.3MP Area Scan Camera, GigE, SS, Mono
Model MV-CU013-80GMHikrobot
- Resolution1280 × 1024
- SensorCMOS, global shutter
- Speed89.9 fps @1280 × 1024 Mono 8
- Lens mountC-mount
- Mono / colourMono
- Pixel size4.0 μm × 4.0 μm
$239.00
Ships in 2-3 weeks
0.24 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-CU013-80GM 1.3MP Area Scan Camera, GigE, SS, Mono. Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc. Supports hardware trigger, software trigger, free run, etc.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-CU013-80GM |
|---|---|
| Brand | Hikrobot |
| Compatibility | GigE Vision V2.0, GenICam |
Sensor and imaging
| Sensor type | CMOS, global shutter |
|---|---|
| Sensor model | SS |
| Pixel size | 4.0 μm × 4.0 μm |
| Sensor size | 1/2.7" |
| Resolution | 1280 × 1024 |
| Max. frame rate | 89.9 fps @1280 × 1024 Mono 8 |
| Dynamic range | 54.5 dB |
| SNR | 39.2 dB |
| Gain | 0 dB to 20 dB |
| Exposure time | 31 μs to 1 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
Interfaces and I/O
| Data interface | Gigabit Ethernet, compatible with Fast Ethernet |
|---|---|
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Client software | MVS or third-party software meeting with GigE Vision Protocol |
Environment and compliance
| Ingress protection | IP30 (under proper lens installation and wiring) |
|---|---|
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Certification | CE, RoHS, KC |
Computing
| Operating system | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
|---|
Electrical
| Power supply | 9 VDC to 24 VDC, PoE is optional |
|---|---|
| Power consumption | Typ. 1.9 W@12 VDC |
Mechanical
| Lens mount | C-mount |
|---|---|

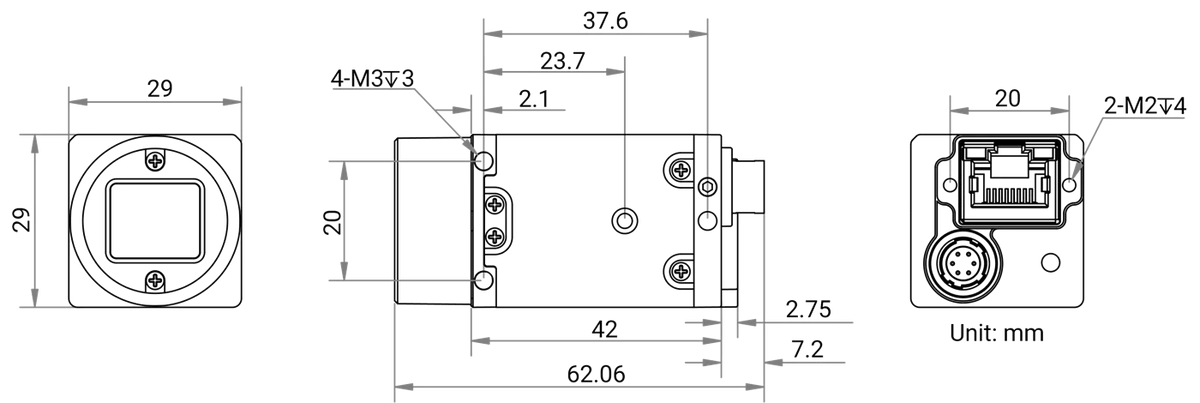

| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Shipping weight (estimated) | 0.24 kg |
