Hikrobot MV-CU013-A0GC(NPOE) 1.3 MP GigE area scan camera, Color, Without PoE
  • Hikrobot MV-CU013-A0GC(NPOE) 1.3 MP GigE area scan camera, Color, Without PoE

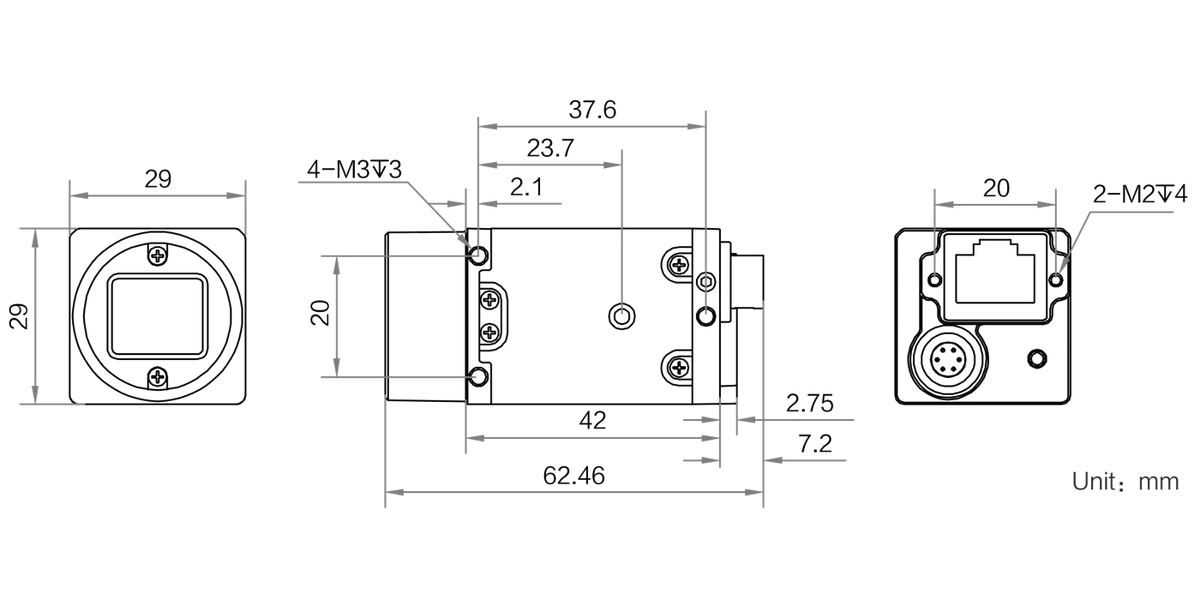

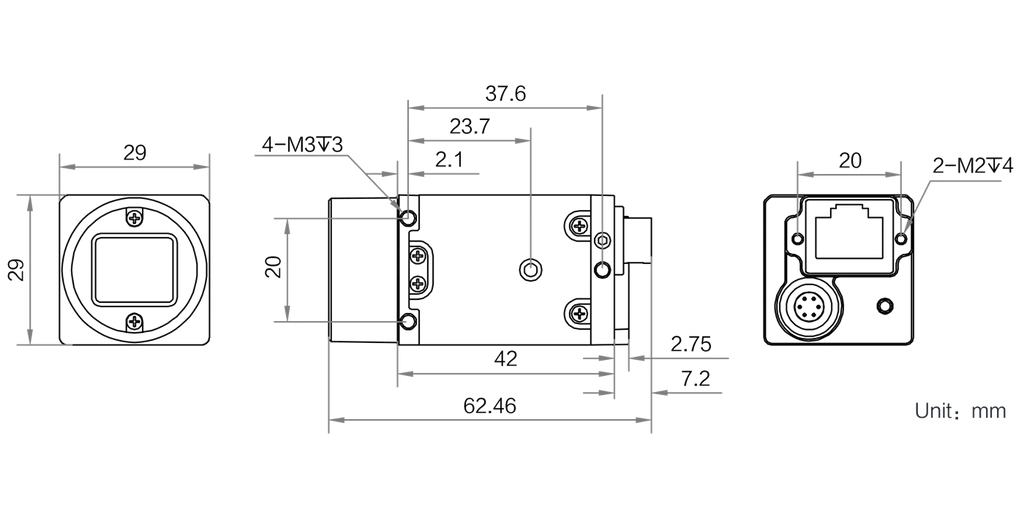

  • MV-CU013-A0GC(NPOE) dimensions (mm)

Area scan cameras

Hikrobot MV-CU013-A0GC(NPOE) 1.3 MP GigE area scan camera, Color, Without PoE

Model MV-CU013-A0GC(NPOE)Hikrobot

  • Resolution1280 × 1024
  • SensorCMOS, global shutter
  • Speed90.2 fps @ 1280 × 1024 Bayer GB 8
  • Lens mountC-mount
  • Mono / colourColor
  • Pixel size4.8 μm × 4.8 μm
$229.00

Ships in 2-3 weeks

0.24 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Area scan cameras

MV-CU013-A0GC(NPOE): resolution 1280 x 1024; sensor type CMOS, global shutter; sensor size 1/2''; dynamic range 54 dB; mono/color Color.

Hikrobot MV-CU013-A0GC(NPOE) 1.3 MP GigE area scan camera, Color, Without PoE. Optimized hardware design: stable performance and low power consumption Automatic and manual adjustment of gain, exposure time and other parameters

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)RoHSCEKC

Specifications

General

ModelMV-CU013-A0GC(NPOE)
BrandHikrobot
CompatibilityGigE Vision V2.0, GenICam

Sensor and imaging

Sensor typeCMOS, global shutter
Pixel size4.8 μm × 4.8 μm
Sensor size1/2''
Resolution1280 × 1024
Max. frame rate90.2 fps @ 1280 × 1024 Bayer GB 8
Dynamic range54 dB
SNR40.6 dB
Gain0 dB ~ 16 dB
Exposure time11 μs ~ 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorColor
Pixel formatBayer GB 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output

Interfaces and I/O

Data interfaceGigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Client softwareMVS or third-party software meeting with GigE Vision Protocol

Environment and compliance

Ingress protectionIP30 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationRoHS, CE, KC

Computing

Operating systemWindows 7/10 32/64bits, Windows 11 64bits, Linux 32/64bits

Electrical

Power supply9 VDC to 24 VDC, PoE is optional
Power consumption1.8 W @ 12 VDC

Mechanical

Lens mountC-Mount
Dimension29 mm × 29 mm × 42 mm
WeightApprox. 100 g (0.2 lb.)
Shipping weight (estimated)0.24 kg

Engineering data

Field of view and resolution with the MV-CU013-A0GC(NPOE)

Worked out from this camera's own sensor: the field of view and the size one pixel covers on the part, for common lenses and working distances.

Sensor area6.14 × 4.92 mm1/2" optical format
Lens image circle needed≥ Ø 7.9 mmC-mount
Pixel pitch4.8 µm1280 x 1024 px
Image data at max frame rate118 MB/sCalculated: 90.2 fps × 1280 × 1024 px at 8 bit · GigE carries 125 MB/s nominal
With a 16 mm lens at 500 mm192 × 154 mm0.15 mm per pixel
Dynamic range54 dB
SNR40.6 dB
Power consumption1.8 Wat 12 V DC
ShutterGlobal
Exposure range11 µs to 10 s
Weight100 gapprox.
Field of view (width × height) and object pixel size by lens focal length and working distance
LensAt 300 mmAt 500 mmAt 1000 mm
8 mm230 × 184 mm0.18 mm per pixel384 × 308 mm0.3 mm per pixel768 × 615 mm0.6 mm per pixel
12 mm154 × 123 mm0.12 mm per pixel256 × 205 mm0.2 mm per pixel512 × 410 mm0.4 mm per pixel
16 mm115 × 92.2 mm0.09 mm per pixel192 × 154 mm0.15 mm per pixel384 × 308 mm0.3 mm per pixel
25 mm73.7 × 59 mm0.058 mm per pixel123 × 98.4 mm0.096 mm per pixel246 × 197 mm0.192 mm per pixel
35 mm52.6 × 42.2 mm0.041 mm per pixel87.7 × 70.3 mm0.069 mm per pixel175 × 141 mm0.137 mm per pixel
50 mm36.8 × 29.5 mm0.029 mm per pixel61.4 × 49.2 mm0.048 mm per pixel123 × 98.4 mm0.096 mm per pixel

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length. Object pixel size = field-of-view width ÷ horizontal pixels; a feature should span about 3-4 pixels to be measured reliably.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Lenses for this C-mount camera

Covers up to 9.5 mm diagonal; this camera's sensor is 7.9 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 7.9 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 7.9 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 7.9 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 7.9 mm

Covers up to 9.5 mm diagonal; this camera's sensor is 7.9 mm

Cables and frame grabbers
