Home / Lenses / Telecentric lenses / Telecentric lens series (S12)

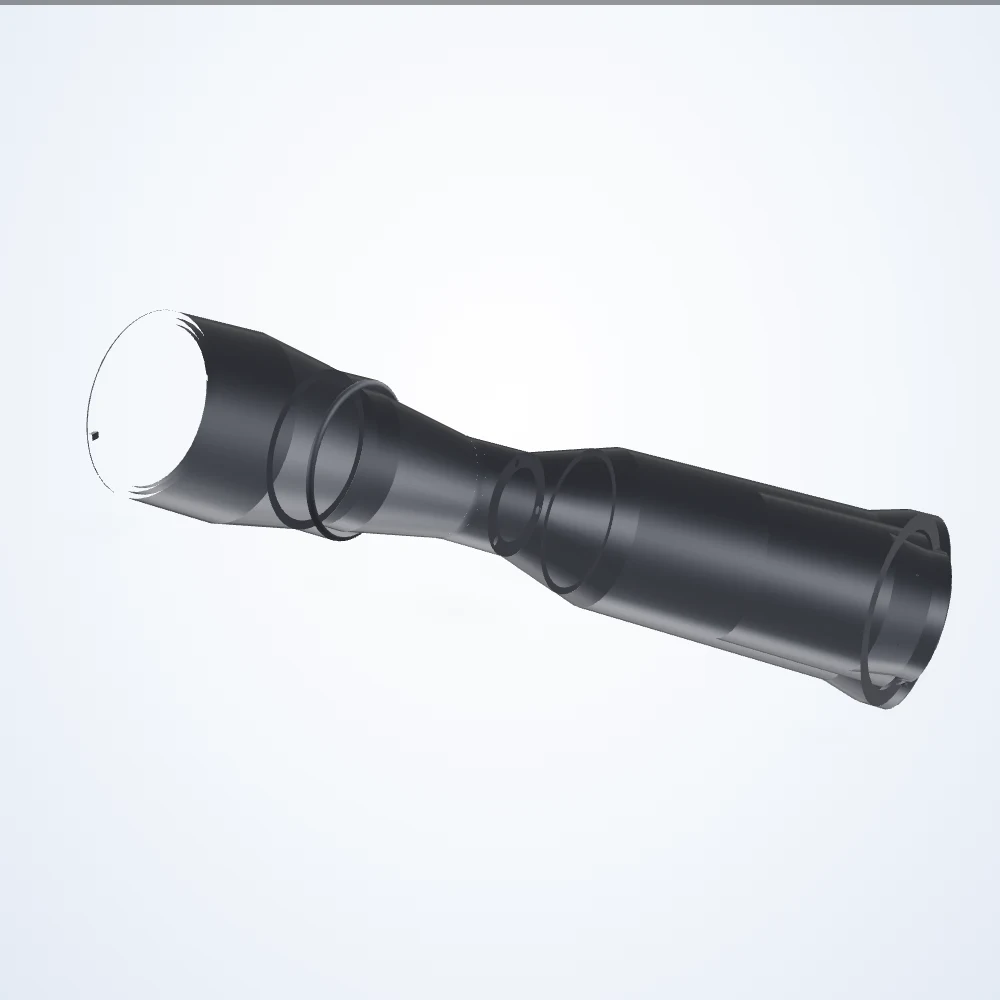

Telecentric lens series (S12)

Telecentric lenses · 27 models · from $4,869.00

Telecentric lens series (S12)

The Telecentric lens series (S12) is a range of 27 telecentric lenses from LumaSpec Vision, from $4,869.00. It comes in 14 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Series datasheet (PDF)

Building a full system? Configure a camera, lens, light and controller that fit together →

The series at a glance

Sizes / versions0.1×, 0.115×, 0.144×, 0.196×, 0.233×, 0.306×, 0.376×, 0.465×, 0.531×, 0.635×, 0.75×, 0.838×, 1.208×, 1.825×
MountM42, F-mount
Image circle30-45 mm
TypeObject-side telecentric
Magnification0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
Working distanceUnder 65 mm, 65-110 mm, 110-200 mm, 200 mm +
Sensor formatAPS-H / Full frame

All 27 models in the Telecentric lens series (S12)

ModelSizePriceAvailabilityLink
LS-TCL-01930.75× $4,869.00 quote 5 in stockView
LS-TCL-01471.825× $5,479.00 quote 4 in stockView
LS-TCL-01481.825× $5,479.00 quote 5 in stockView
LS-TCL-01491.208× $5,639.00 quote 4 in stockView
LS-TCL-01501.208× $5,639.00 quote 3 in stockView
LS-TCL-01510.838× $6,239.00 quote 2 in stockView
LS-TCL-01520.838× $6,239.00 quote 2 in stockView
LS-TCL-01530.635× $6,399.00 quote 3 in stockView
LS-TCL-01540.635× $6,399.00 quote 4 in stockView
LS-TCL-01550.531× $6,549.00 quote 3 in stockView
LS-TCL-01560.531× $6,549.00 quote 5 in stockView
LS-TCL-01570.465× $6,699.00 quote 4 in stockView
LS-TCL-01580.465× $6,699.00 quote 4 in stockView
LS-TCL-01590.376× $6,849.00 quote 5 in stockView
LS-TCL-01600.376× $6,849.00 quote 5 in stockView
LS-TCL-0161 $7,009.00 quote 3 in stockView
LS-TCL-01620.306× $7,009.00 quote 5 in stockView
LS-TCL-01630.233× $7,159.00 quote 4 in stockView
LS-TCL-01640.233× $7,159.00 quote 4 in stockView
LS-TCL-01650.196× $7,609.00 quote 4 in stockView
LS-TCL-01660.196× $7,609.00 quote 5 in stockView
LS-TCL-0167 $11,489.00 quote 5 in stockView
LS-TCL-01680.144× $11,489.00 quote 5 in stockView
LS-TCL-01690.115× $16,669.00 quote 3 in stockView
LS-TCL-01700.115× $16,669.00 quote 4 in stockView
LS-TCL-01710.1× $42,869.00 quote 3 in stockView
LS-TCL-01720.1× $42,869.00 quote 2 in stockView
