Telecentric lenses · 23 models · from $889.00

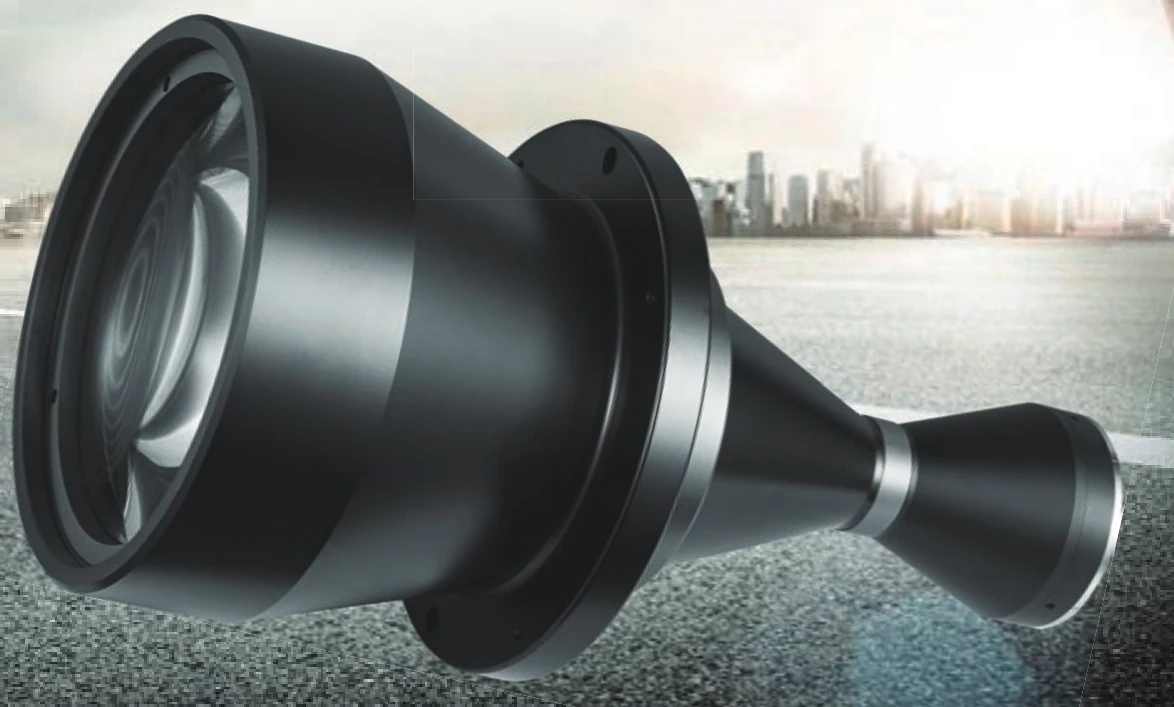

Bi-telecentric lens for 35mm Full cameras (VCM35F series)
The Bi-telecentric lens for 35mm Full cameras (VCM35F series) is a range of 23 telecentric lenses from LumaSpec Vision, from $889.00. It comes in 23 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.147x, WD 465 mm, F or Other-mount, 0.182x, WD 410 mm, 0.23x, WD 330 mm, F or Other-mount, 0.257x, WD 318 mm, 0.292x, WD 301 mm, 0.321x, WD 288 mm, 0.367x, WD 280 mm, F or Other-mount, 0.392x, WD 251 mm, 0.439x, WD 238 mm, F-mount, 0.468x, WD 254 mm, 0.486x, WD 208 mm, F-mount, 0.546x, WD 229 mm, 0.547x, WD 230 mm, F-mount, 0.607x, WD 178 mm, 0.682x, WD 159 mm, 0.686x, WD 187 mm and 7 more |
|---|---|
| Mount | F-mount |
| Image circle | 30-45 mm |
| Type | Bi-telecentric |
| Magnification | 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x |
| Working distance | 65-110 mm, 110-200 mm, 200 mm + |
| Sensor format | APS-H / Full frame |
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 23 models in the Bi-telecentric lens for 35mm Full cameras (VCM35F series)
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-VCM35F-42P-AL | 1.043x, WD 118 mm, F-mount | $889.00 | 3 in stock | View |
| LS-VCM35F-26-AL | 1.503x, WD 72 mm | from $999.00 | 11 in stock | View |
| LS-VCM35F-36-AL | 1.208x, WD 111 mm | from $1,169.00 | 9 in stock | View |
| LS-VCM35F-80P-AL | 0.547x, WD 230 mm, F-mount | $1,199.00 | 2 in stock | View |
| LS-VCM35F-42-AL | 1.035x, WD 119 mm | from $1,279.00 | 8 in stock | View |
| LS-VCM35F-90-AL | 0.486x, WD 208 mm, F-mount | $1,279.00 | 4 in stock | View |
| LS-VCM35F-100P-AL | 0.439x, WD 238 mm, F-mount | $1,349.00 | 5 in stock | View |
| LS-VCM35F-48-AL | 0.911x, WD 128 mm | from $1,379.00 | 14 in stock | View |
| LS-VCM35F-48S-AL | 0.92x, WD 138 mm, F or Other-mount | $1,379.00 | 4 in stock | View |
| LS-VCM35F-56-AL | 0.781x, WD 138 mm | from $1,519.00 | 13 in stock | View |
| LS-VCM35F-64-AL | 0.686x, WD 187 mm | from $1,649.00 | 11 in stock | View |
| LS-VCM35F-64P-AL | 0.682x, WD 159 mm | from $1,649.00 | 8 in stock | View |
| LS-VCM35F-72-AL | 0.607x, WD 178 mm | from $1,789.00 | 10 in stock | View |
| LS-VCM35F-80-AL | 0.546x, WD 229 mm | from $1,929.00 | 13 in stock | View |
| LS-VCM35F-100-AL | 0.468x, WD 254 mm | from $2,169.00 | 12 in stock | View |
| LS-VCM35F-110-AL | 0.392x, WD 251 mm | from $2,479.00 | 11 in stock | View |
| LS-VCM35F-120-AL | 0.367x, WD 280 mm, F or Other-mount | $2,609.00 | 5 in stock | View |
| LS-VCM35F-136-AL | 0.321x, WD 288 mm | from $2,909.00 | 12 in stock | View |
| LS-VCM35F-150-AL | 0.292x, WD 301 mm | from $3,129.00 | 11 in stock | View |
| LS-VCM35F-170-AL | 0.257x, WD 318 mm | from $3,469.00 | 14 in stock | View |
| LS-VCM35F-190-AL | 0.23x, WD 330 mm, F or Other-mount | $3,819.00 | 5 in stock | View |
| LS-VCM35F-240-AL | 0.182x, WD 410 mm | from $4,669.00 | 10 in stock | View |
| LS-VCM35F-300-AL | 0.147x, WD 465 mm, F or Other-mount | $5,699.00 quote | 2 in stock | View |
