Telecentric lenses

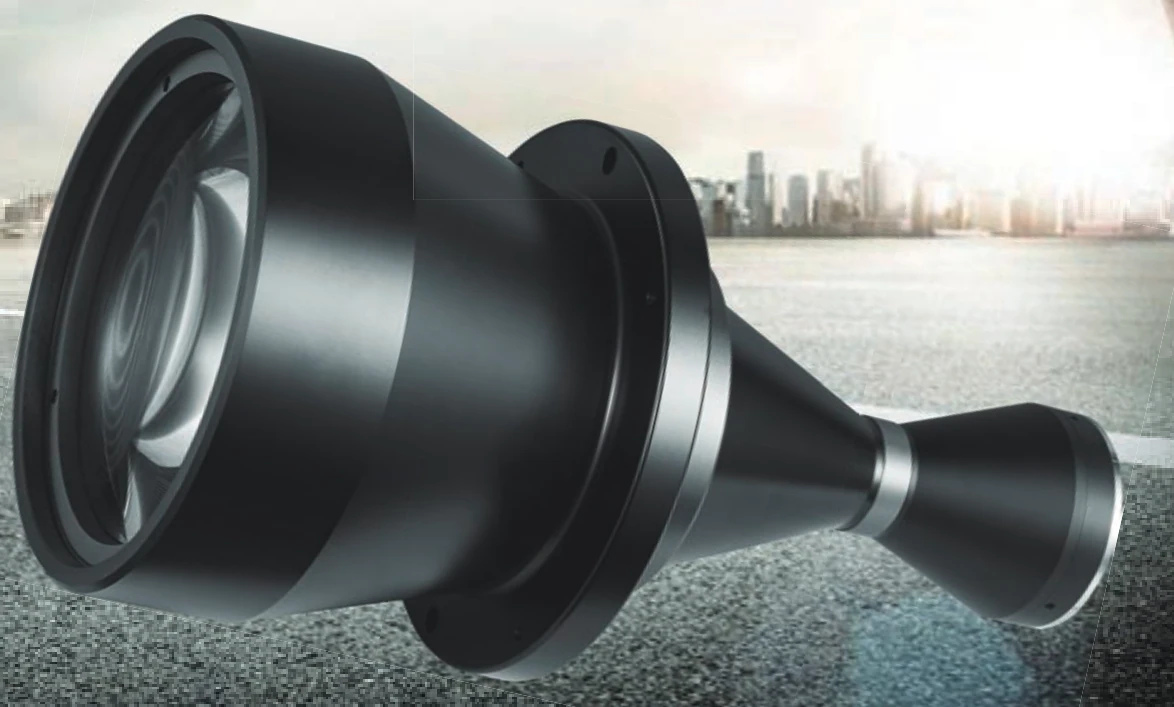

Bi-telecentric lens for 35mm Full cameras (VCM35F series), 1.035x, WD 119 mm (LS-VCM35F-42-AL)
Model LS-VCM35F-42-AL
Bi-telecentric lens series for sensors up to 35 mm full frame (44 mm dia.), F-Mount/Other. Models are named by object field of view (dia. mm); each lists magnification, working distance, F/#, MTF30, depth of field, distortion <0.1% and telecentricity <0.1°.
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
- Compatible with all C mount cameras from 1/2.5" to 1.1", and F/M mount cameras from 4/3" to 59 mm
- Excellent F number, high telecentricity, extremely low distortion, super large DoF
- Each VCM series lens comes with an imaging quality test report
Specifications
| Model | LS-VCM35F-42-AL |
|---|---|
| Max sensor size (dia. mm) | 44(35mm) |
| Distortion (% max) | <0.1 |
| Telecentricity (deg max) | <0.1 |
| Mount (selection chart) | F/M58 |
| FOV range (dia. mm) | 26 - 240 |
| Telecentricity (° max) | <0.1 |
| Mount | F-Mount/Other |
| Detector | 35mm |
| FOV (dia. mm) | 42 |
| Mag. (x) | 1.035 |
| WD (mm) | 119±2 |
| F/# | 20 |
| MTF30 (lp/mm) | >50 |
| DoF (mm) | ±3 |
| I/O (mm) | 365.8 |
| Length (mm) | 200.2 |
| Weight (kg) | 1.3 |
| Mount shown in drawing | F |
| Field of view on 36.17x24.11with KAI29050 (mm) | 32.8 x 24.6 |
| Magnification (x) | 1.035 |
| Working distance (mm) | 119±2 |
| Depth of field (mm) | ±3 |
| Field of view on 36.17x24.11with KAI29050 (mm x mm) | 32.8x24.6 |
| Field of view (dia. mm) | 42 |
| Object-to-image distance I/O (mm) | 365.8 |
| Field of view with 36.17x24.11with KAI29050 (mm) | 32.8x24.6 |
| Model (spec table) | 35F-42-AL |
| Mag | 1.035x |
| FOV | 42mm |
| WD | 119mm |
| Sensor format | 35 mm full frame (44 mm dia.) |
| Aperture | F/20 |
Applications
- Industrial imaging applications (standard FOV 26 to 240 mm)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Bi-telecentric lens for 35mm Full cameras (VCM35F series) series
