Panel PCs
Fanless panel PCs run the inspection software and operator screen in one sealed unit that mounts in the machine door or cabinet - no separate PC, monitor or cooling fan to fail. Check the camera interface (USB 3 or Gigabit Ethernet), the serial ports for the PLC and the panel cut-out before you order.
SOYO series · 1 models · from $1,959.00
Panel PCs
- 13th Gen Intel Core i7-1355U, 32 GB DDR5 RAM, 512 GB SSD, Windows 11 LTSC
- 10.4" 1024 x 768 display with 10-point projected capacitive touch
- Fanless aluminium housing, IP65 front, -10 to 60 C operation
- 2 x Gigabit LAN, 2 x USB 3.0, 2 x USB 2.0, 2 x RS232, HDMI + VGA
- 12-36 V DC input; panel or 75/100 mm VESA mount
| Model | Size | Power | Colours | Price | |
|---|---|---|---|---|---|

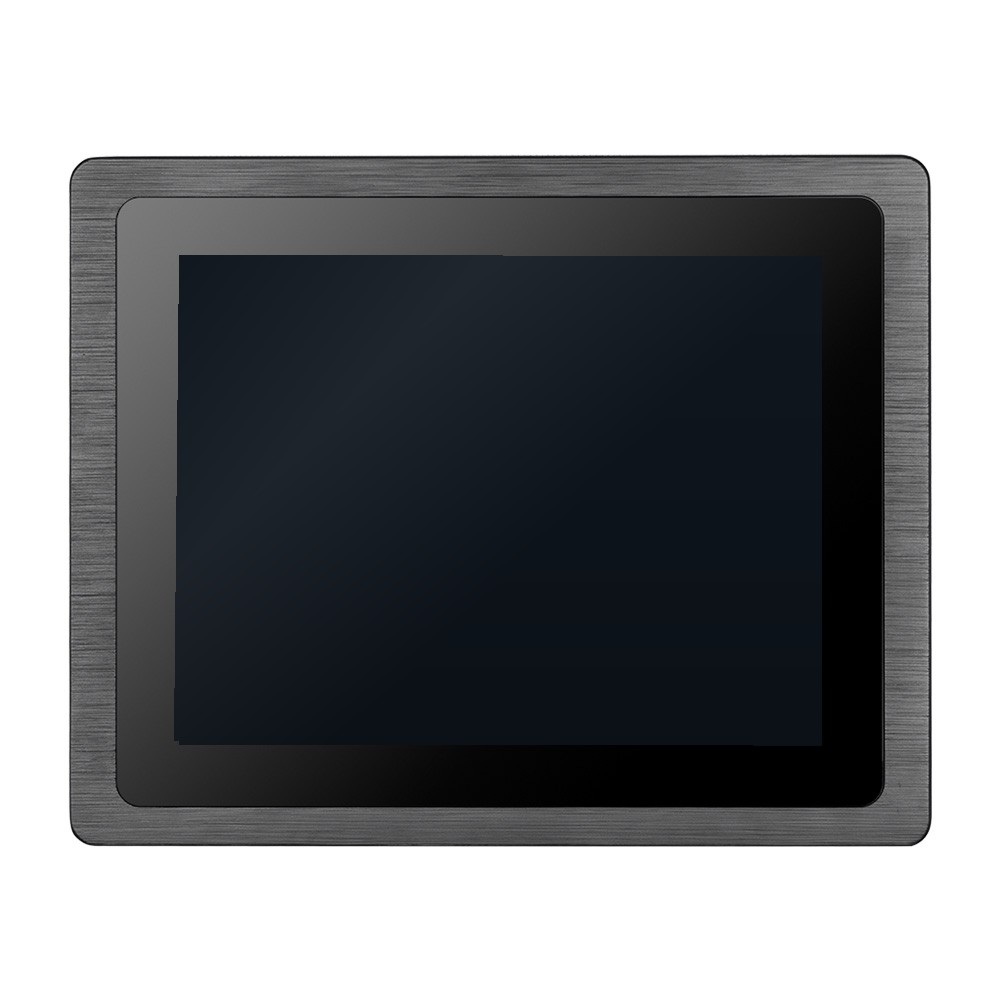

| TPC104-W210-I7 | $1,959.00 | View |
