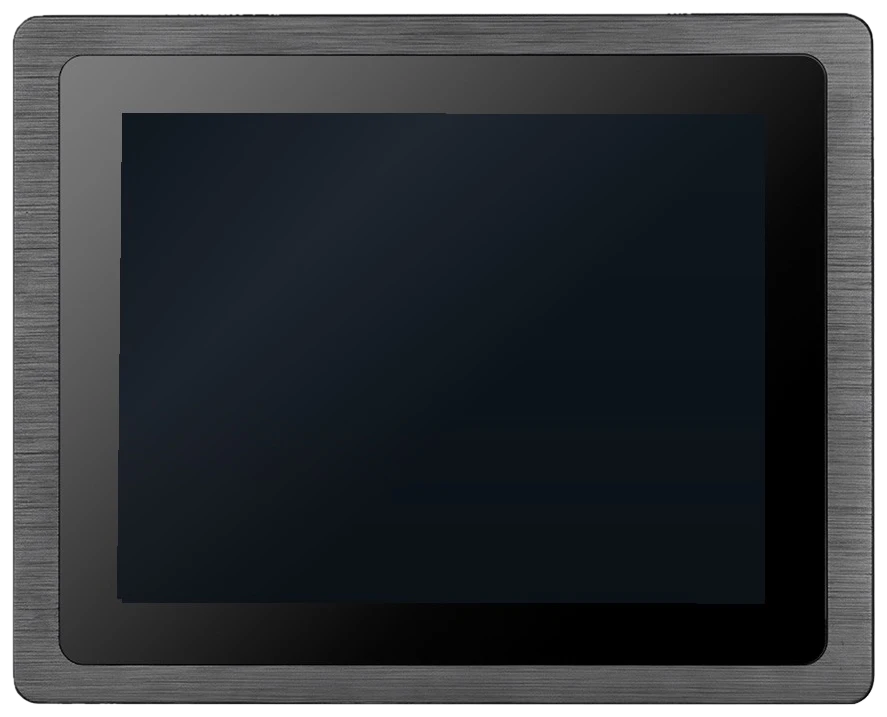

10.4" Fanless Panel PC, Intel Core i7-1355U, 32 GB RAM, 512 GB SSD, Windows 11 LTSC

Panel PCs

10.4" Fanless Panel PC, Intel Core i7-1355U, 32 GB RAM, 512 GB SSD, Windows 11 LTSC

Model TPC104-W210-I7

Fanless 10.4-inch touch panel PC that runs the vision software and operator screen in one IP65-front unit for the machine door or control cabinet. A 13th Gen Intel Core i7-1355U with 32 GB DDR5 RAM and a 512 GB SSD, dual Gigabit Ethernet for GigE cameras and the line network, USB 3.0 for USB3 cameras, and two RS232 ports for the PLC. Ships with Windows 11 LTSC.

$1,959.00 USDIn stock · 69 available
3.86 kg shipping weight · Ships in 2-3 weeks

Price note: because of the recent surge in DDR5 memory costs, the price of this configuration has increased. We apologize for the inconvenience.

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day

Features

  • 13th Gen Intel Core i7-1355U, 32 GB DDR5 RAM, 512 GB SSD, Windows 11 LTSC
  • 10.4" 1024 x 768 display with 10-point projected capacitive touch
  • Fanless aluminium housing, IP65 front, -10 to 60 C operation
  • 2 x Gigabit LAN, 2 x USB 3.0, 2 x USB 2.0, 2 x RS232, HDMI + VGA
  • 12-36 V DC input; panel or 75/100 mm VESA mount

Specifications

Display10.4" TFT LCD, 1024 x 768, 400 cd/m2, 1000:1, 80/80/80/80 viewing angle
Touch10-point projected capacitive, USB
ProcessorIntel Core i7-1355U (13th Gen)
Memory32 GB DDR5
Storage512 GB SSD
Operating systemWindows 11 LTSC
Ethernet2 x Gigabit LAN
USB2 x USB 3.0, 2 x USB 2.0
Serial2 x RS232 (RS485 / RS422 / GPIO optional)
Video out1 x HDMI (up to 1080p), 1 x VGA
Other I/OAudio in/out, SIM slot for an optional 4G module, industrial terminal
WirelessWi-Fi 2.4 / 5 GHz; Bluetooth optional
Power12-36 V DC
CoolingFanless, aluminium housing
ProtectionIP65 front panel
Operating temperature-10 C to 60 C
Storage temperature-20 C to 70 C
Humidity95% non-condensing
Vibration / shockIEC 60068-2-64 random 5-500 Hz; IEC 60068-2-27 half-sine 11 ms
Dimensions288 x 231 x 59.5 mm
Panel cut-out273 x 216 mm
MountingPanel mount; 75 / 100 mm VESA
CertificationsCE, FCC, RoHS
Shipping weight3.86 kg

Display, touch, I/O, power, enclosure and environmental values are from the manufacturer's datasheet for this 10.4-inch enclosure. Processor, memory (32 GB DDR5), storage and operating system are the build configuration. Photos show the standard enclosure; the connector layout of the i7 board may differ slightly. Confirm the cut-out against the drawing before machining.
