Telecentric lenses · 9 models · from $929.00

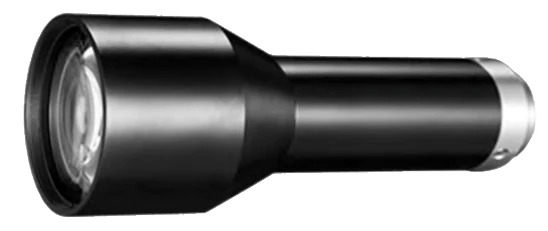

M Series Bi-Telecentric lenses
The M Series Bi-Telecentric lenses is a range of 9 telecentric lenses from LumaSpec Vision, from $929.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.095x, 273 mm WD, 2/3", 0.158x, 178 mm WD, 2/3", 0.178x, 158 mm WD, 2/3", 0.204x, 138 mm WD, 2/3", 0.238x, 128 mm WD, 2/3", 0.271x, 118 mm WD, 2/3", 0.317x, 110 mm WD, 2/3", 0.438x, 73 mm WD, 2/3", 0.500x, 65 mm WD, 2/3" |
|---|---|
| Image circle | 8-11 mm |
| Type | Bi-telecentric |
| Magnification | Under 0.1x, 0.1-0.3x, 0.3-0.6x |
| Working distance | 65-110 mm, 110-200 mm, 200 mm + |
| Mount | C-mount |
| Sensor format | 2/3" |
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to 2/3"
All 9 models in the M Series Bi-Telecentric lenses
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-MBT-05-65 | 0.500x, 65 mm WD, 2/3" | $929.00 | 4 in stock | View |
| LS-MBT-0438-73 | 0.438x, 73 mm WD, 2/3" | $1,029.00 | 3 in stock | View |
| LS-MBT-0317-110 | 0.317x, 110 mm WD, 2/3" | $1,039.00 | 4 in stock | View |
| LS-MBT-0271-118 | 0.271x, 118 mm WD, 2/3" | $1,279.00 | 5 in stock | View |
| LS-MBT-0238-128 | 0.238x, 128 mm WD, 2/3" | $1,379.00 | 4 in stock | View |
| LS-MBT-0204-138 | 0.204x, 138 mm WD, 2/3" | $1,409.00 | 5 in stock | View |
| LS-MBT-0178-158 | 0.178x, 158 mm WD, 2/3" | $1,649.00 | 5 in stock | View |
| LS-MBT-0158-178 | 0.158x, 178 mm WD, 2/3" | $1,689.00 | 3 in stock | View |
| LS-MBT-0095-273 | 0.095x, 273 mm WD, 2/3" | $2,529.00 quote | 4 in stock | View |
