Telecentric lenses

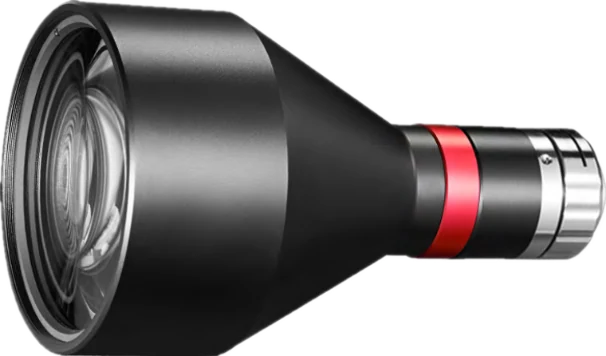

Bi-Telecentric Lens, 0.158x, 178 mm WD, 2/3" (LS-MBT-0158-178)
Model LS-MBT-0158-178
Bi-Telecentric Lens, 0.158x, 178 mm WD, 2/3". High resolution with consistent sharpness across the image Low distortion and high telecentricity for high-precision measurement and positioning
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to 2/3"
Specifications
| Model | LS-MBT-0158-178 |
|---|---|
| Magnification | 0.158 |
| Working distance | 178 mm |
| F-number | F4.9 |
| Image size | 2/3" |
| Depth of field | ±17.6 mm@F11 |
| Distortion | ≤ 0.1% |
| Object-side resolution | 17.6 μm |
| Object-side telecentricity | ≤ 0.1° |
| Connector type | C-Mount |
| Coaxial light | Not supported |
| Dimension | 192.0 mm × Φ94 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the M Series Bi-Telecentric lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-MBT-05-65 | 0.500x, 65 mm WD, 2/3" | $929.00 | 4 in stock | View |
| LS-MBT-0438-73 | 0.438x, 73 mm WD, 2/3" | $1,029.00 | 3 in stock | View |
| LS-MBT-0317-110 | 0.317x, 110 mm WD, 2/3" | $1,039.00 | 4 in stock | View |
| LS-MBT-0271-118 | 0.271x, 118 mm WD, 2/3" | $1,279.00 | 5 in stock | View |
| LS-MBT-0238-128 | 0.238x, 128 mm WD, 2/3" | $1,379.00 | 4 in stock | View |
| LS-MBT-0204-138 | 0.204x, 138 mm WD, 2/3" | $1,409.00 | 5 in stock | View |
| LS-MBT-0178-158 | 0.178x, 158 mm WD, 2/3" | $1,649.00 | 5 in stock | View |
| LS-MBT-0095-273 | 0.095x, 273 mm WD, 2/3" | $2,529.00 | 4 in stock | View |
