Telecentric lenses · 29 models · from $629.00

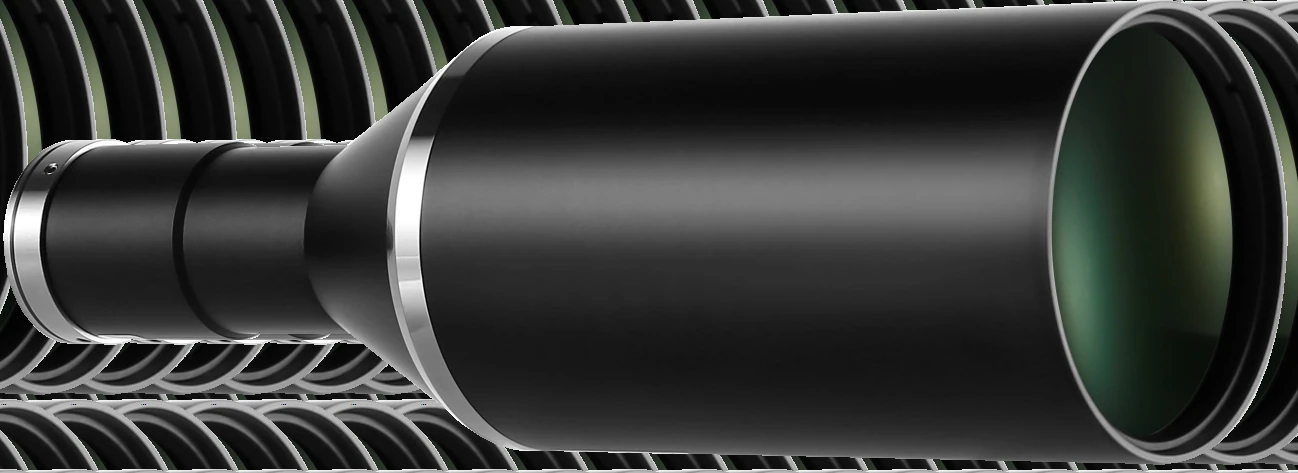

Bi-telecentric lens for 2/3" sensor (X23 series)
The Bi-telecentric lens for 2/3" sensor (X23 series) is a range of 29 telecentric lenses from LumaSpec Vision, from $629.00. It comes in 24 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.053x, WD 372 mm, 2/3", C-mount, 0.06x, WD 398 mm, 2/3", 0.063x, WD 320 mm, 2/3", C-mount, 0.095x, WD 250 mm, 2/3", C-mount, 0.12x, WD 250 mm, 2/3", C-mount, 0.14x, WD 200 mm, 2/3", C-mount, 0.15x, WD 238 mm, 2/3", C-mount, 0.178x, WD 158 mm, 2/3", C-mount, 0.18x, WD 110 mm, 2/3", 0.2x, WD 178 mm, 2/3", C-mount, 0.22x, WD 200 mm, 2/3", C-mount, 0.265x, WD 178 mm, 2/3", C-mount, 0.3x, WD 110 mm, 2/3", C-mount, 0.3x, WD 178 mm, 2/3", C-mount, 0.4x, WD 110 mm, 2/3", 0.5x, WD 110 mm, 2/3", C-mount and 8 more |
|---|---|
| Mount | C-mount |
| Image circle | Up to 8 mm |
| Type | Bi-telecentric |
| Coaxial light | Built-in coaxial light, No coaxial port |
| Magnification | Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x + |
| Working distance | 110-200 mm, 200 mm + |
| Sensor format | 2/3" |
Features
- Maximum support for 2/3" dia. 11 mm target face camera
- Excellent bilateral telecentric optical path, ultra low distortion design
- Large depth of field design for high and low difference imaging products
- High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
- Lightweight fastening structure designed to perform stably at high speed
- Ultra high differentiation
- Built-in coaxial versions (C suffix)
- WD=110mm, Magnification 0.3X, DOF 7mm, Distortion TV<0.03%.
Typical uses
- Imaging products with high and low differences (large depth of field)
All 29 models in the Bi-telecentric lens for 2/3" sensor (X23 series)
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-HF110-2X23 | 2x, WD 110 mm, 2/3", C-mount | $629.00 | 2 in stock | View |
| LS-HF110-2X23C | WD 110 mm, 2/3", C-mount | $629.00 | 2 in stock | View |
| LS-HF110-15X23 | 1.5x, WD 110 mm, 2/3", C-mount | $649.00 | 5 in stock | View |
| LS-HF110-15X23C | 1.5x, WD 110 mm, 2/3", C-mount | $649.00 | 4 in stock | View |
| LS-HF110-1X23 | 1x, WD 110 mm, 2/3", C-mount | $699.00 | 4 in stock | View |
| LS-HF110-1X23C | 1x, WD 110 mm, 2/3", C-mount | $699.00 | 3 in stock | View |
| LS-HF110-08X23 | 0.8x, WD 110 mm, 2/3", C-mount | $739.00 | 3 in stock | View |
| LS-HF110-08X23C | 0.8x, WD 110 mm, 2/3", C-mount | $739.00 | 5 in stock | View |
| LS-HF110-07X23 | 0.7x, WD 110 mm, 2/3" | $819.00 | 4 in stock | View |
| LS-HF110-05X23 | 0.5x, WD 110 mm, 2/3", C-mount | $839.00 | 5 in stock | View |
| LS-HF110-05X23C | 0.5x, WD 110 mm, 2/3", C-mount | $839.00 | 3 in stock | View |
| LS-HF178-05X23 | 0.5x, WD 178 mm, 2/3", C-mount | $839.00 | 2 in stock | View |
| LS-HF110-04X23 | 0.4x, WD 110 mm, 2/3" | $1,029.00 | 3 in stock | View |
| LS-HF110-03X23 | 0.3x, WD 110 mm, 2/3", C-mount | $1,039.00 | 3 in stock | View |
| LS-HF110-03X23C | 0.3x, WD 110 mm, 2/3", C-mount | $1,039.00 | 4 in stock | View |
| LS-HF178-03X23 | 0.3x, WD 178 mm, 2/3", C-mount | $1,039.00 | 3 in stock | View |
| LS-HF178-0265X23 | 0.265x, WD 178 mm, 2/3", C-mount | $1,099.00 | 3 in stock | View |
| LS-HF200-022X23 | 0.22x, WD 200 mm, 2/3", C-mount | $1,209.00 | 4 in stock | View |
| LS-HF178-02X23 | 0.2x, WD 178 mm, 2/3", C-mount | $1,279.00 | 2 in stock | View |
| LS-HF238-L90-015X23 | 0.15x, WD 238 mm, 2/3", C-mount | $1,519.00 | 2 in stock | View |
| LS-HF200-014X23 | 0.14x, WD 200 mm, 2/3", C-mount | $1,579.00 | 3 in stock | View |
| LS-HF110-018X23 | 0.18x, WD 110 mm, 2/3" | $1,599.00 | 4 in stock | View |
| LS-HF158-0718X23 | 0.178x, WD 158 mm, 2/3", C-mount | $1,619.00 | 5 in stock | View |
| LS-HF250-012X23 | 0.12x, WD 250 mm, 2/3", C-mount | $1,759.00 | 2 in stock | View |
| LS-HF250-0095X23 | 0.095x, WD 250 mm, 2/3", C-mount | $2,069.00 | 3 in stock | View |
| LS-HF290-0078X23 | 0.78x, WD 290 mm, 2/3", C-mount | $2,399.00 | 3 in stock | View |
| LS-HF320-0063X23 | 0.063x, WD 320 mm, 2/3", C-mount | $2,839.00 | 2 in stock | View |
| LS-HF398-006X23 | 0.06x, WD 398 mm, 2/3" | $3,699.00 | 5 in stock | View |
| LS-HF372-0053X23 | 0.053x, WD 372 mm, 2/3", C-mount | $4,119.00 | 4 in stock | View |
