Telecentric lenses

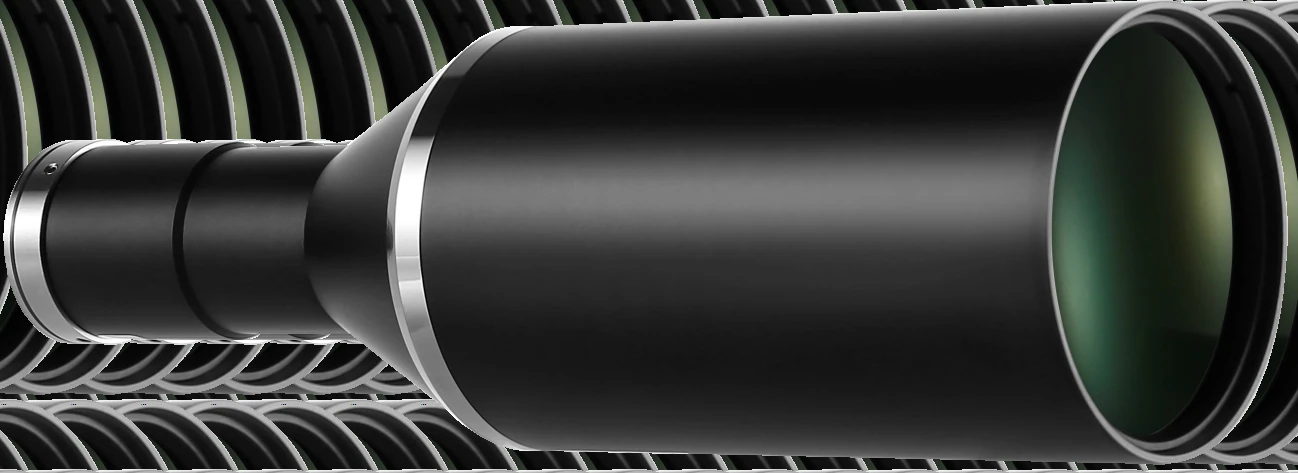

Bi-telecentric lens for 2/3" sensor (X23 series), 0.265x, WD 178 mm, 2/3", C-mount (LS-HF178-0265X23)
Model LS-HF178-0265X23
Bi-telecentric C-mount lens supporting 2/3" (dia. 11 mm) target-face cameras, with an ultra-low-distortion bilateral telecentric optical path, large depth of field and a hardware measurement error below 0.3 pixel over the full field of view; built-in coaxial versions (C suffix).
Features
- Maximum support for 2/3" dia. 11 mm target face camera
- Excellent bilateral telecentric optical path, ultra low distortion design
- Large depth of field design for high and low difference imaging products
- High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
- Lightweight fastening structure designed to perform stably at high speed
- Ultra high differentiation
- Built-in coaxial versions (C suffix)
Specifications
| Model | LS-HF178-0265X23 |
|---|---|
| Mount | C |
| Sensor size | 2/3" dia.11mm |
| Lighting mode | non-coaxial |
| Magnification (X) | 0.265 |
| Working distance (mm) | 178 |
| DOF (mm) | 9mm |
| Iris (F) | F6 |
| MTF>0.3 (LP/mm) | 160 |
| Telecentricity (°) | <0.01° |
| Optical distortion (%) | <0.03% |
| View distance maximum (mm) | dia.41.5 |
| View distance 1/2.5" (5.7x4.2) (mm) | 21.5x15.8 |
| View distance 1/2.3" (6.4x4.5) (mm) | 24.1x16.9 |
| View distance 2/3" (8.4x7.1) (mm) | 31.6x26.7 |
| Sensor format | 2/3" |
| Aperture | F6 |
| Field of view | 31.6x26.7 mm (on 2/3" sensor) |
| Shipping weight | 0.85 kg |
Applications
- Imaging products with high and low differences (large depth of field)
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the Bi-telecentric lens for 2/3" sensor (X23 series) series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-HF110-2X23 | 2x, WD 110 mm, 2/3", C-mount | $289.00 | 2 in stock | View |
| LS-HF110-2X23C | WD 110 mm, 2/3", C-mount | $289.00 | 2 in stock | View |
| LS-HF110-15X23 | 1.5x, WD 110 mm, 2/3", C-mount | $299.00 | 5 in stock | View |
| LS-HF110-15X23C | 1.5x, WD 110 mm, 2/3", C-mount | $299.00 | 4 in stock | View |
| LS-HF110-1X23 | 1x, WD 110 mm, 2/3", C-mount | $319.00 | 4 in stock | View |
| LS-HF110-1X23C | 1x, WD 110 mm, 2/3", C-mount | $319.00 | 3 in stock | View |
| LS-HF110-08X23 | 0.8x, WD 110 mm, 2/3", C-mount | $329.00 | 3 in stock | View |
| LS-HF110-08X23C | 0.8x, WD 110 mm, 2/3", C-mount | $329.00 | 5 in stock | View |
| LS-HF110-05X23 | 0.5x, WD 110 mm, 2/3", C-mount | $369.00 | 5 in stock | View |
| LS-HF110-05X23C | 0.5x, WD 110 mm, 2/3", C-mount | $369.00 | 3 in stock | View |
| LS-HF178-05X23 | 0.5x, WD 178 mm, 2/3", C-mount | $369.00 | 2 in stock | View |
| LS-HF110-03X23 | 0.3x, WD 110 mm, 2/3", C-mount | $429.00 | 3 in stock | View |
| LS-HF110-03X23C | 0.3x, WD 110 mm, 2/3", C-mount | $429.00 | 4 in stock | View |
| LS-HF178-03X23 | 0.3x, WD 178 mm, 2/3", C-mount | $429.00 | 3 in stock | View |
| LS-HF200-022X23 | 0.22x, WD 200 mm, 2/3", C-mount | $489.00 | 4 in stock | View |
| LS-HF178-02X23 | 0.2x, WD 178 mm, 2/3", C-mount | $509.00 | 2 in stock | View |
| LS-HF238-L90-015X23 | 0.15x, WD 238 mm, 2/3", C-mount | $589.00 | 2 in stock | View |
| LS-HF200-014X23 | 0.14x, WD 200 mm, 2/3", C-mount | $619.00 | 3 in stock | View |
| LS-HF250-012X23 | 0.12x, WD 250 mm, 2/3", C-mount | $679.00 | 2 in stock | View |
| LS-HF250-0095X23 | 0.095x, WD 250 mm, 2/3", C-mount | $779.00 | 3 in stock | View |
| LS-HF290-0078X23 | 0.78x, WD 290 mm, 2/3", C-mount | $889.00 | 3 in stock | View |
| LS-HF320-0063X23 | 0.063x, WD 320 mm, 2/3", C-mount | $1,039.00 | 2 in stock | View |
