Home / Lenses / Telecentric lenses / Bi-telecentric lens for 1/1.8" cameras (VCM118 series) - B variant (VCM118B)

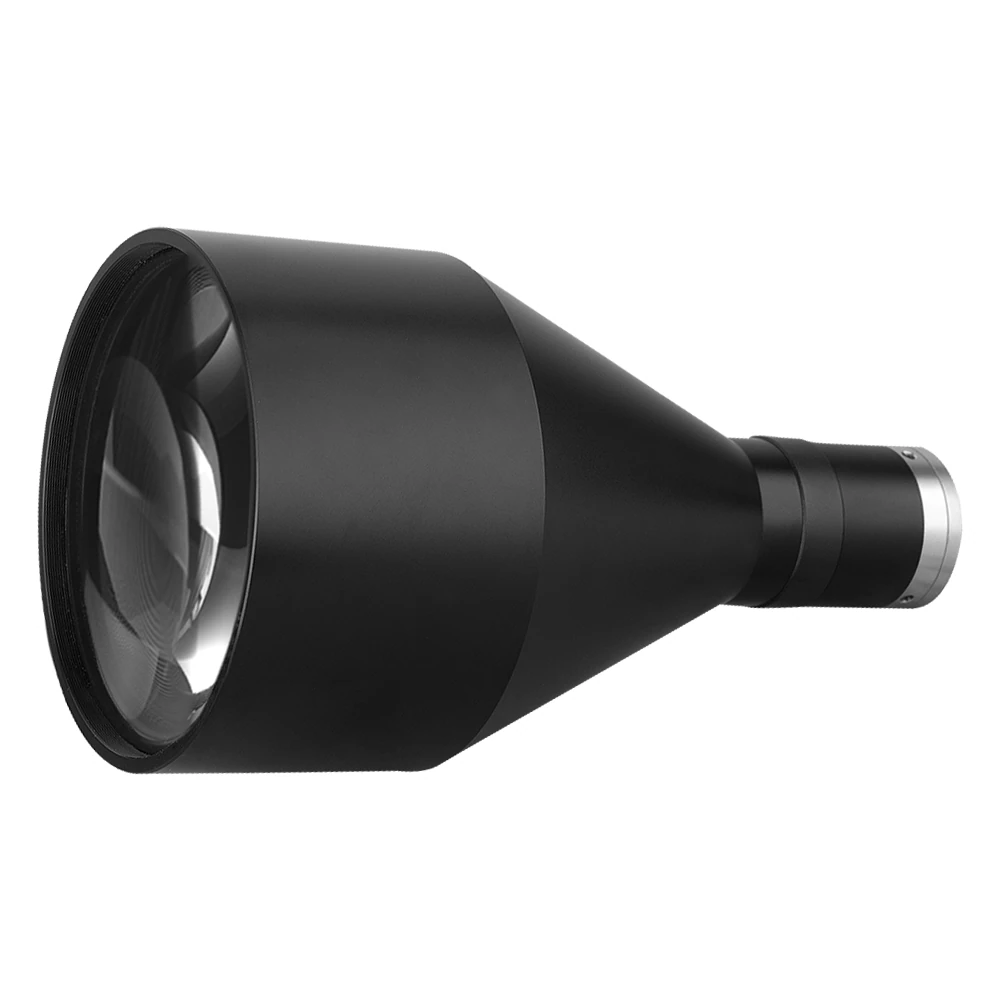

Bi-telecentric lens for 1/1.8" cameras (VCM118 series) - B variant (VCM118B)

Telecentric lenses · 15 models · from $1,169.00

Bi-telecentric lens for 1/1.8" cameras (VCM118 series) - B variant (VCM118B)

The Bi-telecentric lens for 1/1.8" cameras (VCM118 series) - B variant (VCM118B) is a range of 15 telecentric lenses from LumaSpec Vision, from $1,169.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Series datasheet (PDF)

Building a full system? Configure a camera, lens, light and controller that fit together →

The series at a glance

Sizes / versions	0.037x, WD 410 mm, 1/1.8", C-mount, 0.053x, WD 318 mm, 1/1.8", C-mount, 0.06x, WD 301 mm, 1/1.8", C-mount, 0.066x, WD 288 mm, 1/1.8", C-mount, 0.081x, WD 251 mm, 1/1.8", C-mount, 0.091x, WD 238 mm, 1/1.8", C-mount, 0.1x, WD 208 mm, 1/1.8", C-mount, 0.113x, WD 230 mm, 1/1.8", C-mount, 0.125x, WD 178 mm, 1/1.8", C-mount, 0.14x, WD 159 mm, 1/1.8", C-mount, 0.141x, WD 187 mm, 1/1.8", C-mount, 0.161x, WD 138 mm, 1/1.8", C-mount, 0.187x, WD 128 mm, 1/1.8", C-mount, 0.215x, WD 118 mm, 1/1.8", C-mount, 0.25x, WD 111 mm, 1/1.8", C-mount
Mount	C-mount
Image circle	8-11 mm
Type	Bi-telecentric
Magnification	Under 0.1x, 0.1-0.3x
Working distance	110-200 mm, 200 mm +
Sensor format	1/1.8" - 1/1.56"

All 15 models in the Bi-telecentric lens for 1/1.8" cameras (VCM118 series) - B variant (VCM118B)

Model	Size	Price	Availability	Link
LS-VCM118B-36-AL	0.25x, WD 111 mm, 1/1.8", C-mount	$1,169.00	3 in stock	View
LS-VCM118B-42P-AL	0.215x, WD 118 mm, 1/1.8", C-mount	$1,279.00	2 in stock	View
LS-VCM118B-48-AL	0.187x, WD 128 mm, 1/1.8", C-mount	$1,379.00	5 in stock	View
LS-VCM118B-56-AL	0.161x, WD 138 mm, 1/1.8", C-mount	$1,519.00	3 in stock	View
LS-VCM118B-64-AL	0.141x, WD 187 mm, 1/1.8", C-mount	$1,649.00	5 in stock	View
LS-VCM118B-64P-AL	0.14x, WD 159 mm, 1/1.8", C-mount	$1,649.00	4 in stock	View
LS-VCM118B-72-AL	0.125x, WD 178 mm, 1/1.8", C-mount	$1,789.00	2 in stock	View
LS-VCM118B-80P-AL	0.113x, WD 230 mm, 1/1.8", C-mount	$1,929.00	2 in stock	View
LS-VCM118B-90-AL	0.1x, WD 208 mm, 1/1.8", C-mount	$2,099.00	4 in stock	View
LS-VCM118B-100P-AL	0.091x, WD 238 mm, 1/1.8", C-mount	$2,269.00	4 in stock	View
LS-VCM118B-110-AL	0.081x, WD 251 mm, 1/1.8", C-mount	$2,459.00	4 in stock	View
LS-VCM118B-136-AL	0.066x, WD 288 mm, 1/1.8", C-mount	$2,889.00	2 in stock	View
LS-VCM118B-150-AL	0.06x, WD 301 mm, 1/1.8", C-mount	$3,129.00	5 in stock	View
LS-VCM118B-170-AL	0.053x, WD 318 mm, 1/1.8", C-mount	$3,469.00	3 in stock	View
LS-VCM118B-240-AL	0.037x, WD 410 mm, 1/1.8", C-mount	$4,669.00	5 in stock	View
