Telecentric lenses · 11 models · from $999.00

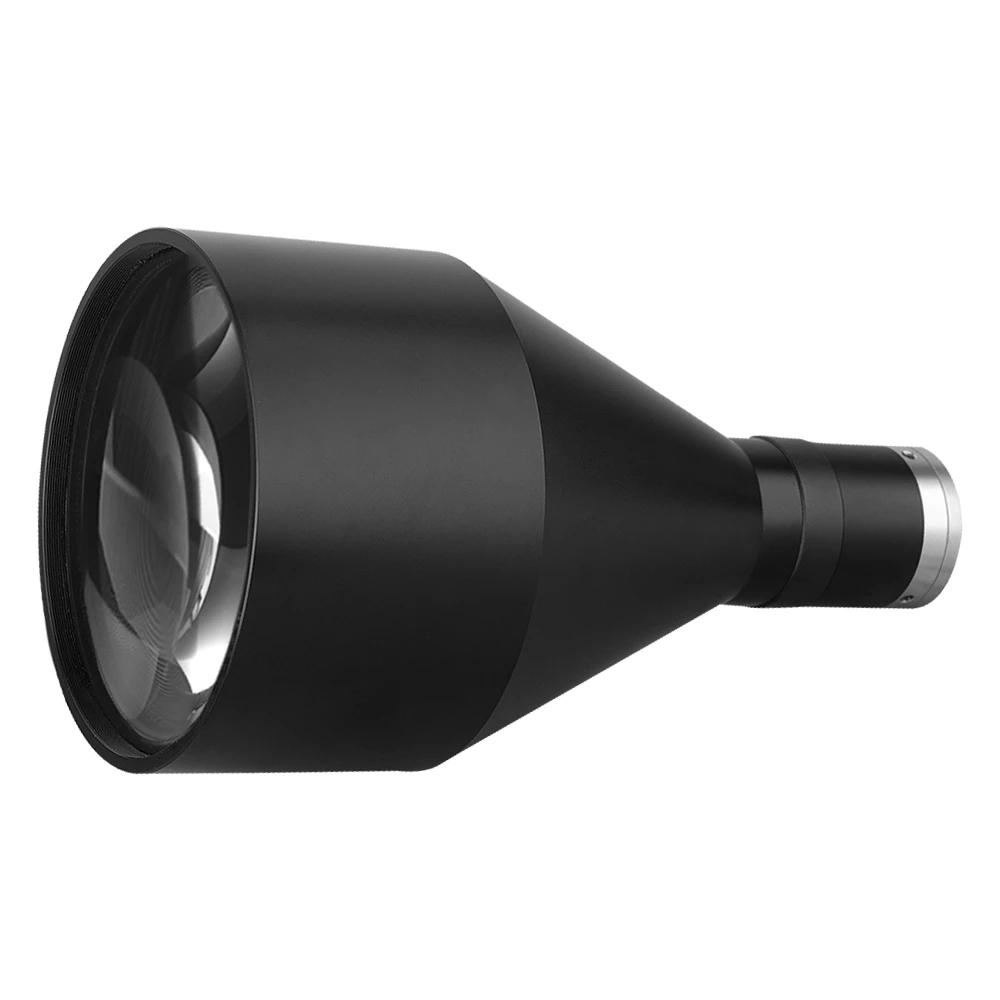

Bi-telecentric lens for 1/2.3" cameras (VCM120 series) - B variant (VCM120B)
The Bi-telecentric lens for 1/2.3" cameras (VCM120 series) - B variant (VCM120B) is a range of 11 telecentric lenses from LumaSpec Vision, from $999.00. It comes in 11 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.08x, WD 238 mm, 1/2", C-mount, 0.09x, WD 208 mm, 1/2", C-mount, 0.1x, WD 230 mm, 1/2", C-mount, 0.111x, WD 178 mm, 1/2", C-mount, 0.124x, WD 159 mm, 1/2", C-mount, 0.125x, WD 187 mm, 1/2", C-mount, 0.143x, WD 138 mm, 1/2", C-mount, 0.166x, WD 128 mm, 1/2", C-mount, 0.19x, WD 118 mm, 1/2", C-mount, 0.221x, WD 111 mm, 1/2", C-mount, 0.308x, WD 72 mm, 1/2", C-mount |
|---|---|
| Mount | C-mount |
| Image circle | Up to 8 mm |
| Type | Bi-telecentric |
| Magnification | Under 0.1x, 0.1-0.3x, 0.3-0.6x |
| Working distance | 65-110 mm, 110-200 mm, 200 mm + |
| Sensor format | 1/2" |
All 11 models in the Bi-telecentric lens for 1/2.3" cameras (VCM120 series) - B variant (VCM120B)
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-VCM120B-26-AL | 0.308x, WD 72 mm, 1/2", C-mount | $999.00 | 2 in stock | View |
| LS-VCM120B-36-AL | 0.221x, WD 111 mm, 1/2", C-mount | $1,169.00 | 2 in stock | View |
| LS-VCM120B-42P-AL | 0.19x, WD 118 mm, 1/2", C-mount | $1,279.00 | 4 in stock | View |
| LS-VCM120B-48-AL | 0.166x, WD 128 mm, 1/2", C-mount | $1,379.00 | 3 in stock | View |
| LS-VCM120B-56-AL | 0.143x, WD 138 mm, 1/2", C-mount | $1,519.00 | 3 in stock | View |
| LS-VCM120B-64P-AL | 0.124x, WD 159 mm, 1/2", C-mount | $1,649.00 | 5 in stock | View |
| LS-VCM120B-64-AL | 0.125x, WD 187 mm, 1/2", C-mount | $1,649.00 | 3 in stock | View |
| LS-VCM120B-72-AL | 0.111x, WD 178 mm, 1/2", C-mount | $1,789.00 | 5 in stock | View |
| LS-VCM120B-80P-AL | 0.1x, WD 230 mm, 1/2", C-mount | $1,929.00 | 5 in stock | View |
| LS-VCM120B-90-AL | 0.09x, WD 208 mm, 1/2", C-mount | $2,099.00 | 5 in stock | View |
| LS-VCM120B-100P-AL | 0.08x, WD 238 mm, 1/2", C-mount | $2,269.00 | 2 in stock | View |
