Telecentric lenses · 51 models · from $569.00

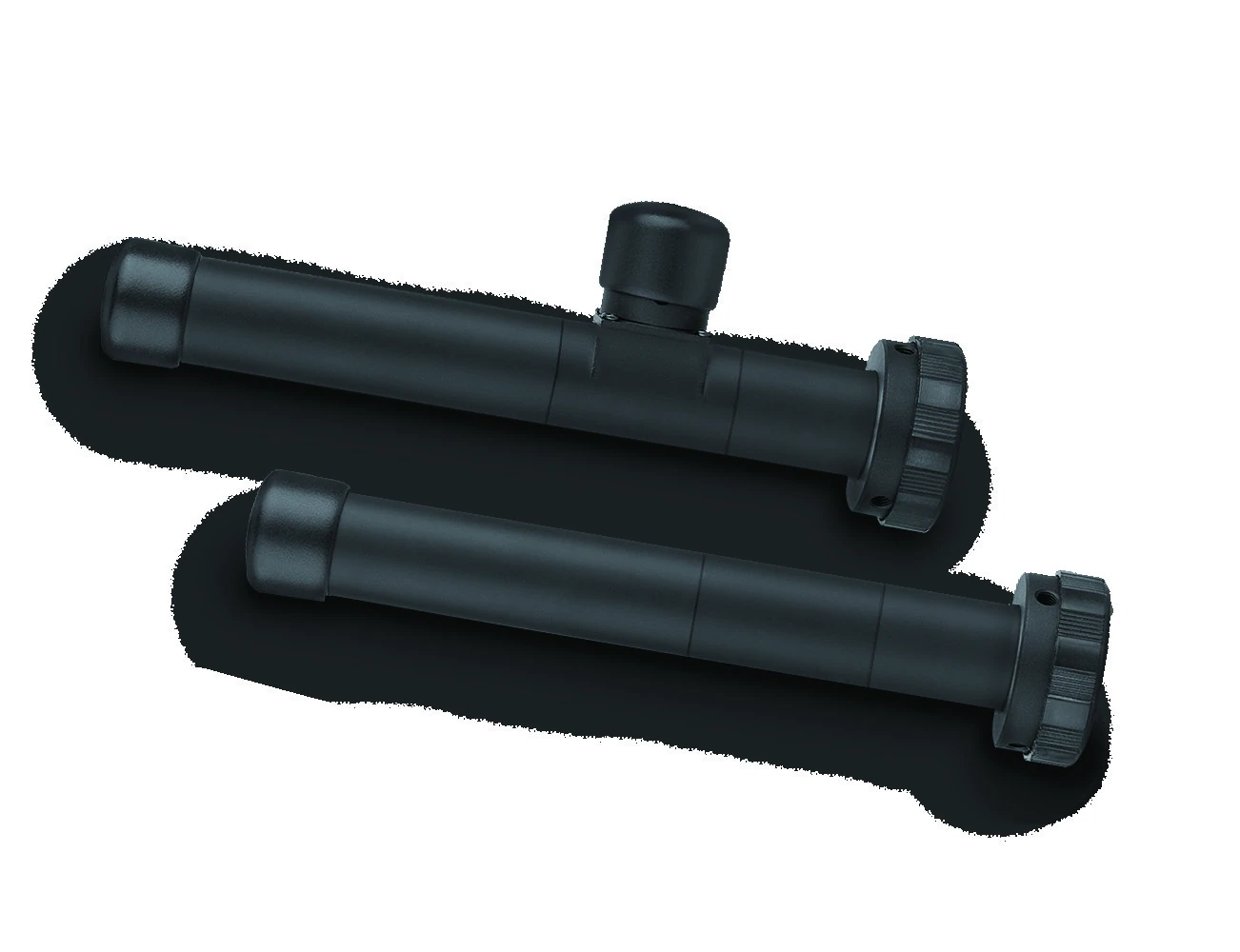

Standard / fixed magnification telecentric lens (VWL)
The Standard / fixed magnification telecentric lens (VWL) is a range of 51 telecentric lenses from LumaSpec Vision, from $569.00. It comes in 30 sizes or versions. Every model below has its own page with full specifications, drawings and price.
Building a full system? Configure a camera, lens, light and controller that fit together →
The series at a glance
| Sizes / versions | 0.5x, WD 110 mm, 1/2", C-Mount, 0.5x, WD 250 mm, 1/2", C-Mount, 0.6x, WD 65 mm, 1/1.8", C-Mount, 0.8x, WD 130 mm, 1/2", C-Mount, 0.8x, WD 150 mm, 1/3", C-Mount, 0.8x, WD 250 mm, 1/2", C-Mount, 0.8x, WD 65 mm, 1/2", C-Mount, 1x, WD 113 mm, 1/2", C-Mount, 1x, WD 150 mm, 1/2", C-Mount, 1x, WD 250 mm, 1/2", C-Mount, 1x, WD 250 mm, 1/3", C-Mount, 1x, WD 65 mm, 1/2", C-Mount, 1.5x, WD 110 mm, 1/3", C-Mount, 1.5x, WD 150 mm, 1/2", C-Mount, 1.5x, WD 250 mm, 1/2", C-Mount, 1.5x, WD 250 mm, 1/3", C-Mount and 14 more |
|---|---|
| Mount | C-mount |
| Image circle | Up to 8 mm, 8-11 mm |
| Type | Object-side telecentric |
| Coaxial light | Built-in coaxial light, No coaxial port |
| Magnification | 0.3-0.6x, 0.6-1x, 1-2x, 2x + |
| Working distance | 65-110 mm, 110-200 mm, 200 mm + |
| Sensor format | 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56" |
Features
- The required magnification and working distance can be accommodated to meet your individual requirements by using an optional closed-up ring adapter.
- Compact design with 16mm diameter, ideal for limited space
- Ideal for manufacturing equipment
- VWH or VWK series available for Megapixel camera or high-level camera.
All 51 models in the Standard / fixed magnification telecentric lens (VWL)
| Model | Size | Price | Availability | Link |
|---|---|---|---|---|
| LS-VWL60-65AT | 6x, WD 65 mm, 1/2", C-Mount | $569.00 | 3 in stock | View |
| LS-VWL60-65CT | 6x, WD 65 mm, 1/2", C-Mount | $569.00 | 2 in stock | View |
| LS-VWL40-110A | 4x, WD 110 mm, 1/2", C-Mount | $579.00 | 5 in stock | View |
| LS-VWL40-110C | 4x, WD 110 mm, 1/2", C-Mount | $579.00 | 4 in stock | View |
| LS-VWL40-150A | 4x, WD 150 mm, 1/2", C-Mount | $579.00 | 3 in stock | View |
| LS-VWL40-150C | 4x, WD 150 mm, 1/2", C-Mount | $579.00 | 5 in stock | View |
| LS-VWL40-65A | 4x, WD 65 mm, 1/2", C-Mount | $579.00 | 5 in stock | View |
| LS-VWL40-65C | 4x, WD 65 mm, 1/2", C-Mount | $579.00 | 3 in stock | View |
| LS-VWL15-110AN | 1.5x, WD 110 mm, 1/3", C-Mount | $589.00 | 5 in stock | View |
| LS-VWL15-110CN | 1.5x, WD 110 mm, 1/3", C-Mount | $589.00 | 2 in stock | View |
| LS-VWL30-110AT | 3x, WD 110 mm, 1/2", C-Mount | $589.00 | 5 in stock | View |
| LS-VWL30-110CT | 3x, WD 110 mm, 1/2", C-Mount | $589.00 | 3 in stock | View |
| LS-VWL30-150AT | 3x, WD 150 mm, 1/2", C-Mount | $589.00 | 5 in stock | View |
| LS-VWL30-150CT | 3x, WD 150 mm, 1/2", C-Mount | $589.00 | 3 in stock | View |
| LS-VWL30-65A | 3x, WD 65 mm, 1/2", C-Mount | $589.00 | 2 in stock | View |
| LS-VWL30-65C | 3x, WD 65 mm, 1/2", C-Mount | $589.00 | 4 in stock | View |
| LS-VWL20-250C | 2x, WD 250 mm, 1/3", C-Mount | $599.00 | 5 in stock | View |
| LS-VWL25-110A | 2.5x, WD 110 mm, 1/2", C-Mount | $599.00 | 4 in stock | View |
| LS-VWL25-110C | 2.5x, WD 110 mm, 1/2", C-Mount | $599.00 | 3 in stock | View |
| LS-VWL15-250C | 1.5x, WD 250 mm, 1/3", C-Mount | $609.00 | 4 in stock | View |
| LS-VWL20-110ATS | 2x, WD 110 mm, 1/2", C-Mount | $609.00 | 2 in stock | View |
| LS-VWL20-110CTS | 2x, WD 110 mm, 1/2", C-Mount | $609.00 | 3 in stock | View |
| LS-VWL20-150AT | 2x, WD 150 mm, 1/2", C-Mount | $609.00 | 5 in stock | View |
| LS-VWL20-150CT | 2x, WD 150 mm, 1/2", C-Mount | $609.00 | 3 in stock | View |
| LS-VWL20-250A | 2x, WD 250 mm, 1/2", C-Mount | $609.00 | 3 in stock | View |
| LS-VWL20-65AT | 2x, WD 65 mm, 1/2", C-Mount | $609.00 | 2 in stock | View |
| LS-VWL20-65CT | 2x, WD 65 mm, 1/2", C-Mount | $609.00 | 2 in stock | View |
| LS-VWL15-150AT | 1.5x, WD 150 mm, 1/2", C-Mount | $629.00 | 2 in stock | View |
| LS-VWL15-150CT | 1.5x, WD 150 mm, 1/2", C-Mount | $629.00 | 3 in stock | View |
| LS-VWL15-250A | 1.5x, WD 250 mm, 1/2", C-Mount | $629.00 | 5 in stock | View |
| LS-VWL15-65AT | 1.5x, WD 65 mm, 1/2", C-Mount | $629.00 | 3 in stock | View |
| LS-VWL15-65CT | 1.5x, WD 65 mm, 1/2", C-Mount | $629.00 | 4 in stock | View |
| LS-VWL10-250C | 1x, WD 250 mm, 1/3", C-Mount | $639.00 | 5 in stock | View |
| LS-VWL08-150A | 0.8x, WD 150 mm, 1/3", C-Mount | $659.00 | 4 in stock | View |
| LS-VWL10-110AT | 1x, WD 113 mm, 1/2", C-Mount | $669.00 | 4 in stock | View |
| LS-VWL10-110CT | 1x, WD 113 mm, 1/2", C-Mount | $669.00 | 4 in stock | View |
| LS-VWL10-150AT | 1x, WD 150 mm, 1/2", C-Mount | $669.00 | 5 in stock | View |
| LS-VWL10-150CT | 1x, WD 150 mm, 1/2", C-Mount | $669.00 | 5 in stock | View |
| LS-VWL10-250A | 1x, WD 250 mm, 1/2", C-Mount | $669.00 | 4 in stock | View |
| LS-VWL10-65ATN | 1x, WD 65 mm, 1/2", C-Mount | $669.00 | 2 in stock | View |
| LS-VWL10-65CTN | 1x, WD 65 mm, 1/2", C-Mount | $669.00 | 5 in stock | View |
| LS-VWL08-130AT | 0.8x, WD 130 mm, 1/2", C-Mount | $699.00 | 4 in stock | View |
| LS-VWL08-130CT | 0.8x, WD 130 mm, 1/2", C-Mount | $699.00 | 5 in stock | View |
| LS-VWL08-250A | 0.8x, WD 250 mm, 1/2", C-Mount | $699.00 | 3 in stock | View |
| LS-VWL08-65AT | 0.8x, WD 65 mm, 1/2", C-Mount | $699.00 | 2 in stock | View |
| LS-VWL08-65CT | 0.8x, WD 65 mm, 1/2", C-Mount | $699.00 | 5 in stock | View |
| LS-VWL06-65AT | 0.6x, WD 65 mm, 1/1.8", C-Mount | $759.00 | 3 in stock | View |
| LS-VWL06-65CT | 0.6x, WD 65 mm, 1/1.8", C-Mount | $759.00 | 2 in stock | View |
| LS-VWL05-110AT | 0.5x, WD 110 mm, 1/2", C-Mount | $779.00 | 2 in stock | View |
| LS-VWL05-110CT | 0.5x, WD 110 mm, 1/2", C-Mount | $779.00 | 5 in stock | View |
| LS-VWL05-250A | 0.5x, WD 250 mm, 1/2", C-Mount | $779.00 | 4 in stock | View |
